- Page 1 LX-318C USER MANUAL V.12.11 Lynx Pro Audio S.L. Valencia, Spain www.lynxproaudio.com - info@lynxproaudio.com...
- Page 2 CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION OF ELECTRICAL EQUIPMENT CE CERTIFICACTION, EUROPEAN PRODUCT RoHS Directive 2002/95/EC This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2012. All rights reserved.
-
Page 3: Table Of Contents
CONTENTS - SAFETY PRECAUTIONS - CABINET INTRO SPECIFICATIONS BACK PANEL CONNECTORS AND CONNECTIONS - CONFIGURING THE CABINET DSP OPTIONS PRESET LIST CONFIGURATION PANEL SELECT AND RUN PRESETS CARDIOID OR OMNIDIRECTIONAL USE ONLINE CONTROL SYSTEM ETHERNET CONFIGURATION - SOFTWARE, RAINBOW - ACCESSORIES - GUARANTEE... - Page 4 When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. - Delicate Material.
-
Page 5: Specifications

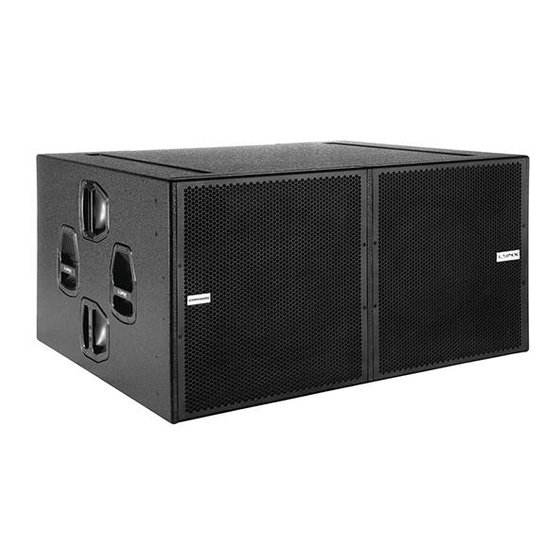

LX-318C INTRODUCTION To facilitate, correct and reliable use of the Lynx LX-318C we have designed this instruction manual. Please read the manual carefully before proceeding to install the system. When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. -
Page 6: Back Panel
2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 7 CAUTION: Do not connect or N - Neutral disconnect the AC Power connectors under load. - Earth CONNECTION EXAMPLE: 4 LX-318C CABINETS Connect to AC output Connect to signal output Connect to AC output LYNX Pro Audio S.L. - Valencia, Spain -...
-
Page 8: Configuring The Cabinet Dsp Options
You must apply the desired configuration in each one cabinet. This is done via the buttons located on the back panel of the cabinet and requires electrical power to work. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 9: Configuration Panel
LX-318C Configuring the Cabinet DSP options. From the buttons below the display on the Lynx cabinet’s back panel you are able to configure the Basic adjustment functions of the internal DSP. Note: You must apply the desired configuration in each cabinet. This is done via the buttons located on the back panel of the cabinet and requires electrical power to work. - Page 10 LX-318C Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last configuration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 11: Cardioid Or Omnidirectional Use
LX-318C CARDIOID OR OMNIDIRECTIONAL USE The LX-318C cabinet is not a conventional cardiod but a ‘2 in 1’. Because of our sophisticated integrated processor the user can select between omnidirectional or cardiod coverage, activating the rear speaker aswell as selecting the rear frequency they most want to cancel, increasing the front pressure and directivity and ensuring that rear sound does not spill on to the stage behind the sub-bass. -
Page 12: Online Control System
LX-318C ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 13: Ethernet Configuration
To do this go to: START > CONFIGURATION > NETWORK CONFIGURATION We will launch the properties of "Local Area Connection" by clicking the right mouse but- ton and clicking on properties. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 14 Open the O.M.S Software and from the Initial Screen choose ETHERNET. It will open a different screen, as follows, there you can see your Network configuration, and the cabinets currently connected. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 15 Assign IP to select Device button after writing in the box above the desired data. Remember there cannot be two devices with exactly the same IP address, the last set of three numbers has to be different and unique to each one of the devices. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 16 Returning to the main screen, we can see each cabinet showing: Model, IP address and Name, as well as monitoring: RMS Level, Input Clip, Cabinet angulation, amplifier temperature and fan speed. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 17 It will open the cmd.exe from where you can type the IPCONFIG command ( ipconfig + Enter), which will show your actual IP settings. Here we can see that this PC has IP set as 192.168.2.99. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 18 If the IP is in use, the device will respond to the Ping, and we will obtain this information: You now have the Cabinets working in the ETHERNET Network Enviroment. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 19: Software, Rainbow
The Rainbow software has been designed by and for sound technicians. Its aim is to help installers and users of Lynx pro audio products. This software is able to import WMF Vector Files with technical drawings and insert them directly into the prediction window and thus enabling real measurement predictions. - Page 20 - Coverage curves on the hearing zones. - Export of SPL Map and coverage curves on jpg or bmp format - Print project report (SPL prediction, flying points, weights, cabinet inclination, polarities, process aplied, EQ Curves…) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 21: Accessories
LX-318C ACCESSORIES The LX-318C sub unit has at its disposal some practical accessories to help use the system. FD-2LX318C SV-LX318C FD-3LX318C Flying frame for the Nylon protection cover for LX-318C. either 2 or 3 cabinets CA-LX318C KV-318C Transport dolly for up to 3... -
Page 22: Guarantee
Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. - Page 23 DECLARATION OF CONFORMITY LYNX Pro Audio S.L. Calle 7 - Pol. Ind. Picassent E-46220 Picassent (Valencia) Lynx Pro Audio S.L. declares that LX-318C cabinets are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
