Summary of Contents for Lynx LX-V12
-

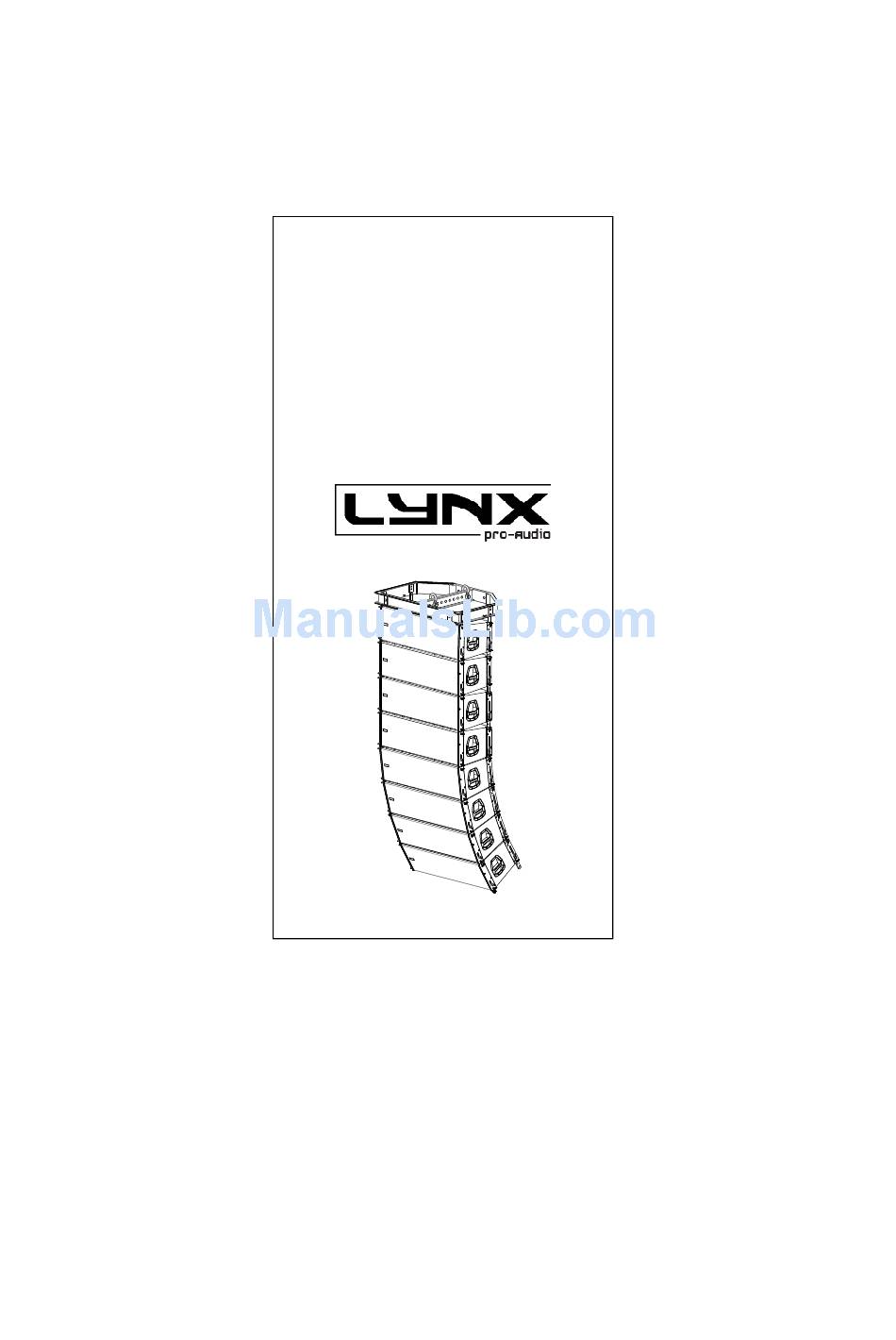

Page 1: User Manual
LX-V12 USER MANUAL V.13.10 LYNX Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... - Page 2 Class D Powered (tri-amplified) Integrated Digital Processing Internal temperature control Electronic protection Digital inclinometer system High quality components Online monitoring available...
- Page 3 CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION OF ELECTRICAL EQUIPMENT CE CERTIFICACTION, EUROPEAN PRODUCT This user manual is property of LYNX Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2013. All rights reserved.
-
Page 4: Table Of Contents
ONLINE CONTROL SYSTEM ETHERNET CONFIGURATION - SOFTWARE, RAINBOW - LYNX V12 FLYING SYSTEM INTRO SAFETY PRECAUTIONS ASSEMBLY OF THE FLYING FRAME ASSEMBLY AND ANGULATION OF THE CABINETS USING LX-V12 WITH LX-V8 MAINTENANCE - USING LX-V12 WITH SUBWOOFERS - ACCESSORIES - GUARANTEE... - Page 5 When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
-
Page 6: Specifications
LX-V12 INTRODUCTION To facilitate, correct and reliable use of the Lynx V12 Line Array we have designed this instruction manual. Please read the manual carefully before proceeding to install the system. When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. -
Page 7: Back Panel
2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... - Page 8 N - Neutral - Earth - CAUTION: DO NOT CONNECT OR DISCONNECT THE AC POWER CONNECTORS UNDER LOAD. CONNECTION EXAMPLE: 6 LX-V12 CABINETS Connect to Connect to AC output signal input LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
-
Page 9: Configuring The Cabinet Dsp Options
CONFIGURING THE CABINET DSP OPTIONS. From the buttons below the display on the Lynx cabinet’s back panel you are able to configure the Basic adjustment functions of the internal DSP. -
Page 10: Select The Input: Digital / Analog
(Fig2). Once found, press OK (3) until the progress bar finishes (Fig3). The display will indicate “Loading DSP” (Fig4) Fig 3 Fig 4 Fig 2 Note: In case of a power cut, the DSP will save its last configuration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... -
Page 11: Configuring The Line Array
If changes are not made the display will automatically dim to save energy and avoid unnecessary light in situations where light is not wanted. To re-activate the light simply press the OK button. LYNX Pro Audio S.L. - Valencia, Spain -... -
Page 12: N Cabinets
In case of a power cut, the DSP will save its last configuration when restarted. However, if it was in Auto Mode, it will take the data from the inclinometer and re-calculate the compensation algorithms. LYNX Pro Audio S.L. - Valencia, Spain -... -
Page 13: Air Absortion Compensation
Once this is done, enter the type of throw in to each cabinet bearing in mind which area they are targeting. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... -
Page 14: Manual And Automatic Modes
- If the cabinet has between –21,1º and –90º The Short Throw preset will be applied. Note: If positive degree values are detected, the DSP Long Throw preset will be applied. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... -
Page 15: Online Control System
LX-V12 ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute and polarity. -
Page 16: Ethernet Configuration
LX-V12 CONFIGURING ETHERNET TO WORK WITH LX-V12 There are two possible ways to connect: 1.- Connecting through an ETHERNET SWITCH/HUB:: - You will need a normal CAT5 Cable. 2.- Connecting through a Wirless ETHERNET. Let us now proceed to configure the Ethernet network, setting the IP address of the computer as static. To do this go to: START >... - Page 17 Open the OCS software and from the Initial Screen choose Etherner device into the configuration menu. It will open a different screen, as follows, there you can see your Network configuration, and the cabinets currently connected. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 18 IP address, the last set of three numbers has to be different and unique to each one of the devices. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 19 Returning to the main screen, we can see each cabinet showing: Model, IP address and Name, as well as monitoring: RMS levels, Input clip, power module temperature, compression levels, air absorption compensation and cabinet angulation, as well as displaying the cabinet model and IP address. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 20 It will open the cmd.exe from where you can type the IPCONFIG command ( ipconfig + Enter), which will show your actual IP settings. Here we can see that this PC has IP set as 192.168.2.99. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 21 If the IP is in use, the device will respond to the Ping, and we will obtain this information: You now have the Cabinets working in the ETHERNET Network Enviroment. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
-
Page 22: Software, Rainbow
The Rainbow software has been designed by and for sound technicians. Its aim is to help installers and users of Lynx pro audio products. This software is able to import WMF Vector Files with technical drawings and insert them directly into the prediction window and thus enabling real measurement predictions. - Page 23 - Export of SPL Map and coverage curves on jpg or bmp format - Print project report (SPL prediction, flying points, weights, cabinet inclination, polarities, process aplied, EQ Curves…) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
-
Page 24: Intro
LX-V12 LYNX V12 FLYING HARDWARE, SV-LXV12 For a correct and safe Flying hardware usage please observe the technical data. Never exceed the maximum load capacities and always follow the usage conditions indicated in this manual. The maximum number of cabinets that can be hung by the Flying hardware is 24. The maximum load capacity of the flying hardware is 2.000 Kg (including cable connection). -
Page 25: Safety Precautions
If the Lynx V12 is installed outdoors check that the support structure will be stable against the wind strength. If the Lynx is used outdoors secure it with cable to avoid pendular movement. Do not stand underneath the system. - Page 26 FLYING FRAME SV-LXV12 The Lynx V12 system is equipped with a solid and precise flying frame (ref.:SV-LXV12) made of aluminium. This frame can hold up to 24 cabinets in Lineal array and allows you to adjust its inclinatiion, with adjustable angles between 0º...
- Page 27 The flying frame built-in 4 steel pieces (one per each cabinet plate). There are 2 pieces S1 at the front and 2 pieces S2 at the rear. These steel pieces, in combination with the lateral plates of the cabinet, enable the first LX-V12 unit to be fixed to the flying frame.
-
Page 28: Assembly Of The Flying Frame
Once the shackles GS-6,5 are fixed to the lifting system with the flying frame SVLX-V12, you have to fix the flying frame on to the first LX-V12 cabinet. Fit the 4 steel pieces S1 and S2 in the 4 upper internal plates of the cabinet. - Page 29 Repeat the same process for the remaining cabinets until all required cabinets are assembled in vertical array. Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. LYNX Pro Audio S.L. - Valencia, Spain -...
-
Page 30: Assembly And Angulation Of The Cabinets
LX-V12 ASSEMBLY AND ANGULATION OF LX-V12 CABINETS The LX-V12 is easy to install. The Rainbow software provides all the necessary information to mount the array cabinets with the required angles to get the calculated coverage and pressure. The cabinets can be placed with variable angulation between 0º and 8.5º, with increases of 0.5º. Once the angle has been determined for each of the cabinets, you have to set up the link pieces P2 in order to achieve this intercabinet angle. -
Page 31: Using Lx-V12 With Lx-V8
(including cable connection) of 2.000 kg. USING LX-V12 WITH LX-V8 With the V12 system you can build a block comprising other LX Series products. For example, the LX-V12 is easily deployed with the LX-V8 cabinets using the Flying adaptor SV-LXV12/8 LYNX Pro Audio S.L. -
Page 32: Maintenance
The user loses all guarantee rights if un-original spare parts are used or any modification is carried out to the product. To request any spare part please indicate the reference number. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com... -
Page 33: Using Lx-V12 With Subwoofers
LX-318C or LX-218S can extend the system response increasing the punch in the lowest frequencies. The ideal ratio of LX-V12 cabinets to subwoofers depends on the configuration of the array but for most applications two LX-V12 for each subwoofer will offer very good results. -
Page 34: Accessories
LX-V12 ACCESSORIES The Lynx V12 system has at its disposal a variety of practical accessories to help use the system in a number of applications. SV-LXV12/8 CA-LXV12 Connection system to Transport dolly for up to link LX-V12 and LX-V8 4 LX-V12... -
Page 35: Guarantee
When products are under guarantee, the repairing and the free supplying of the device parts in order to correct any kind of defect are guaranteed by Lynx Pro Audio S.L.. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. - Page 36 DECLARATION OF CONFORMITY LYNX Pro Audio S.L. Calle 7 - Pol. Ind. Picassent E-46220 Picassent (Valencia) Lynx Pro Audio S.L. declares that LX-V12 cabinets are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
