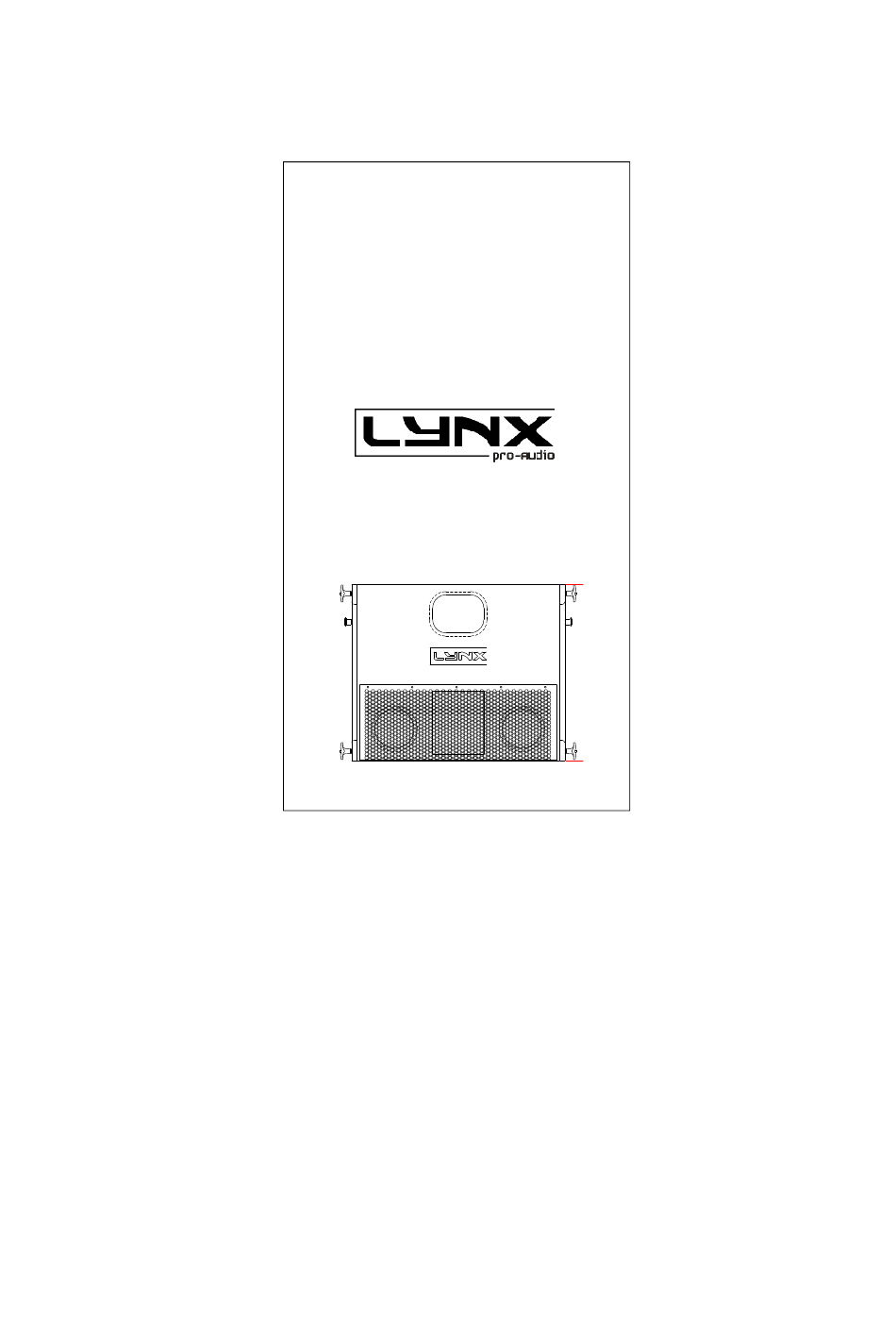

- Page 1 LX-215S USER MANUAL V.11.02 Lynx Pro Audio S.L. Valencia, Spain www.lynxproaudio.com - info@lynxproaudio.com...
- Page 2 CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION OF ELECTRICAL EQUIPMENT CE CERTIFICACTION, EUROPEAN PRODUCT RoHS Directive 2002/95/EC This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2011. All rights reserved.
-
Page 3: Table Of Contents
CONTENTS - SAFETY PRECAUTIONS - CABINET INTRO SPECIFICATIONS BACK PANEL CONNECTORS AND CONNECTIONS - CONFIGURING THE CABINET DSP OPTIONS CONFIGURATION PANEL SELECT AND RUN PRESETS ONLINE MONITORING SYSTEM ETHERNET CONFIGURATION - SOFTWARE, RAINBOW - GUARANTEE... - Page 4 Do not hang the cabinets from the handles or from any other part other than the designated hanging point. When flying this system please observe the technical and “Lynx On Stage” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual.
-
Page 5: Specifications
LX-215S INTRODUCTION To facilitate, correct and reliable use of the Lynx LX-215S we have designed this instruction manual. Please read the manual carefully before proceeding to install the system. When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. -
Page 6: Back Panel
2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 7 CAUTION: Do not connect or N - Neutral disconnect the AC Power connectors under load. - Earth CONNECTION EXAMPLE: 4 LX-215S CABINETS Connect to AC output Connect to signal output Connect to AC output LYNX Pro Audio S.L. - Valencia, Spain -...
-
Page 8: Configuring The Cabinet Dsp Options
LX-215S Configuring the Cabinet DSP options. From the buttons below the display on the Lynx cabinet’s back panel you are able to configure the Basic adjustment functions of the internal DSP. Note: You must apply the desired configuration in each cabinet. This is done via the buttons located on the back panel of the cabinet and requires electrical power to work. - Page 9 LX-215S Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last configuration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 10: Online Monitoring System
As well as displaying the cabinet model and IP address the O.M.S will be monitoring in real time and the user will be able to view RMS levels, Input clip, power module temperature and the fan speed. For Lynx Line Arrays it also displays the cabinet angulation. -
Page 11: Ethernet Configuration
LX-215S CONFIGURING ETHERNET TO WORK WITH LX-215S There are two possible ways to connect: 1.- Connecting through an ETHERNET SWITCH/HUB:: - You will need a normal CAT5 Cable. 2.- Connecting through a Wirless ETHERNET. Let us now proceed to configure the Ethernet network, setting the IP address of the computer as static. - Page 12 Open the O.M.S Software and from the Initial Screen choose ETHERNET. It will open a different screen, as follows, there you can see your Network configuration, and the cabinets currently connected. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 13 Assign IP to select Device button after writing in the box above the desired data. Remember there cannot be two devices with exactly the same IP address, the last set of three numbers has to be different and unique to each one of the devices. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 14 Returning to the main screen, we can see each cabinet showing: Model, IP address and Name, as well as monitoring: RMS Level, Input Clip, Cabinet angulation, amplifier temperature and fan speed. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 15 It will open the cmd.exe from where you can type the IPCONFIG command ( ipconfig + Enter), which will show your actual IP settings. Here we can see that this PC has IP set as 192.168.2.99. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 16 If the IP is in use, the device will respond to the Ping, and we will obtain this information: You now have the Cabinets working in the ETHERNET Network Enviroment. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 17: Software, Rainbow
The Rainbow software has been designed by and for sound technicians. Its aim is to help installers and users of Lynx pro audio products. This software is able to import WMF Vector Files with technical drawings and insert them directly into the prediction window and thus enabling real measurement predictions. - Page 18 - Coverage curves on the hearing zones. - Export of SPL Map and coverage curves on jpg or bmp format - Print project report (SPL prediction, flying points, weights, cabinet inclination, polarities, process aplied, EQ Curves…) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 19: Guarantee
Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. - Page 20 DECLARATION OF CONFORMITY LYNX Pro Audio S.L. Calle 7 - Pol. Ind. Picassent E-46220 Picassent (Valencia) Lynx Pro Audio S.L. declares that LX-215S cabinets are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
