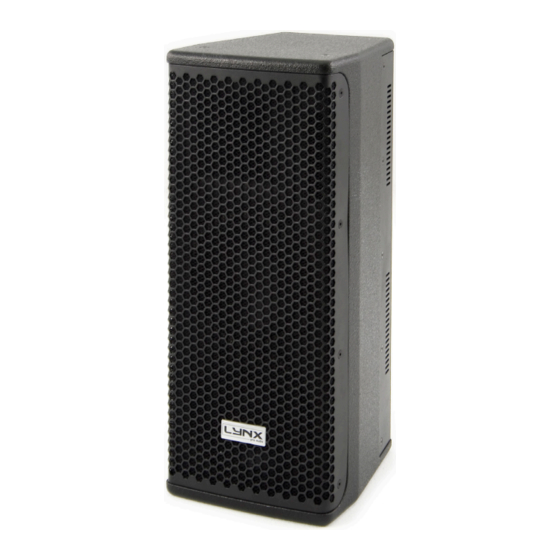

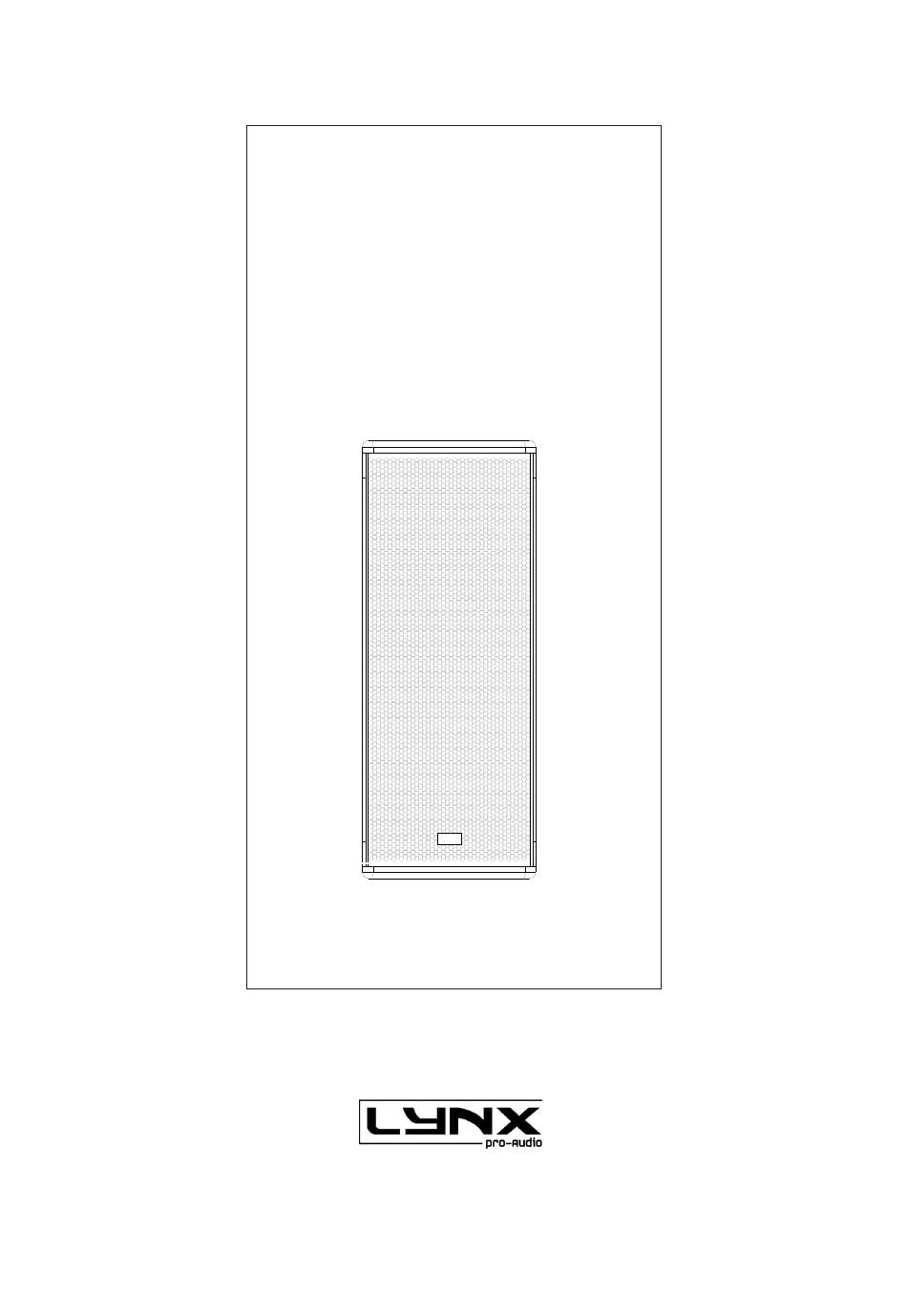

- Page 1 ADP series USER MANUAL ADP-26 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents
CONNECTION EXAMPLE • CONFIGURING THE DIGITAL SIGNAL PROCESSOR CONFIGURING THE DSP OPTIONS CONFIGURATION PANEL SELECT AND RUN PRESET • ONLINE CONTROL SYSTEM • RAINBOW 3D ACOUSTIC SIMULATION SOFTWARE • HARDWARE AND ACCESSORIES • CERTIFICATIONS AND GUARANTEE Lynx Pro Audio S.L www.lynxproaudio.com... - Page 4 “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.
-
Page 5: System Overview
1000W Class D LF/MF amplifier: 1 x 500 W HF amplifier: 1 x 500 W Processing: 56 bit Lynx DSPB-22 with FIR filters Cabinet adjustment: Back panel LCD Control connections: XLR / Ethernet (OCS) optional, USB (DSP programming) AC power: 230V / 115V selectable. -
Page 6: Back Panel
ADP Series User Manual ADP-26 back panel • LCD display & digital control USB connection Signal input Ethernet (optional) Signal link Main link Main input Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 7: Connectors And Connections
1.- EARTH 2.- LIVE (+) 2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 8: Connection Example
• CONNECTION EXAMPLE: 6 ADP-26 cabinets Connect to signal output Connect to AC output (max. +2 cabinets) Connect to AC output (max. +2 cabinets) CAUTION: Do not connect or disconnect the AC power connectors underload. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 9: Configuring The Digital Signal Processor
This frees system designers from the constraints of phase anomalies associated with analogue filters or their digital versions (IIR, Infinite Impulse Response). When properly used, FIR filtering can audibly improve a system’s impulse response and reduce crossover interference. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 10: Configuration Panel
Once found, press OK (Fig2(3)) until the progress bar finishes (Fig3). The display will indicate “Loading DSP” (Fig4). Fig 3 Fig 4 Fig 2 Note: In case of a power cut, the DSP will save its last configurations when restarted. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 11: Online Control System
User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 12: Rainbow 3D Acoustic Simulation Software
• Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry. -
Page 13: Hardware And Accessories
ADP Series User Manual HARDWARE AND ACCESSORIES The ADP series include some accessories for installation, rigging and transport. The ADP-26 includes: WB-03 SB-02 Wall bracket for 35mm Lightweight aluminium top hat insertion stand TU-C01 VSM-V1 35mm connecting pole for satellite combination with 35mm speaker mounting ADP-18S. -
Page 14: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 15 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
