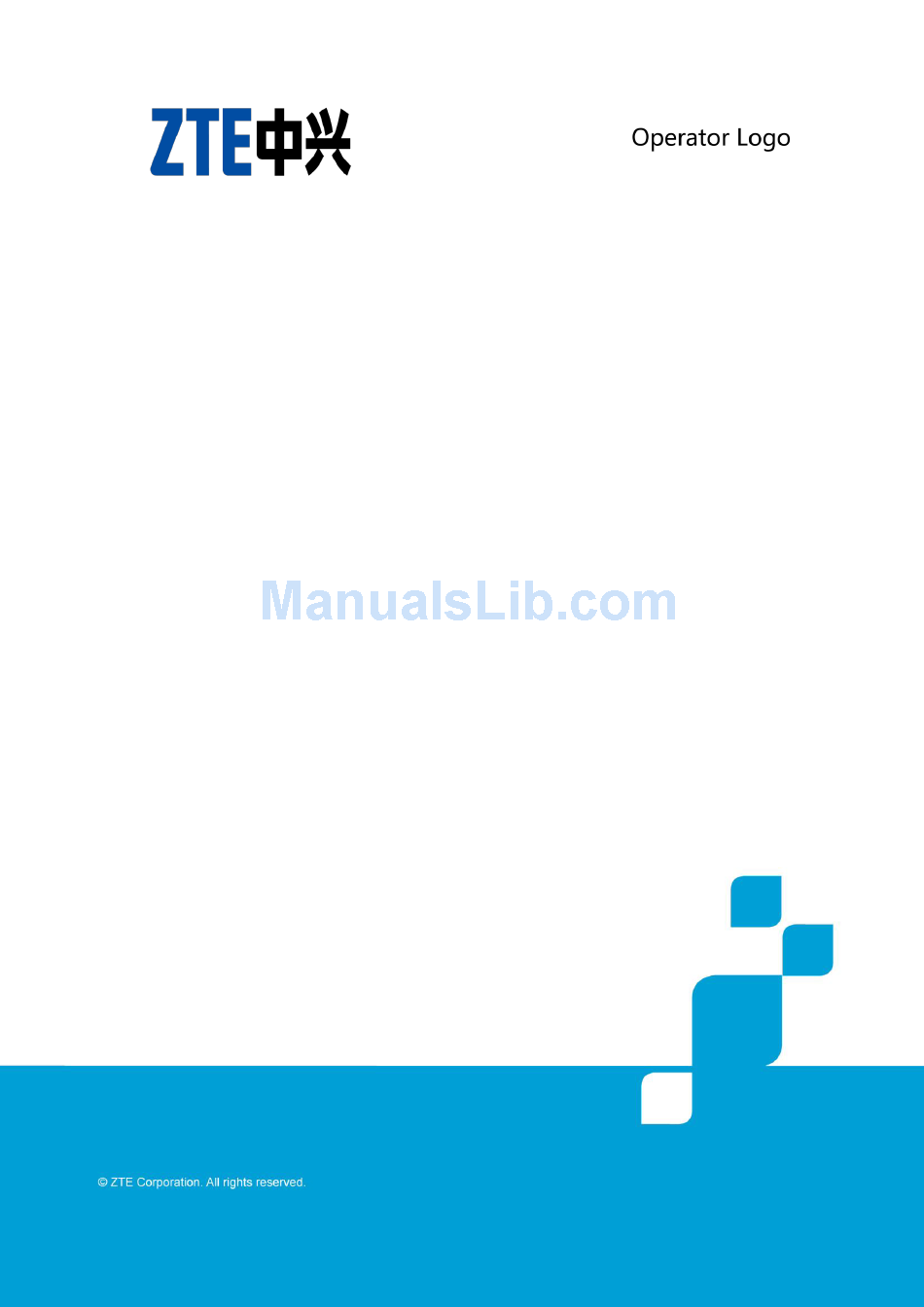

  • Page 1 ZXHN F660 Product Description...
  • Page 3 Not open to the Third Party © 2015 ZTE Corporation. All rights reserved. ZTE CONFIDENTIAL: This document contains proprietary information of ZTE and is not to be disclosed or used without the prior written permission of ZTE. Due to update and improvement of ZTE products and technologies, information in this document is subjected to change without notice.
  • Page 4: Table Of Contents

    ZXHN F660 Product Description TABLE OF CONTENTS Overview ......................5 Product Positioning ....................5 Network Applications ................... 6 Highlights ......................6 High Reliability ..................... 6 Rich Interfaces at User Side ................7 Convenient and Secure Wi-Fi Access ..............7 USB File Storage and Sharing Services ............... 7 Eco-Friendly Design .....................
  • Page 5 ZXHN F660 Product Description 4.13.1 Statistic of Ethernet Port Performance Parameter ..........21 Technical Indices and Parameters ..............22 Physical Structure, Environmental and Electrical Indices ........22 Interface Indices and Parameters ..............23 Key Technical Indices ..................24 Standard Compliance ..................24 Glossary ......................
  • Page 6 FIGURES Figure 1-1 The ZXHN F660 ....................5 Figure 1-2 Application Scenario of the ZXHN F660 ............. 6 Figure 3-1 The Rear Panel of the ZXHN F660 ..............8 Figure 3-3 LED Indicators of the ZXHN F660 ..............10 TABLES Table 3-1 Description of the ZXHN F660’s Interfaces ............9 Table 3-2 Description of the ZXHN F660’s Buttons .............
  • Page 7: Overview

    Overview Product Positioning The ZXHN F660, a GPON optical network terminal (ONT) for home users, is designed for the fiber to the home (FTTH) scenarios, supports desktop mounting and wall mounting. The ZXHN F660 complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at network side, and provides 4GE ports, two Phone ports, one...
  • Page 8: Network Applications

    ZXHN F660 Product Description Network Applications As a GPON ONT designed for the FTTH scenarios, the ZXHN F660 provides four 10/100/1000M network interfaces, two Phone interfaces, one 802.11b/g/n(2*2 @2.4GHz) Wi-Fi interface and one USB interface for home users. See Figure 1-2 for the application...
  • Page 9: Rich Interfaces At User Side

    ZXHN F660 Product Description  The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the Phone interfaces, and 1.5 kV for the Ethernet ports. Rich Interfaces at User Side ...
  • Page 10: Eco-Friendly Design

    Off-link & batch configuration Hardware Features Device Interfaces The ZXHN F660's device interfaces as shown in Figure 3-1, include one optical interface at network side, four 10/100/1000M Ethernet interfaces, two Phone interfaces, Wi-Fi and one USB interface at user side, one Power interface Figure 3-1 The Rear Panel of the ZXHN F660 ZTE Confidential &...
  • Page 11: Device Buttons

    Support USB host interface, 2.0 standard Device Buttons The ZXHN F660's device Buttons as shown in Figure 3-1 and Figure 3-2 includes one reset button, one power button, one Wi-Fi button and one WPS button. Table 3-2 Description of the ZXHN F660’s Buttons...
  • Page 12: Led Indicators

    ZXHN F660 Product Description Device Button Description Wi-Fi Wi-Fi on/off Start WPS processes LED Indicators Figure 3-2 LED Indicators of the ZXHN F660 Table 3-3 Description of the ZXHN F660’s LED Indicators Definition Color LED Indicator Indicator Power Power supply Green OFF: The ZXHN F660 is powered off.
  • Page 13 Definition Color LED Indicator Indicator Internet Internet status Green OFF: The ZXHN F660 is not powered indicator on or ethernet connection does not exi. The internet Constantly ON: connection has been established (routing connection has the correct IP address or bridge link is normal);...
  • Page 14: Functions

    ZXHN F660 Product Description Definition Color LED Indicator Indicator USB interface Green OFF: The ZXHN F660 is not powered status on or the USB interface is not indicator connected. Constantly ON: The USB interface is connected and works in Host mode, but no data is transmitted via the USB interface.
  • Page 15: Bandwidth Allocation

    ZXHN F660 Product Description 4.1.1 Bandwidth Allocation  Static bandwidth allocation  Adopts static bandwidth allocation mechanism in compliance with ITU-T G.983.1  Dynamic bandwidth allocation (DBA)  Adopts fair DBA policy for the same CoS services during traffic congestion ...
  • Page 16: Optical Link Monitoring And Diagnosis

    ZXHN F660 Product Description 4.1.5 Optical Link Monitoring and Diagnosis  The optical module diagnostic monitoring interface monitors the parameters including operating temperature of the optical module, supply voltage, bias current, transmission power, receiving power, etc.  ONT long-time light emitting detection and auto shutdown.
  • Page 17: Voip Function

    ZXHN F660 Product Description    Maximum TX power up to 100mW  Two External antennas VoIP Function  SIP and H.248 compliant  Support in-band DTMF tone sending/receiving and out-band DTMF signaling with RTP, as per RFC2833 ...
  • Page 18: Data Forwarding Function

    ZXHN F660 Product Description Data Forwarding Function 4.5.1 MAC Address Function  MAC address learning  MAC address aging  MAC address learning enable/disable  MAC address learning limit  MAC address binding to a user port. Only controls the input side of the port.
  • Page 19: Qos Function

    ZXHN F660 Product Description  VLAN untagged mode, tagged mode and double tagged mode  VLAN tag  Adds S-Tag to the untagged or priority tagged frames from the user port as per the needs.  Adds C-Tag and S-Tag to the untagged or priority tagged frames from the user port as per the needs.
  • Page 20: L3 Function

    ZXHN F660 Product Description L3 Function  Data forwarding and routing  Bridging, routing, or hybrid mode (bridging and routing)  Static routing  RIP v1/v2 dynamic routing  Address management  DHCP Server/Client  PPPoE Client/Pass Through  DNS Client/Relay ...
  • Page 21: Management Function

    ZXHN F660 Product Description  IPv6 address management  SLAAC allocation mode on LAN side  DHCPv6 on LAN side  SLAAC on WAN side  DHCPv6 on WAN side  DHCPv6-PD on WAN side  PPPoE+DHCPv6 on WAN side ...
  • Page 22: Security Function

    ZXHN F660 Product Description 4.11 Security Function  Traffic filtering based on UNI, VLAN ID, 802.1p, UNI + 802.1p, VLAN + 802.1p  Multicast , unicast and broadcast flow attack protection  MAC address limiting based on each UNI or single ONT ...
  • Page 23: Performance Statistic Function

    ZXHN F660 Product Description  Transmission optical power too high  Transmission optical power too low  Port loopback alarm  Loss of signal  Loss of frame  Signal degradation alarm  Loss of GEM channel delineation 4.13 Performance Statistic Function 4.13.1...
  • Page 24: Technical Indices And Parameters

     Ethernet frames dropped (from UNI to NNI and vice versa) Technical Indices and Parameters Physical Structure, Environmental and Electrical Indices Table 5-1 Specifications and Environmental Indices of the ZXHN F660 Parameter Nominal Value Net dimensions 44mm(H)x220mm(W)x160mm (D) Net weight 0.38kg...
  • Page 25: Interface Indices And Parameters

    ZXHN F660 Product Description Parameter Nominal Value MTTR 30 mins Interface Indices and Parameters Table 5-2 GPON Interface Indices of the ZXHN F660 Parameter Nominal Value Connector type SC/APC Number of PON Fiber type Single-mode fiber Transmitting end: 1310 nm (PON...
  • Page 26: Key Technical Indices

    ZXHN F660 Product Description Key Technical Indices Table 5-3 Key Technical Indices of the ZXHN F660 Parameter Nominal Value Capacity of the MAC address table Capacity of the multicast table IGMP join delay < 10 ms (single channel) IGMP leave delay <...
  • Page 27 ZXHN F660 Product Description Standard Description IEEE Std Virtual Bridged Local Area Networks 802.1Q-2005 IEEE Standards for Local and Metropolitan Area IEEE Std Networks —Virtual Bridged Local Area 802.1ad-2005 Networks—Revision—Amendment 4: Provider Bridges IEEE Standard for Information technology—Telecommunications and information exchange between systems—Local and metropolitan...
  • Page 28: Glossary

    Description Information technology equipment. Safety, General EN60950 requirements General Requirements for Information. Technology UL60950 Equipment Glossary Table 7-1 Glossaries of the ZXHN F660 Acronym Full Name Access Control List Advanced Encryption Standard Alloc-ID Allocation Identifier Access Network Address Resolution Protocol...
  • Page 29 ZXHN F660 Product Description Acronym Full Name FTTC Fiber to the Curb FTTCab Fiber to the Cabinet FTTH Fiber to the Home Gigabits Ethernet Generic Framing Procedure GPON Gigabit-capable Passive Optical Networks IP Multimedia Sublayer Internet Protocol IPTV Internet Protocol Television...
  • Page 30 ZXHN F660 Product Description Acronym Full Name Round Robin Single Copy Broadcast Small Form-Factor Pluggable Service Level Authentication Serial Number SNMP Simple Network Management Protocol Service Priority Strict Priority Soft Switch Set Top Box Spanning Tree Protocol SVLAN Service VLAN...
