Page 2: Legal Information
All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their re- spective owners. This document is provided “as is”, and all express, implied, or statutory... -
Page 3: Safety Precautions
Safety Precautions Usage Cautions � Read all the safety cautions carefully before using the device. � Only use the accessories included in the package, such as power supply adapter. � Do not extend the power cord, otherwise the device will not work. �... -
Page 4: Package Content

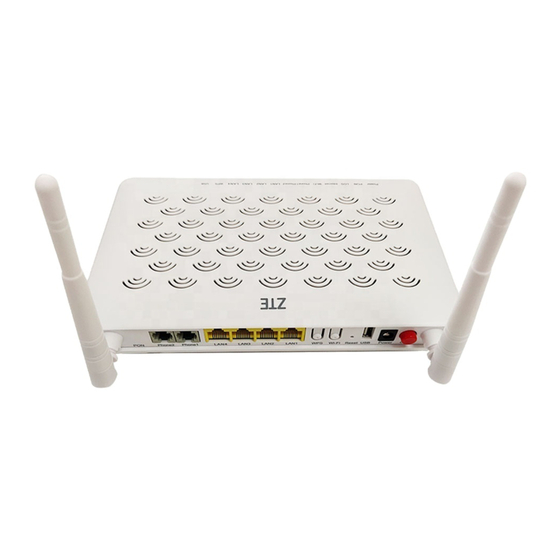

Package Content Please make sure the ZXHN F660 package contains the following items. Quantity Item ZXHN F660 unit AC-DC power supply adapter RJ-45 Ethernet cable User manual Note: A socket outlet that is installed near equipment and that shall be easily acces- sible. - Page 5 Figure 3-1 Table 3-1 describes the indicators on the front panel of the ZXHN F660 unit. Table 3-1 Description Indicator Status No power Power Solid green Power on The ONT registration fails or the system is not powered on. Solid green The ONT registration is successful.
- Page 6 Indicator Description Status The device is not powered on or the ethernet connection does not exit. The internet connection has been Internet Solid red established. The data is transmitted via internet Flashing red connection. The device is not powered on or the wireless interface is disabled.
- Page 7 Figure 4-1 Table 4-1 describes the interfaces and buttons on the back panel of the ZXHN F660 unit. Table 4-1 Description Interface/Button On/Off Power switch. 12 V DC power connector. Power USB 2.0 interface. Reset button, when the power is on, use a needle to press Reset the button for over 5 seconds to restore the default settings.
-
Page 8: Product Features
Product Features Interfaces � GPON interface: GPON standard, SC/APC, comply with G.984.1–G.984.5 standards. � Ethernet interface: Four GE interfaces, RJ-45, comply with IEEE 802.3 and IEEE 802.3u standards. � Phone interface: RJ-11. � Wi-Fi interface: Comply with IEEE 802.11n standard. �... -
Page 9: Cable Connection
Frequency bands Maximum Output Power 802.11b 15 ~ 19 dBm 802.11g 14 ~ 18dBm 802.11n(HT20) 14 ~ 18dBm 802.11n(HT40) 14 ~ 18dBm Cable Connection shows the devices that are connected to the ZXHN F660 device. After the devices are connected to the ZXHN F660 device, press the power button. -
Page 10: Fcc Statement
The power adapter is not correctly connected to the device. Be sure to use the power adapter supplied with the device. The LOS indicator is flashing red or solid red after the device is powered � The optical fiber is not correctly connected to the ONT PON interface. �... - Page 11 users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
