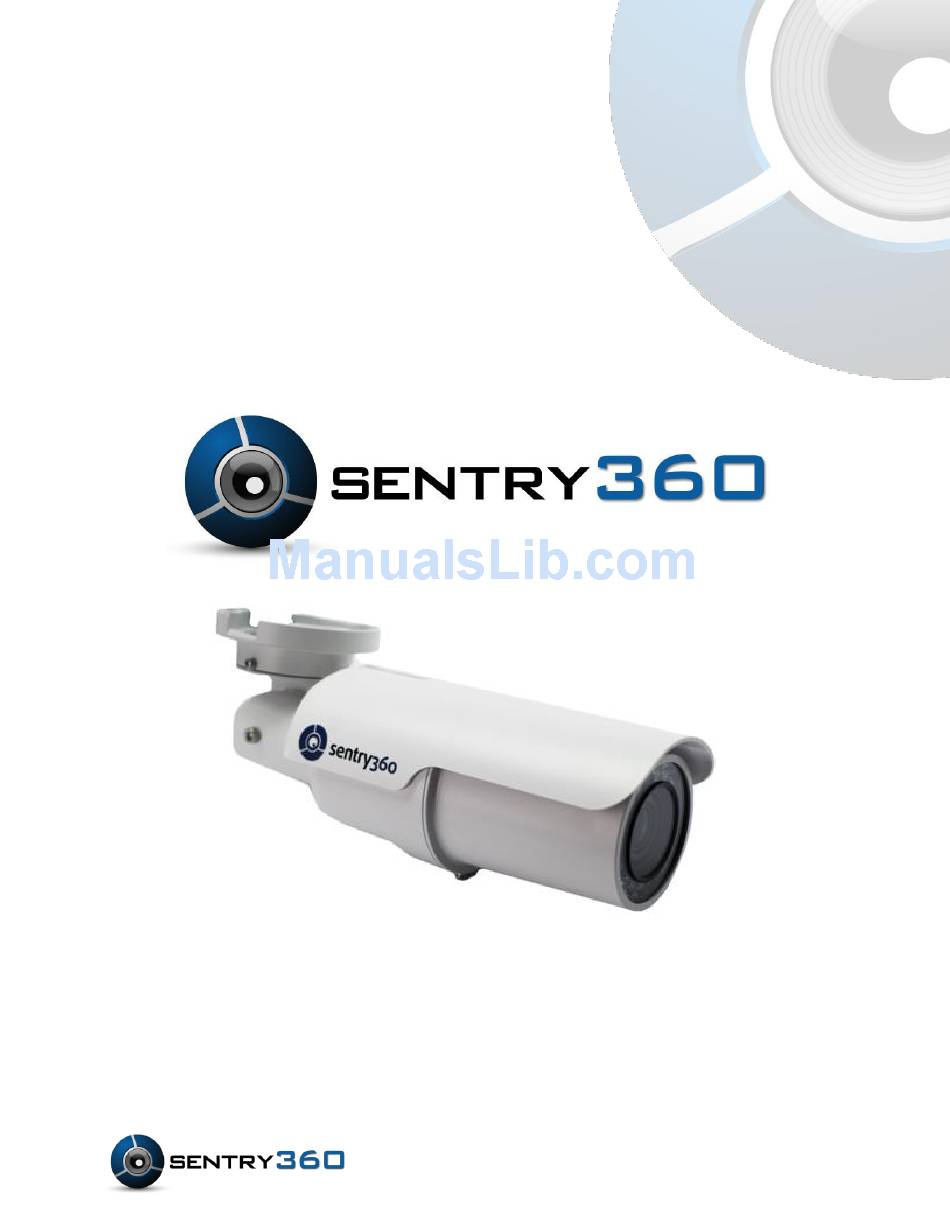

- Page 1 IS-BL800 User's Manual Ver 1.0 ©Sentry360 2015...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................3 Features ........................3 Package Contents......................4 Dimensions ........................5 Connectors ........................6 microSD Card Slot / Default Button ................7 Camera Cabling ......................... 8 Power Connection......................8 Ethernet Cable Connection ..................8 System Requirements ...................... 9 Access Camera ........................10 Configure Video Streams ....................14 Configuration Files Export / Import ................15... -
Page 3: Overview

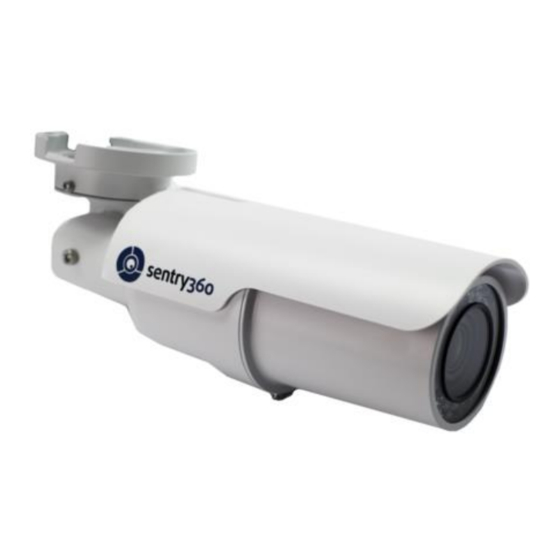

The IS-BL800 camera is a Quad-streaming, H.264 & MJPEG encoding, 4.0 Megapixel resolution, IP-addressable, network camera. It is designed to deliver full-motion, high-definition, progressive scan digital video across local area networks. The IS-BL800 features a 1/1.7” Sony CMOS sensor, Power over Ethernet, 18 built-in IR-LEDs, and Audio-In/Audio-Out. The IS- BL800 is a cost effective, high-level, megapixel network camera. -
Page 4: Package Contents
Package Contents Please check the package contains the following items listed below. IS-BL800 IS-BL800 Camera Alarm Terminal Block Power Terminal Block (x1) (x1) Plastic Screw Anchor Self-Tapping Screw (x5) (x5) Quick Start Guide... -
Page 5: Dimensions
Dimensions The dimensions of the camera are shown below. -
Page 6: Connectors
Connectors The diagram below shows the camera's default button and various connectors. Definition for each connector is given as follows. -
Page 7: Microsd Card Slot / Default Button
microSD Card Slot / Default Button The camera’s microSD card slot and factory default button are located inside the front housing. If users need to use them, the front housing must be opened. Follow the steps below to reach microSD card slot and factory default button. Step 1: Loosen the screw on the camera housing but do not detach it. -
Page 8: Camera Cabling
Camera Cabling Before users connect cables, make sure that all cables and the power adaptor are placed in dry and well-waterproofed environments, e.g. waterproof boxes. The purpose is to prevent moisture accumulation inside the camera and moisture penetration into cables, which might lead to camera breakdown. -
Page 9: System Requirements
System Requirements To access the camera via web browser, please ensure the PC has a good network connection, and meets system requirements as described below. Items System Requirement ® ® Intel Pentium M, 2.16 GHz or ® Personal Computer Intel Core 2 Duo, 2.0 GHz 2 GB RAM or more... -
Page 10: Access Camera
Access Camera Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras. - Page 11 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Right click on a camera and select Browse. The prompt for entering the default username and...
- Page 12 The default login ID and password for the Administrator are: Login ID Password Admin 1234 NOTE: ID and password are case sensitive. Installing DC Viewer Software Online For initial access to the IP camera, a client program, DC Viewer, will be automatically installed to the PC when connecting to the camera.
-
Page 14: Configure Video Streams
Configure Video Streams Users can setup Video Resolution on the Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming > Video Format. Click on <Save> to confirm the setting. -
Page 15: Configuration Files Export / Import
Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page of the configuration interface. The Maintenance settings can be found under this path: System > Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 16: Appendix A: Delete The Existing Dc Viewer
Appendix A: Delete the Existing DC Viewer For users who have previously installed the DC Viewer, please first remove the existing DC Viewer before accessing the camera. Deleting the DC Viewer In the Windows <Start Menu>, select <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 17: Appendix B: Setup Internet Security
Appendix B: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1. Start the Internet Explorer (IE). Step 2. Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3.
