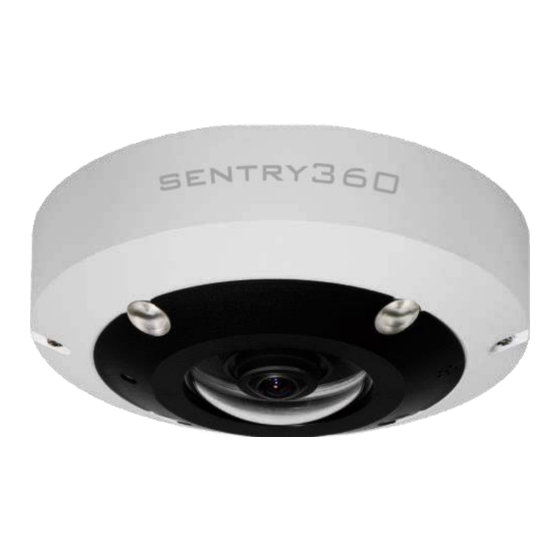

FS-IP6360-V

User Manual

Ver 1.0
©Sentry360 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-IP6360-V and is the answer not in the manual?

Questions and answers

Related Manuals for Sentry360 FS-IP6360-V

Summary of Contents for Sentry360 FS-IP6360-V

  • Page 1: User Manual

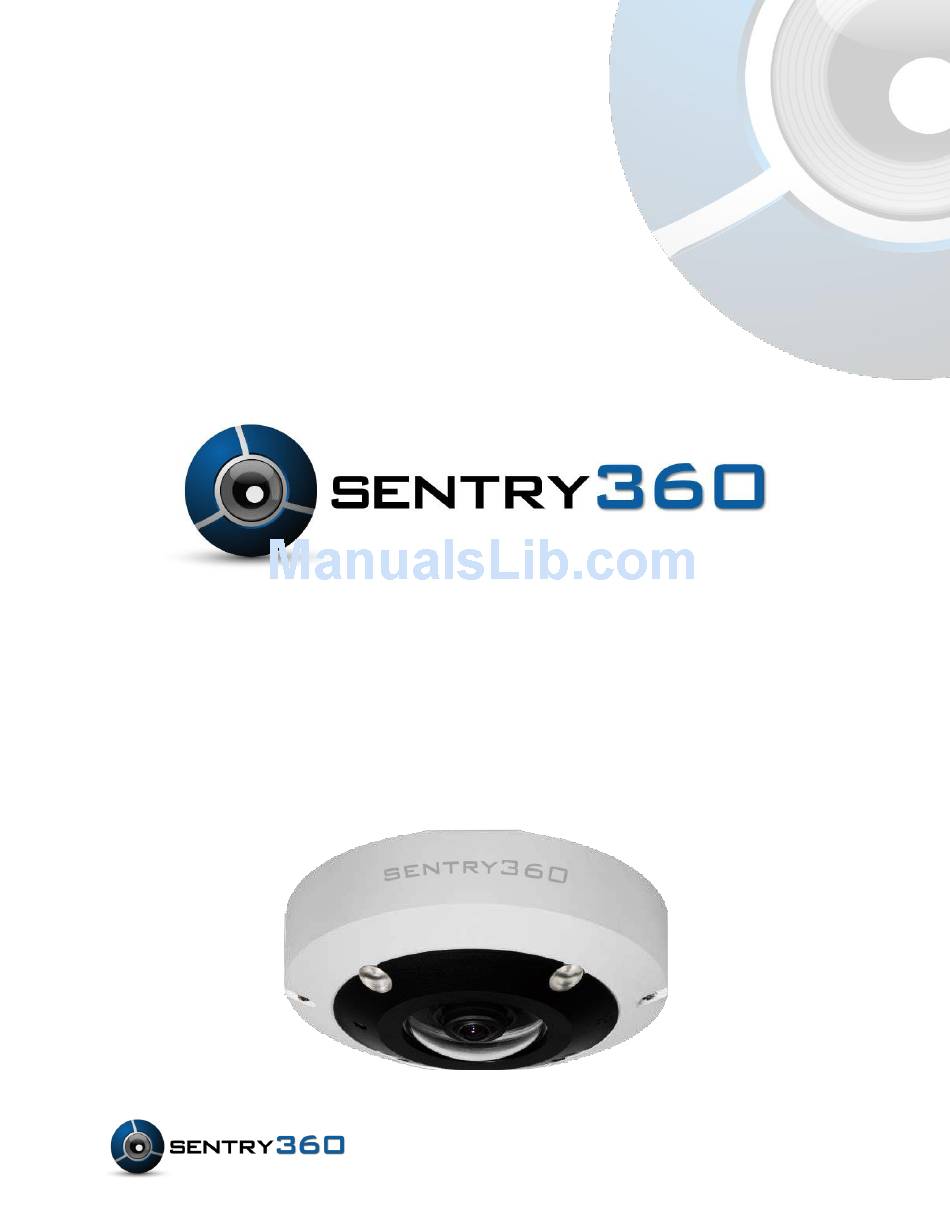

    FS-IP6360-V User Manual Ver 1.0 ©Sentry360 2016...

  • Page 2: Table Of Contents

    Table of Contents Overview ............................3 Features ............................3 Package Contents .......................... 4 Dimensions ............................ 5 Installation ............................ 6 Function Cables ..........................7 Connectors ............................ 8 Connect Ethernet Cable ......................9 System Requirements ....................... 10 Access Camera .......................... 11 Configure Video Streams ......................15 Configuration Files Export / Import ...................

  • Page 3: Overview

    It is designed to deliver full-motion, high-definition, progressive scan digital video across local area networks. The FS-IP6360-V features a design with no moving parts, creating a full 360 degree view. An optically corrected panoramic lens, designed exclusively for the FullSight™ camera, allows for immersive 360 degree live view as well as pan-tilt-zoom during playback with the use of Sentry360’s API...

  • Page 4: Package Contents

    Package Contents Please check the package contains the following items listed below. NOTE: The type of the supplied self-tapping screws is mainly for softer substrate/material installation such as wood. For other installation environment such as cement wall, it is required to pre-drill and use plastic anchors before fastening the supplied self-tapping screw on the wall.

  • Page 5: Dimensions

    Dimensions The FS-IP6360-V dimensions are shown below.

  • Page 6: Installation

    Installation We suggest installing the FS-IP6360-V according to the following steps to make sure the camera is waterproof. Step 1. Put the rubber washer in both sides of the holes on the bottom plate of the camera. Step 2. Align the installing hole to the target position and fasten the screws to attach the camera.

  • Page 7: Function Cables

    Function Cables...

  • Page 8: Connectors

    1.6 Connectors (Indoor Only)

  • Page 9: Connect Ethernet Cable

    Connect Ethernet Cable Please follow the instructions below to connect the FS-IP6360-V Ethernet cable. The FS-IP6360-V supports an RJ-45 Dongle Cable. For best transmission quality, cable length shall not exceed 100 meters. Connect one end of the Ethernet cable to the RJ-45 connector of the camera / function cable, and plug the other end of the cable to the network switch or PC.

  • Page 10: System Requirements

    System Requirements To access the FS-IP6360-V via web browser, please ensure your PC has a good network connection, and meets system requirements as described below. Items System Requirement ® ® 1. Intel Pentium M, 2.16 GHz or ® Personal Computer...

  • Page 11: Access Camera

    Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras.
  • Page 12 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Step 8. Right click on a camera and select Browse. The prompt for entering the default username and password will appear for logging in to the FS-IP6360-V.
  • Page 13 NOTE: ID and password are case sensitive. Installing DC Viewer Software Online For the initial access to the FS-IP6360-V, a client program, DC Viewer, will be automatically installed to the PC when connecting to the camera. If the web browser doesn’t allow DC Viewer installation, please check the Internet security settings or...
  • Page 14 Image and Focus Adjustment The image displays on the Home page when successfully accessing to the FS-IP6360-V. Adjust zoom and focus as necessary to produce a clear image. Note: Please refer to FS-IP6360-V M for more button function detail.

  • Page 15: Configure Video Streams

    Configure Video Streams Users can setup Video Resolution on the Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming > Video Format. Click on <Save> to confirm the setting.

  • Page 16: Configuration Files Export / Import

    <Save> and specify a desired location for saving the configuration file. Upload To copy an existing configuration file to the FS-IP6360-V, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading.

  • Page 17: Appendix A: Delete The Existing Dc Viewer

    Appendix A: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing the FS-IP6360-V. Deleting the DC Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.

  • Page 18: Appendix B: Setup Internet Security

    Step 3. Click on the <Security> tab, and select <Internet> zone. Step 4. Down the page, click on the <Default Level> button and click on <OK> to confirm the setting. Close the browser window, and restart a new one later to access the FS-IP6360-V. ActiveX Controls and Plug-ins Settings Step 1.
