Page 1: User Manual
IS-DM260 User Manual Ver 1.0 ©Sentry360 2014... -
Page 2: Table Of Contents
Table of Contents Overview ..........................3 Features ........................3 Package Contents......................4 Dimensions ........................5 Outdoor Installation (IS-DM260-R) ................6 Connectors ........................7 Connect Ethernet Cable ....................8 IS-DM260 (Indoor) ....................... 8 IS-DM260-R (Outdoor) ....................9 System Requirements ...................... 9 Access Camera ........................10... -
Page 3: Overview

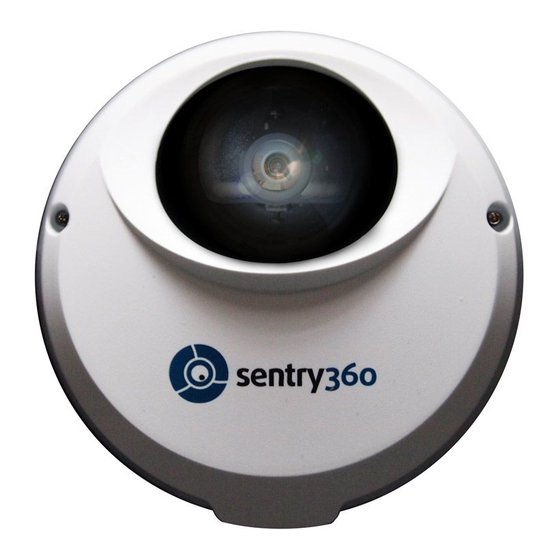

The IS-DM260 camera is a Quad-streaming, H.264 & MJPEG encoding, 2.0 Megapixel resolution, IP-addressable network camera. It is designed to deliver full-motion, high-definition, progressive scan digital video across local area networks. The IS-DM260 features a design with no moving parts, a 1/2.7” progressive CMOS sensor, Power over Ethernet, Micro-SD slot, and Mic-In audio (IS-DM260 only). -
Page 4: Package Contents
Package Contents Please check the package contains the following items listed below. Rubber Washer (×1, Casing) Camera Rubber Washers (×3, Baseplate) (IS-DM260-R with Dongle) (IS-DM260-R only) Plastic Anchors (×3) Self-tapping screws (×3) Security Torx Quick Guide NOTE: The type of the supplied self-tapping screws is mainly for softer substrate/material installation such as wood. -
Page 5: Dimensions
Dimensions The IS-DM260 dimensions are shown below. -
Page 6: Outdoor Installation (Is-Dm260-R)
Outdoor Installation (IS-DM260-R) We suggest installing the IS-DM260-R according to the following steps to make sure the camera is waterproof. Step 1. Put the rubber washer in both sides of the holes on the bottom plate of the camera. Step 2. Align the installing hole to the target position and fasten the screws to attach the camera. -
Page 7: Connectors
Connectors The diagram below shows the IS-DM260 reset button and various adjusting screws. Definition for each will be given as follows. Designation Description Restore to default setting; Reset Button press the button with a proper tool Lens Rotate the lens right/left to adjust focus... -
Page 8: Connect Ethernet Cable
Connect Ethernet Cable Please follow the instructions below to connect the IS-DM260 Ethernet cable. IS-DM260 (Indoor) The Ethernet connector, which is located in the rear of the camera, is shown below: PoE Connection Connect one end of the Ethernet cable to the network port on the camera, and the other end to Power Sourcing Equipment (PSE) like hubs or routers. -
Page 9: Is-Dm260-R (Outdoor)
Ethernet cable to Power Sourcing Equipment (PSE) like hubs or routers. NOTE: Please use a PoE waterproof switch/hub so that the camera can work. System Requirements To access the IS-DM260 via web browser, please ensure your PC has a good network connection, and meets system requirements as described below. Items System Requirement ®... -
Page 10: Access Camera
Access Camera Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras. - Page 11 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Step 8. Right click on a camera and select Browse. The prompt for entering the default username and password will appear for logging in to the IS-DM260.
- Page 12 <Finish> to exit the installation process. Step 3. Click on <Finish> to close the DC Viewer installation page. Once the DC Viewer is successfully installed, the IS-DM260 Home page will be able to correctly display as the figure below.
- Page 13 Image and Focus Adjustment The image displays on the Home page when successfully accessing to the IS-DM260. Adjust zoom and focus as necessary to produce a clear image. Note: Please refer to IS-DM260 M for more button function detail.
-
Page 14: Configure Video Streams
Configure Video Streams Users can setup Video Resolution on the Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming > Video Format. Click on <Save> to confirm the setting. -
Page 15: Configuration Files Export/ Import
Click on <Save> and specify a desired location for saving the configuration file. Upload To copy an existing configuration file to the IS-DM260, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading. -
Page 16: Appendix A: Delete The Existing Dc Viewer
Appendix A: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing the IS-DM260. Deleting the DC Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 17: Appendix B: Setup Internet Security
Step 4. Click on <OK> to accept the settings. A prompt window will appear for confirming the setting changes, click <Yes(Y)> to close the Security Setting window. Step 5. Click on <OK> to close the Internet Options screen. Step 6. Close the browser window, and restart a new one to access the IS-DM260.
