Page 1: User Manual
FS-IP5000-M User Manual Ver 1.0 ©Sentry360 2014... -
Page 2: Table Of Contents
Table of Contents Overview ..........................3 Features ........................3 Package Contents......................4 Dimensions ........................5 Installation ........................6 Connectors ........................7 Connect Ethernet Cable ....................8 System Requirements ...................... 9 Access Camera ........................10 Configure Video Streams ....................14 Configuration Files Export/ Import .................15 Appendix A: Delete the Existing DC Viewer ................16 Appendix B: Setup Internet Security ..................17... -
Page 3: Overview

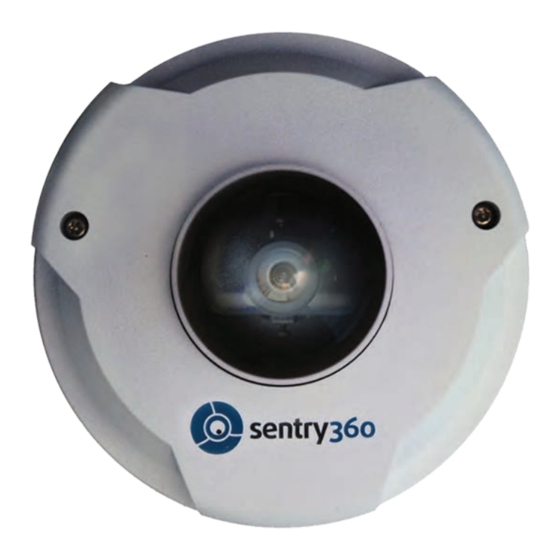

360 degree view. An optically corrected panoramic lens, designed exclusively for the FullSight™ camera, allows for immersive 360 degree live view as well as pan-tilt-zoom during playback with the use of Sentry360’s API or SDK with any 3 party Network Video Recording Software Certified Partner. -
Page 4: Package Contents
Package Contents Please check the package contains the following items listed below. Rubber Washer (×1, Casing) Camera (with Cable) Rubber Washers (×3, Baseplate) Plastic Anchors (×3) Self-tapping screws (×3) Security Torx Quick Guide NOTE: The type of the supplied self-tapping screws is mainly for softer substrate/material installation such as wood. -
Page 5: Dimensions
Dimensions The FS-IP5000-M dimensions are shown below. -
Page 6: Installation
Installation We suggest installing the FS-IP5000-M according to the following steps to make sure the camera is waterproof. Step 1. Put the rubber washer in both sides of the holes on the bottom plate of the camera. Step 2. Align the installing hole to the target position and fasten the screws to attach the camera. -
Page 7: Connectors
Connectors The diagram below shows the FS-IP5000-M reset button and various adjusting screws. Definition for each will be given as follows. Designation Description Restore to default setting; Reset Button press the button with a proper tool Lens Rotate the lens right/left to adjust focus... -
Page 8: Connect Ethernet Cable
Connect Ethernet Cable Please follow the instructions below to connect the FS-IP5000-M Ethernet cable. The FS-IP5000-M supports an RJ-45 Dongle Cable. RJ-45 Dongle RJ-45 Dongle Cable Connection Run the Ethernet cable through the Waterproof RJ-45 Screw-On Plug. Then connect one end of the Ethernet cable to the RJ-45 dongle, tightening the sealing nut of the Waterproof RJ-45 Screw-On Plug completely. -
Page 9: System Requirements
System Requirements To access the FS-IP5000-M via web browser, please ensure your PC has a good network connection, and meets system requirements as described below. Items System Requirement ® ® 1. Intel Pentium M, 2.16 GHz or ® Personal Computer... -
Page 10: Access Camera
Access Camera Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras. - Page 11 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Step 8. Right click on a camera and select Browse. The prompt for entering the default username and password will appear for logging in to the FS-IP5000-M.
- Page 12 NOTE: ID and password are case sensitive. Installing DC Viewer Software Online For the initial access to the FS-IP5000-M, a client program, DC Viewer, will be automatically installed to the PC when connecting to the camera. If the web browser doesn’t allow DC Viewer installation, please check the Internet security...
- Page 13 Image and Focus Adjustment The image displays on the Home page when successfully accessing to the FS-IP5000-M. Adjust zoom and focus as necessary to produce a clear image. Note: Please refer to FS-IP5000-M M for more button function detail.
-
Page 14: Configure Video Streams
Configure Video Streams Users can setup Video Resolution on the Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming > Video Format. Click on <Save> to confirm the setting. -
Page 15: Configuration Files Export/ Import
Click on <Save> and specify a desired location for saving the configuration file. Upload To copy an existing configuration file to the FS-IP5000-M, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading. -
Page 16: Appendix A: Delete The Existing Dc Viewer
Appendix A: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing the FS-IP5000-M. Deleting the DC Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 17: Appendix B: Setup Internet Security
Step 4. Click on <OK> to accept the settings. A prompt window will appear for confirming the setting changes, click <Yes(Y)> to close the Security Setting window. Step 5. Click on <OK> to close the Internet Options screen. Step 6. Close the browser window, and restart a new one to access the FS-IP5000-M.
