Summary of Contents for Sentry360 IS-IP10K
-
Page 1: User Manual
IS-IP10K User Manual Ver 1.0 ©Sentry360 2014... -
Page 2: Table Of Contents
Table of Contents Overview ..........................3 Features ........................3 Package Contents......................3 Dimensions ........................4 Connectors ........................5 System Requirements ...................... 6 Access Camera ......................... 7 Web Browser Configuration ..................9... -
Page 3: Overview

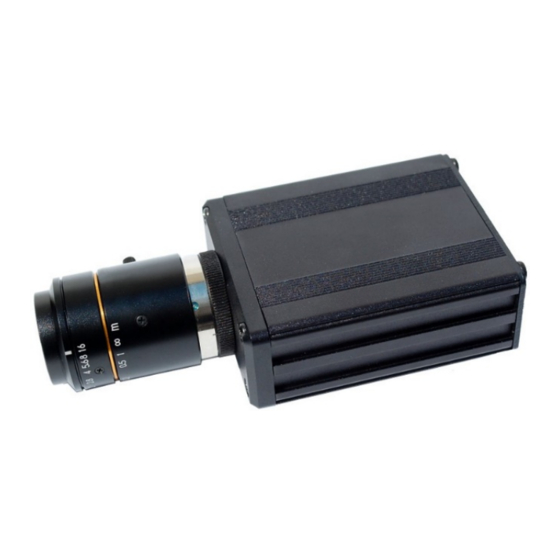

It is designed to deliver full-motion, high-definition, progressive scan digital video across local area networks. The IS-IP10K features a design with no moving parts, creating a high-resolution fixed image. The IS-IP10K comes equipped with a CS mount that accommodates a wide variety of fixed lenses for different applications;... -
Page 4: Dimensions
Dimensions The IS-IP10K camera and lens dimensions are shown below. -
Page 5: Connectors
Connectors The diagram below shows the IS-IP10K connections. Designation Description DC Power 12V DC Power Connector LAN Port PoE and Ethernet Port... -
Page 6: System Requirements
System Requirements To connect to the IS-IP10K via web browser, please ensure your PC has a good network connection, and meets system requirements as described below. Items System Requirement Web Browser Microsoft Internet Explorer Mozilla Firefox Google Chrome Apple Safari... -
Page 7: Access Camera
Access Camera Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras. - Page 8 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Step 8. Right click on a camera and select Browse. The prompt for entering the default...
-
Page 9: Web Browser Configuration
Web Browser Configuration Camera configuration is accessed through the web browser interface by clicking the Show Settings button. When configuration is complete, click the System Tab -> Save to commit settings to permanent memory.
