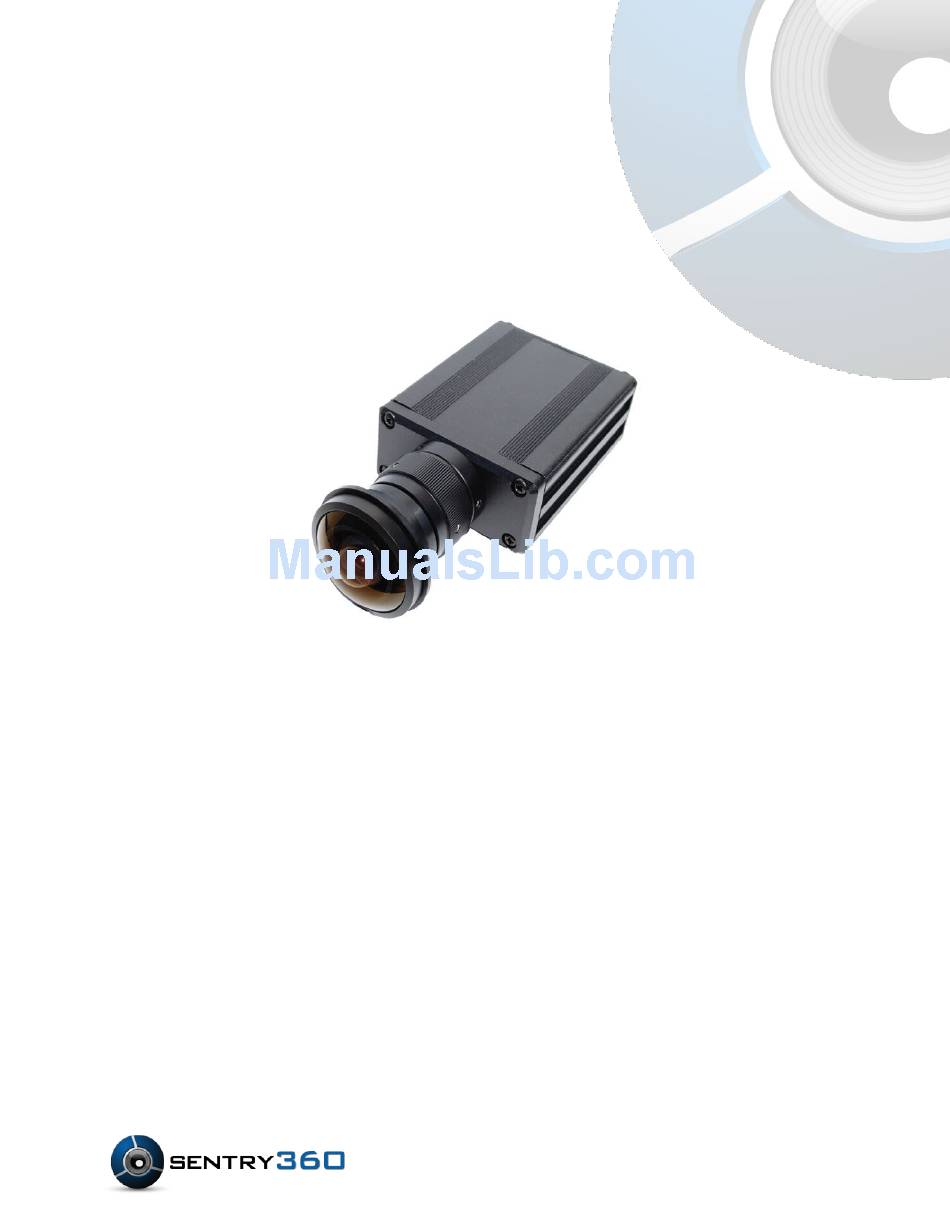

FS-IP8180

User Manual

Ver 1.0
©Sentry360 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS-IP8180 and is the answer not in the manual?

Questions and answers

Related Manuals for Sentry360 FS-IP8180

Summary of Contents for Sentry360 FS-IP8180

  • Page 1: User Manual

    FS-IP8180 User Manual Ver 1.0 ©Sentry360 2014...

  • Page 2: Table Of Contents

    Table of Contents Overview ..........................3 Features ........................3 Package Contents......................3 Dimensions ........................4 Connectors ........................5 System Requirements ...................... 6 Access Camera ......................... 7 Web Browser Configuration ..................9...

  • Page 3: Overview

    180-degree view with no blind spots. An optically corrected fish-eye lens, designed exclusively for the FullSight™ camera, allows for immersive 180 degree live view. The FS-IP8180 is equipped with a mechanical IR cut filter that filters infrared light to display high-quality video images in low-light environments.

  • Page 4: Dimensions

    Dimensions The FS-IP8180 camera and lens dimensions are shown below.

  • Page 5: Connectors

    Connectors The diagram below shows the FS-IP8180 connections. Designation Description DC Power 12V DC Power Connector LAN Port PoE and Ethernet Port...

  • Page 6: System Requirements

    System Requirements To connect to the FS-IP8180 via web browser, please ensure your PC has a good network connection, and meets system requirements as described below. Items System Requirement Web Browser Microsoft Internet Explorer Mozilla Firefox Google Chrome Apple Safari...

  • Page 7: Access Camera

    Access Camera Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras.
  • Page 8 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Step 8. Right click on a camera and select Browse. The prompt for entering the default...

  • Page 9: Web Browser Configuration

    Web Browser Configuration Camera configuration is accessed through the web browser interface by clicking the Show Settings button. When configuration is complete, click the System Tab -> Save to commit settings to permanent memory.
