Display the information on screen, default is only the time, and the position can not be set.

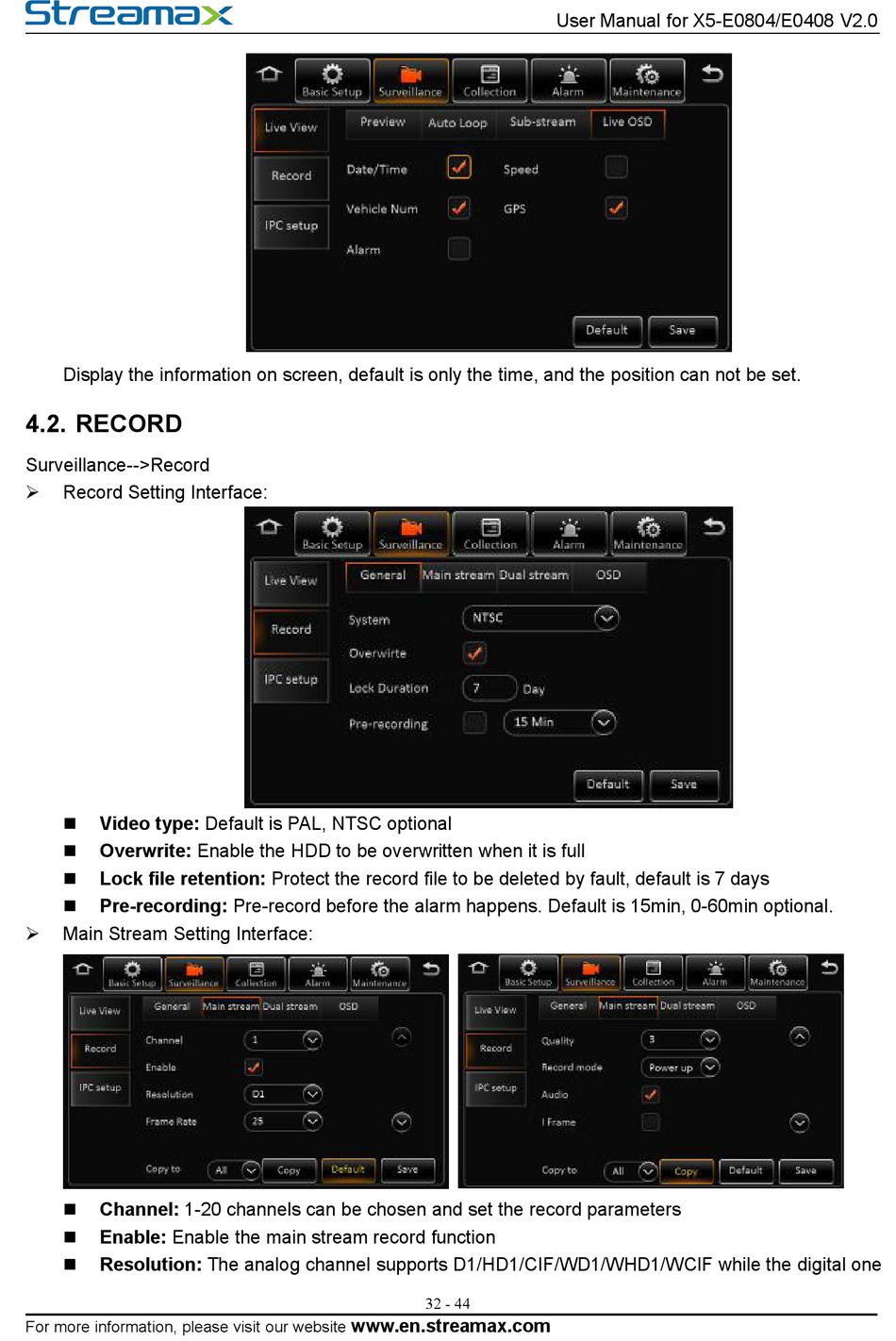

4.2. RECORD

Surveillance-->Record
Record Setting Interface:

Video type: Default is PAL, NTSC optional

Overwrite: Enable the HDD to be overwritten when it is full

Lock file retention: Protect the record file to be deleted by fault, default is 7 days

Pre-recording: Pre-record before the alarm happens. Default is 15min, 0-60min optional.

Main Stream Setting Interface:

Channel: 1-20 channels can be chosen and set the record parameters

Enable: Enable the main stream record function

Resolution: The analog channel supports D1/HD1/CIF/WD1/WHD1/WCIF while the digital one

