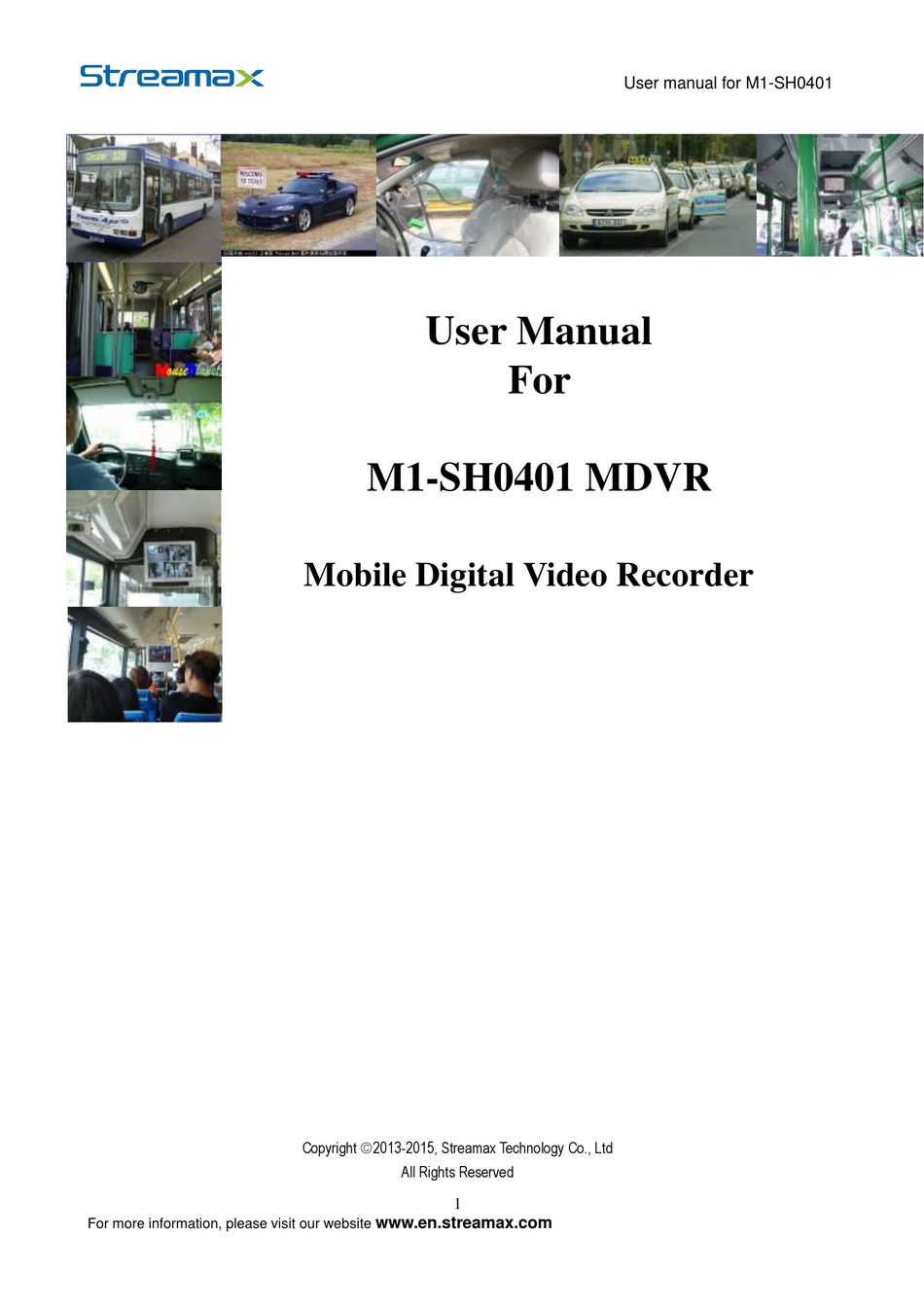

User manual for M1-SH0401 User Manual M1-SH0401 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved www.en.streamax.com For more information, please visit our website... - Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. Copyright 2013-2015) www.en.streamax.com...
- Page 3 User manual for M1-SH0401 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 4: Product Characteristics
1. PRODUCT CHARACTERISTICS OVERVIEW Streamax M1-SH0401 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. -
Page 5: System Diagram
User manual for M1-SH0401 720P(1280X720); Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Manual/Schedule/Alarm Pre-recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support Playback Channel 1 channel by local playback Playback Search Mode Date/time, channel, event WIFI/3G/4G(Optional) 802.11b/g/n/EVDO/WCDMA/TDD-LTE/FDD-LTE... -
Page 6: External Interface
User manual for M1-SH0401 EXTERNAL INTERFACE DIMENSION (Unit: mm) www.en.streamaxtech.com For more information, please visit our website... -
Page 7: Front Panel
User manual for M1-SH0401 FRONT PANEL REAR PANEL Serial No. Print Description Power DC 8-36 V Power Input Sensor&Serial The Interfaces of Serial Port and Switch A/V IN1~4 Audio & Video Input 1-4 A/V OUT Audio & Video Output The Interface of PON Power Supply... -
Page 8: Frequently Asked Questions
User manual for M1-SH0401 Alarm and Serial Cables A/V OUT Cable 2. FREQUENTLY ASKED QUESTIONS The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition. - Page 9 User manual for M1-SH0401 Check whether the storage disk is formatted. The storage disk should be formatted before normally storing record files. Check whether there is video signal input into the device from camera, and whether there is video/image on the screen.
