  • Page 1 User manual for D5 4.0 User Manual D5 V4.0 MDVR Mobile Digital Video Recorder www.en.streamax.com For more information, please visit our website...
  • Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. www.en.streamax.com...
  • Page 3 Insulate circuit ground and metal shell for all the peripherals. Before installation, please open the package and ensure that all parts are included. If there are any problems, please contact us as soon as possible. www.en.streamax.com For more information, please visit our website...
  • Page 4: Product Characteristics

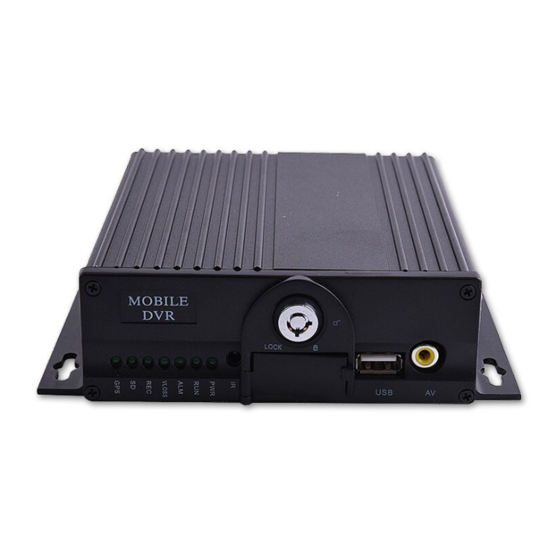

    1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW D5 V4.0 is superior and function-extensive MDVR model specially designed for vehicle surveillance and remote monitoring, combined with high-speed processor and embedded operating system. The advanced H.264 video compression and decompression, network technology, location technology and RFIC technology make D5 to realize video record, vehicle driving information record and wireless data upload.
  • Page 5 Interface CANBus x 1 External MIC 1 channel large 5559-4P External Speaker 1 channel small 5559-4P Sensor 16 channels input, 4 channels output Speed 1 channel pulse speed detection Power Input DC8-36V www.en.streamax.com For more information, please visit our website...
  • Page 6: System Diagram

    Dimension (L x H x W) Panel:188x60mm, Device: 178 x 50 x 150mm Characteristics Weight Device: 1.6kg (Without Hard Disk) Working Temperature -30℃- +70℃ Environment Working Humidity 20%-90%RH 1.5. SYSTEM DIAGRAM 1.6. EXTERNAL INTERFACE www.en.streamax.com For more information, please visit our website...
  • Page 7 Direction Down External MIC Confirm Button Serial / CAN USB/DB9 Cover Hard Disk Cover Hard Disk Lock GPS Antenna WIFI Antenna 3G/4G Interface SD Card Slot Power / Alarm Interface Hard Disk Box www.en.streamax.com For more information, please visit our website...
