- Page 1 User Manual for X7 SE -H0804 User Manual X7 PRO-H0804 Mobile Network Video Recorder - 11 www.en.streamax.com For more information, please visit our website...
- Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. - 11 www.en.streamax.com...
-
Page 3: Guarantee & Warnings
Insulate circuit ground and metal shell for all the peripherals. Before installation, please open the package and ensure that all parts are included. If there are any problems, please contact us as soon as possible. - 11 www.en.streamax.com For more information, please visit our website... -
Page 4: Product Characteristics

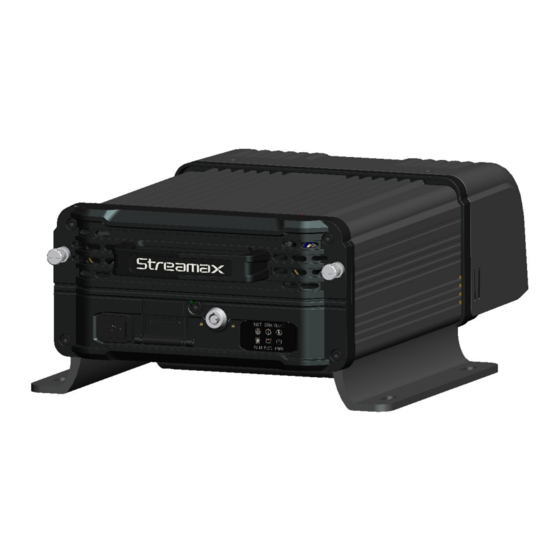

1．Product characteristics 1.1. Overview Streamax Mobile NVR X7PRO-H0804 is a multi-functional extensive device specially designed for mobile video surveillance system. It adopts high speed processor and built-in operating system, combining with H. 265 video compression / decompression technology, 4G/3G network technology, GPS locating technology and WIFI technology. - Page 5 2 x RS232, 2 x RS485 Interface 2 x CAN Sensor 8 inputs, 2 outputs Pulse Speed Detection 1 channel Control panel Intercommunication One MIC port (CP4) Input DC8-36V Power Output 5V@500mA & 12V@500mA - 11 www.en.streamax.com For more information, please visit our website...
-
Page 6: External Interface
362.4x 254 x 127mm (with rear cover and shelves) Characteristic (L x W x H) Operating Temperature -40°C~ +85°C (storage); -40°C~ +70°C (with heating) Environment Relative Humidity 8%~90% 1.4. External Interface Dimension (Unit: mm) - 11 www.en.streamax.com For more information, please visit our website... - Page 7 User Manual for X7 SE -H0804 Front Panel Rear Panel Print Description Power DC8-36V power input Serial Serial interface Sensor Sensor interface - 11 www.en.streamax.com For more information, please visit our website...
- Page 8 Print serial interface USB 2.0 interface (type-B) A/V IN 1~8 AHD interfaces 1 to 8 IPC 1~8 IPC interfaces 1 to 8 RJ45 (10/100/1000M) network port 1.5. HARD DISK INSTALLATION INSTRUCTION - 11 www.en.streamax.com For more information, please visit our website...
- Page 9 User Manual for X7 SE -H0804 1.6. System diagram - 11 www.en.streamax.com For more information, please visit our website...
- Page 10 User Manual for X7 SE -H0804 1.7. External cable interface definition - 11 www.en.streamax.com For more information, please visit our website...
- Page 11 If the device has been set with schedule recording, it can’t shutdown if it is still during recording time of the task table. - 11 www.en.streamax.com For more information, please visit our website...
