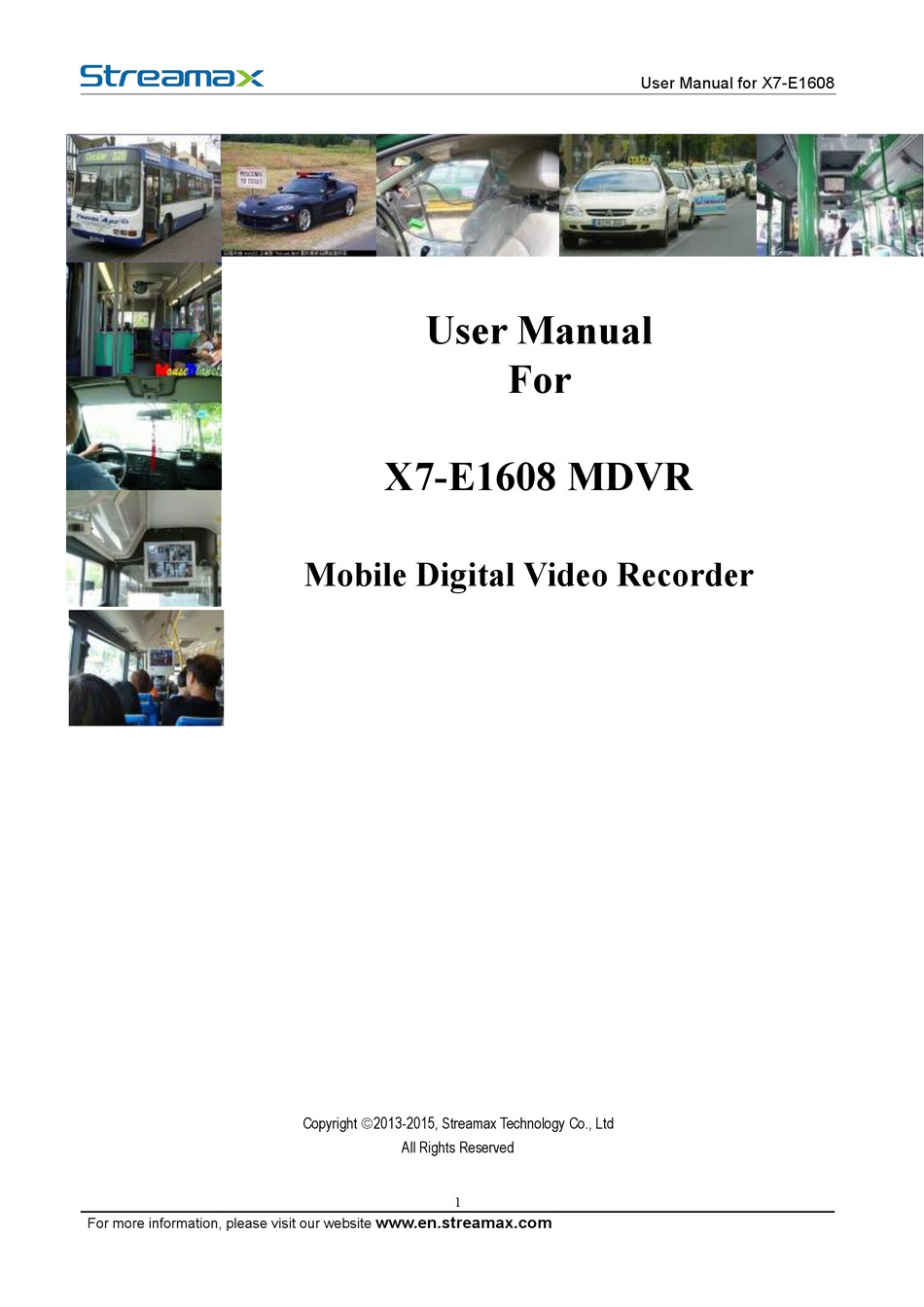

Page 1: User Manual
User Manual for X7-E1608 User Manual X7-E1608 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved www.en.streamax.com For more information, please visit our website... - Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd (Copyright 2013-2015) www.en.streamax.com...
- Page 3 User Manual for X7-E1608 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 4: Table Of Contents
User Manual for X7-E1608 Content 1． PRODUCT CHARACTERISTICS........................6 1.1. OVERVIEW............................6 1.2. FEATURES............................6 1.2.1. HARDWARE FEATURES:....................... 6 1.2.2. SOFTWARE FEATURES:......................6 1.3. OPTIONAL ACCESSORIES:......................7 1.3.1. POE SMART SWITCH......................7 1.3.2. UPS.............................. 9 1.4. X7-E1608 SPECIFICATIONS......................10 1.5. EXTERNAL INTERFACE........................11 2．... - Page 5 User Manual for X7-E1608 5.6. MAINTENANCE..........................45 5.6.1 CONFIGURATION........................45 5.6.2 DATA EXPORT.........................46 5.6.3 UPGRADE..........................46 5.6.4 STORAGE..........................47 5.6.5 DEFAULT..........................47 www.en.streamaxtech.com For more information, please visit our website...
-
Page 6: Product Characteristics

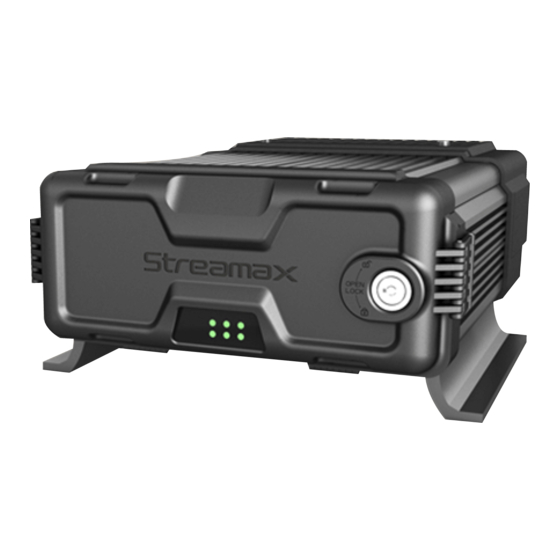

1．PRODUCT CHARACTERISTICS 1.1. OVERVIEW X7-E1608 is a cost effective and function-extensive device specially designed for Mobile Video surveillance and intelligent dispatch. It adopts high speed processor and built-in operating system, combining with H. 264 video compression / decompression technology, 4G/3G network technology, GPS locating technology and WIFI technology. -
Page 7: Optional Accessories
User Manual for X7-E1608 Supports dual streams for main/sub stream recordings and mirror recording; Built-in H.264 codec, user can manually configure the video coding attributes A series of synchronous operation: Information record, recording playback, file backup, network transmission, etc.; Supports multiple languages;... - Page 8 User Manual for X7-E1608 Rear Panel: Unit: (mm) Specification Items Specification IPC Channel 4 channels Interface RJ45(10M/100M) Video IPC Power Supply Interface M12(9 Pin) Power Power Input DC 8—36V Power Standard ISO 7637-2 Network Port RJ45(10M/100M) 6 PCS The yellow light is about power status,...
-
Page 9: Ups
User Manual for X7-E1608 1.3.2. UPS Picture To MDVR To Switch With 16 SV mini dome cameras recording without IR, the UPS last for 90 minutes after main power is off. Specification Name Vehicle Smart Battery Type Input Voltage 8~36V... -
Page 10: X7-E1608 Specifications
User Manual for X7-E1608 1.4. X7-E1608 SPECIFICATIONS Items Technical Index Product Series X7-E1608 Function Overview Preview, Recording, Playback, Network, Locating Linux 3.0.8 System Control Mode CP4, Easy Check, IR Remote Control, Network Input 16 channels WD1+4channels IPC（720P） Output 2 channels... -
Page 11: External Interface
User Manual for X7-E1608 USB 2.0 x 2 (1 at front panel, 1 at rear panel) SD x 1 Interface Sensor 8 inputs, 2 outputs Speed 1 channel pulse speed detection Interface Control panel (CP4)(Optional) Input DC8-36V Output 12V@1A, 5V@1A Power Impulse current: input 13.5V@10A... - Page 12 User Manual for X7-E1608 Front Panel Serial No. Name Hard Disk Module Hard Disk Lock SIM/SD Cards Rear Panel www.en.streamaxtech.com For more information, please visit our website...
- Page 13 User Manual for X7-E1608 Serial No. Print Description Power DC8-36V Power Input Serial Serial Port Panel Control Panel (CP4) USB Port RJ45 Network Port GPS Antenna Port RS232 Serial Port Fan Port A/V1 Audio/Video input/Output 1 A/V2 Audio/Video input/Output 2...
-
Page 14: Product Installation
User Manual for X7-E1608 2．PRODUCT INSTALLATION 2.1. SYSTEM DIAGRAM 2.2. HARD DISK INSTALLATION INSTRUCTION www.en.streamaxtech.com For more information, please visit our website... -
Page 15: Sd Card And Sim Card Installation Instruction
User Manual for X7-E1608 2.3. SD CARD AND SIM CARD INSTALLATION INSTRUCTION 2.4. EXTERNAL WIRE DIAGRAM 2.4.1. DB44 CABLE www.en.streamaxtech.com For more information, please visit our website... - Page 16 User Manual for X7-E1608 www.en.streamaxtech.com For more information, please visit our website...
-
Page 17: Db26 Cable
User Manual for X7-E1608 Definition and interface of DB44 DB44 Definition of DB44 Interface Name Description The port is Aviation Male. There are 4 audio/video inputs of a Audio/Video 4-channel MDVR, while there are 8 audio/video inputs of a VIN1~VIN8... - Page 18 User Manual for X7-E1608 Definition and interface of DB26 DB26 Definition of DB26 Port Interface Description RS232-1 1: 232TX, 2:232RX, 3:5V，4:GND RS232-2 1: 232TX, 2: 232RX, 3: 5V，4: GND RS485 1: 485A, 2: 485B, 3: 5V，4: GND RS485-3 RS485-4 1: 485A, 2: 485B, 3: 5V，4: GND...
-
Page 19: Power Cable
User Manual for X7-E1608 2.4.3. POWER CABLE Below is a power cable, one end is 4PIN white connector which can be insert into the back panel of MDVR. Red cable and black cable can be connected with the battery of vehicle; red cable is “+”, black is “–”, yellow is ignition. -
Page 20: Alarm Input / Output
User Manual for X7-E1608 2.4.5. ALARM INPUT / OUTPUT MDVR has 8 alarm input and 2 alarm output. Alarm input works to inspect the electrical level, it can detect different signals of the vehicle, like braking, turning direction, etc. Please see the diagram below to simulate the working mode. -
Page 21: Setting
User Manual for X7-E1608 3．SETTING 3.1. REMOTE CONTROL PANEL Remote control key directions 1）when the password is turn off, in preview screen, press this bottom standby(soft start key), press again the device turn on. ON/OFF 2）When the password is enabled,... -
Page 22: Cp4 Control Panel
User Manual for X7-E1608 Fast forward button during FAST playback image data, three class: FORWARD 2X, 4X, 8X Rewind button during playback REWIND image data, three class: 2X, 4X, 8X STOP ■ Stop manual recording button RECORD ● Start manual recording button During playback, turn the page / DOWN ▼... -
Page 23: Operating Instructions
User Manual for X7-E1608 Operation Instrument Remark: When reporting to CMS server, use serial number. When using Android pad, you need to select vehicle number, as when insert the wifi hot spot to USB port of the 4120, the hot spot will get the vehicle number and change its SSID to vehicle number. - Page 24 User Manual for X7-E1608 User can enter the operation interface if entering the right password; User must enter the right password again if entering the wrong ones; Click cancel to exit the login interface; Language： Support the language switch. "language" (Lang) means the current interface adopts Chinese;...
-
Page 25: Record Search And Export
User Manual for X7-E1608 Move Cursor to【 Esc】 position, Press【 Enter】 or the left click mouse to exit the keypad, the entered contents will not be written to the edit box 4.2. RECORD SEARCH AND EXPORT: Video search interface contains video file search, video data backup and video playback function. - Page 26 User Manual for X7-E1608 Time Bar: Time bar shows three time points, 0 o'clock, 12 o'clock, 24 o'clock. It shows what type of videos during the time according to the marked channel. Channel No: According to the situation of video for each channel video the day , the video will be displayed on the time line.
-
Page 27: Log Search And Export
User Manual for X7-E1608 Video export: Select the channel that has the video files, click this button, all the video files in the effective time period will be exported to the external USB peripherals, file format can be.264<comprehensive file >, also can be avi format. - Page 28 User Manual for X7-E1608 Log search interface instruction: Start time: the start time for searching log files End time: the end time for searching log files Log types: classification of log search, including the operation log and alarm log and locking log ...
-
Page 29: System Status
User Manual for X7-E1608 4.4. SYSTEM STATUS User can login the interface with no access restrictions. System- Version information System- Modules System-Server status www.en.streamaxtech.com For more information, please visit our website... -
Page 30: Basic Setup
User Manual for X7-E1608 System - Environment System-Storage: 4.5. BASIC SETUP Click setup button and enter the following interfaces: 4.5.1. REGISTER INFOMATION (SETUP VEHICLE INFORMATION) Register information-Device info: Device ID: Currently, it is not useful. www.en.streamaxtech.com... -
Page 31: Time Setup
User Manual for X7-E1608 Register information- Vehicle info Vehicle Number：When connected with PAD, the vehicle number is needed. Vehicle plate：Input manually. Line number：Input manually. Register information—About the driver’s information: Driver number: Input manually. ... -
Page 32: Start Up
User Manual for X7-E1608 Time setup-General Date format: Setup the date format of device Time format: 24 hours or 12 hours Time zone: Range from -12 district ~ +13 district Time-Time Sync Date/Time: Device time, from 2000-01-01 to 2037-12-31 ... -
Page 33: User Setting
User Manual for X7-E1608 ON/OFF mode: 3 modes, including ignition, timer and ignition or timer. Ignition: Input ignition delay time for shutdown delay function Timer: When setup the start mode as Timer, please setup the start time and end time Under this mode, MDVR’s start up or shut down time will not affect the ignition. - Page 34 User Manual for X7-E1608 User name: The default ones are admin and user. User Group: It is divided into administrator and ordinary user. Supports delete user function. Select the user and click "Delete User" button. Please be noted ...
-
Page 35: Network Settings
User Manual for X7-E1608 Modify the user name and password to confirm the operation temporarily. There is no need to verify the old password, Administrator user name can no t be modified. 4.5.5. NETWORK SETTINGS In the basic settings, click Network Settings, enter the following interface, user can set network parameters. - Page 36 User Manual for X7-E1608 WEB port No.: The default is 80, will be used in IE to access this port. Media Port No.: The default is 81, the forwarding server will use this port. Net working settings- Instruction of wifi network：...
-
Page 37: Video Surveillance
User Manual for X7-E1608 Network type: The default one is Mix, 2G/3G ot 2G/3G/4G optional. Dialing parameter：It includes access point, user name, password, data service number, and enter SIM parameters provided by the manufacturer. The default is empty, the program comes with empty arguments by dialing. - Page 38 User Manual for X7-E1608 Splash Screen: Set the live-view screen, it can be single-screen or quad screen or nine screen Channel: Set the channel when live-view Auto Polling Setting Interface: Screen: Totally 32 screens can be added.。...
-
Page 39: Record
User Manual for X7-E1608 Display the information on screen, default is only the time, and the position can not be set. 5.2. RECORD Surveillance-->Record Record Setting Interface: Video type: Default is PAL, NTSC optional Overwrite: Enable the HDD to be overwritten when it is full ... - Page 40 User Manual for X7-E1608 supports 720P Frame Rate: Frame Rate of the record Picture Quality: Picture Quality of the record Record Type: Ignition, Time, Event optional. Each channel can be set separately. The sub-stream and mirror record are the same ...
-
Page 41: Ipc Setup
User Manual for X7-E1608 Record-OSD Embedded key information to video file for easily check when playback. 5.3. IPC SETUP IPC setup: Channel: 1-16 are default for analog cameras. If selected, then analog camera is invalid. 17-20 channel are for IP cameras ... -
Page 42: Data Collection
User Manual for X7-E1608 5.4. DATA COLLECTION 5.4.1 GENERAL General- IO sensor Sensor number: 1~8 optional. Sensor name: IO sensor name. OSD name: The information embedded to video image. Copy: Copy the configuration and use it for other sensors. -
Page 43: Alarm
User Manual for X7-E1608 Unit: KM/H and MPH selectable. Source: GPS, pulse or both optional. Calibration mode: No need to calibrate if setup as satellite mode. 5.5. ALARM 5.5.1 GENERAL General --Speed alarm Name: The current name is Overspeed ... - Page 44 User Manual for X7-E1608 Name：The current name is panic. Enable：Enable or disable Alarm type: 3 levels Trigger: Low or high voltage to trigger alarm. Linkage: When alarm is triggered, link to alarm output, full screen live video, report to server ...
-
Page 45: Maintenance
User Manual for X7-E1608 CH：Associate recording, optional Post-recording：When the alarm is canceled, the time continue to record Lock：Only for alarm video 3G Network: It means when the alarm triggered, should it active the 3G module to dial or not. -
Page 46: Data Export
User Manual for X7-E1608 “IMPORT” to import the parameters, and it will display the notice when import success. Remark: it won’t import the register info and speed adaption info. 5.6.2 DATA EXPORT In the Data export page, you can export the appointed file in any time, such as black box data, log file and so on. -
Page 47: Storage
User Manual for X7-E1608 upgrade one randomly. 5.6.4 STORAGE In this page, user can format all the storage. Storage type: HDD, SD card (Internal), SD card(External), USB drive Free/Total Not exist: Didn’t find the HDD (not install or broken) Unformatted: Means the HDD has been detected, but unformatted.(New HDD) - Page 48 User Manual for X7-E1608 Remark: For, language, MAC address, register info, CMS server info, speed adaption parameter will not change during default settings. www.en.streamaxtech.com For more information, please visit our website...
