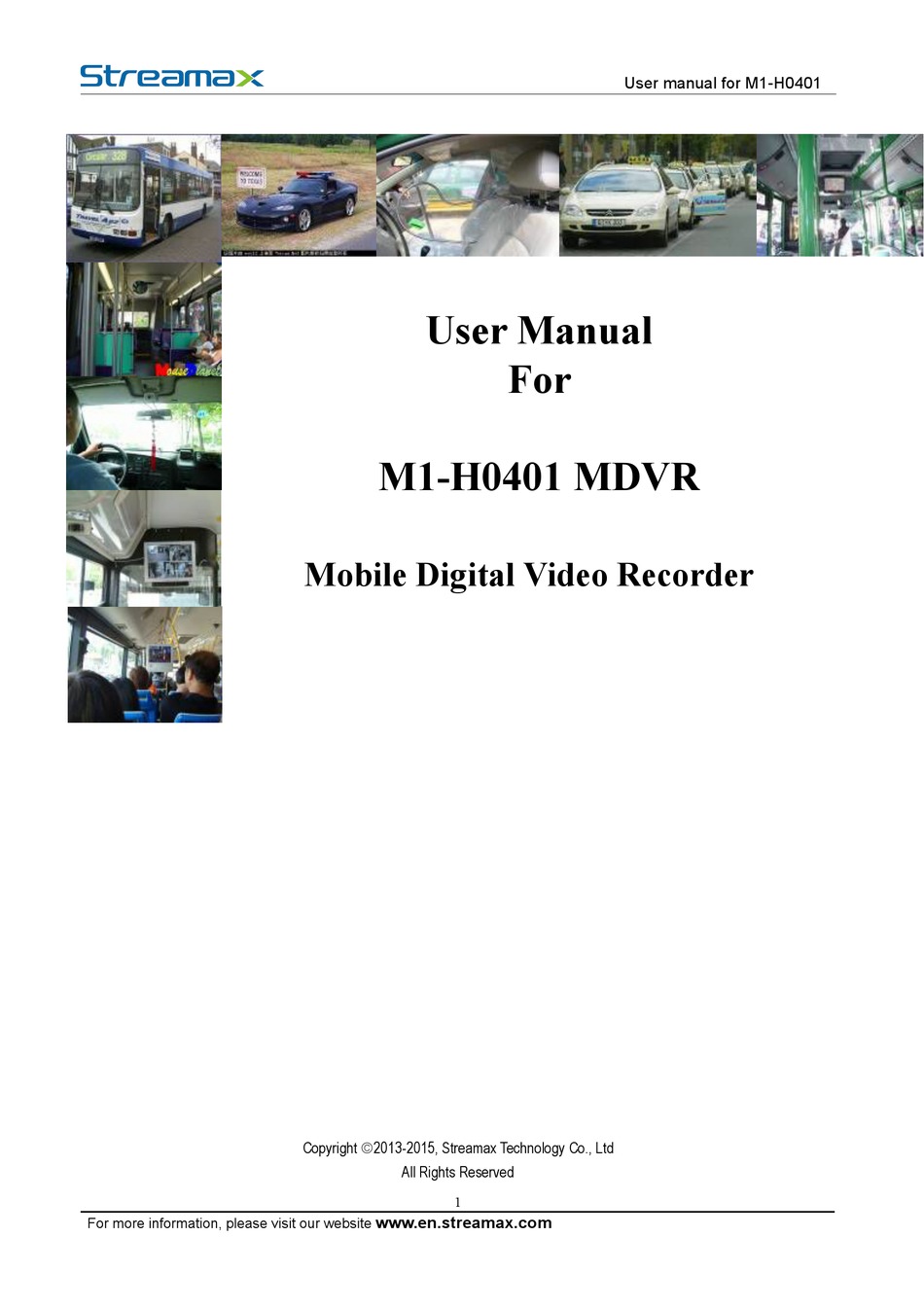

- Page 1 User manual for M1-H0401 User Manual M1-H0401 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved www.en.streamax.com For more information, please visit our website...
- Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. Copyright (2013-2015) www.en.streamax.com...
- Page 3 User manual for M1-H0401 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 4: Product Characteristics
1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW Streamax M1-H0401 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, GPS positioning technology. It supports video recording in 720P, WD1, WHD1, WCIF, D1, HD1 and CIF formats. - Page 5 User manual for M1-H0401 Pre-recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support Playback Channel 1 channel by local playback Playback Search Mode Date/time, channel, event IPC Ethernet 6-pin DJ M12(100M x 1, PON power supply) Locating Location tracking, speed detection and time sync...
-
Page 6: System Diagram
User manual for M1-H0401 1.3. SYSTEM DIAGRAM 1.4. EXTERNAL INTERFACE DIMENSION (Unit: mm) www.en.streamaxtech.com For more information, please visit our website... -
Page 7: Front Panel
User manual for M1-H0401 FRONT PANEL REAR PANEL Serial No. Print Description Power DC 8-36 V Power Input Sensor&Serial The Interfaces of Serial Port and Switch A/V IN1~4 Audio & Video Input 1-4 A/V OUT Audio & Video Output The Interface of PON Power Supply GPS Antenna Interface www.en.streamaxtech.com... -
Page 8: Definition And Pictures Of External Cables
User manual for M1-H0401 1.5. DEFINITION AND PICTURES OF EXTERNAL CABLES ALARM CABLE DEFINITION Alarm and Serial Cables A/V OUT Cable 2. FREQUENTLY ASKED QUESTIONS The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to... - Page 9 User manual for M1-H0401 whether it is broken down. The device can’t record? Usually this problem results from the storage disk or camera. Please follow below steps to check it: Check whether the storage disk is installed, whether it is in good contact, and whether the disk can be read normally in computer.
