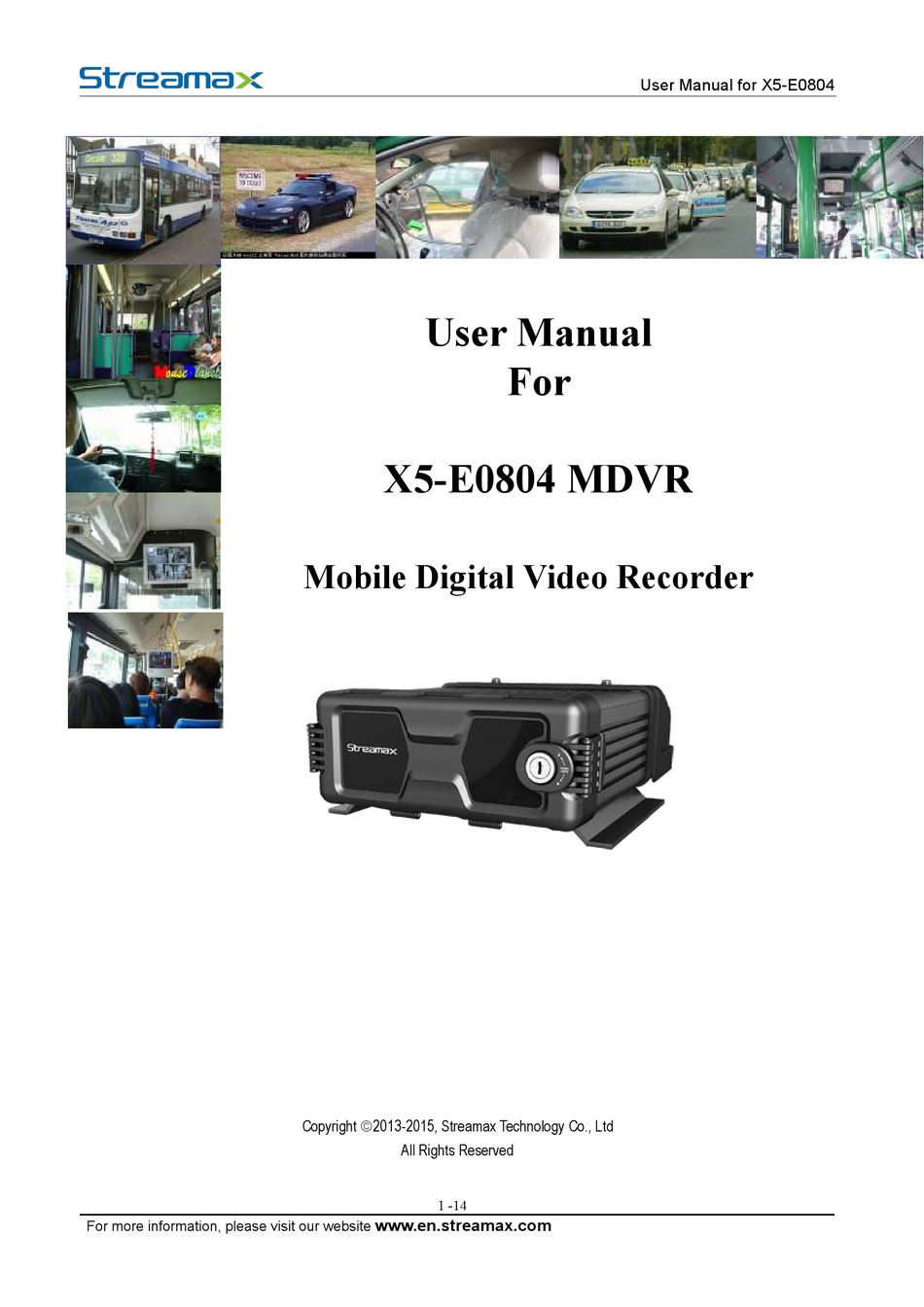

User Manual for X5-E0804

User Manual

For
X5-E0804 MDVR
Mobile Digital Video Recorder
Copyright 2013-2015, Streamax Technology Co., Ltd
All Rights Reserved
1 -14
www.en.streamax.com
For more information, please visit our website

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X5-E0804 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Streamax X5-E0804

  • Page 1: User Manual

    User Manual for X5-E0804 User Manual X5-E0804 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved 1 -14 www.en.streamax.com For more information, please visit our website...
  • Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd (Copyright 2015-2016) 2 -14 www.en.streamax.com...
  • Page 3: Guarantee & Warnings

    User Manual for X5-E0804 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
  • Page 4: Product Characteristics

    1. Product characteristics 1.1. Overview X5-E0804 V4.0 is developed from the brand new platform N9M, which is an advanced and function-extensive Mobile Video Recorder specially designed for network high definition, analog audio & video input and excellent extension. It uses high-speed processor and embedded operating system, patented file system 4.0 to ensure the safety and integration of important data, combining with H.
  • Page 5 User Manual for X5-E0804 WCIF(464X240), D1(704x480), HD1(704x240), CIF(352x240); Digital: 720P(1280X720) Image Quality 8 Levels adjustable Manual/schedule/Alarm(sensor trigger, Recording Mode speed, acceleration, video loss, temperature) Pre-recording 0-60minutes Post-recording 0-30 minutes Mirror Recording Playback Channel 4 channels by local playback Playback Search Mode...
  • Page 6: System Diagram

    User Manual for X5-E0804 1.3. System diagram 6 - 14 www.en.streamax.com For more information, please visit our website...
  • Page 7: External Interface

    User Manual for X5-E0804 1.4. External interface 1) Dimension (Unit: mm) 2) Front Panel and Rear Panel 7 - 14 www.en.streamax.com For more information, please visit our website...
  • Page 8: Hard Disk Installation

    User Manual for X5-E0804 3) Rear Panel Serial number Print Description DC8-36V Power Input Amplifier Amplifier interface Panel Control panel (CP4) Network interface USB interface Serial Serial interface GPS Antenna Interface 3G Antenna Interface 4G Antenna Interface WIFI WIFI Antenna Interface A/V input 1~8, A/V output 1.5.
  • Page 9: Sim Card Installation

    User Manual for X5-E0804 1.6. SIM card installation 1.7. Definition and pictures of external cables Alarm cable definition 9 - 14 www.en.streamax.com For more information, please visit our website...
  • Page 10 User Manual for X5-E0804 10 - 14 www.en.streamax.com For more information, please visit our website...
  • Page 11 User Manual for X5-E0804 Video cable definition AV IN1 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO AV IN2 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO AV IN3 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO AV IN4 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO AV IN5 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO AV IN6 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO AV IN7 (black:GND) red:+12V/0.5A,white:AUDIO,no color:VIDEO...
  • Page 12: Frequently Asked Questions

    User Manual for X5-E0804 2. Frequently asked questions The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
  • Page 13 User Manual for X5-E0804 Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS antenna holder behind the host device. Check whether the antenna receiver is sheltered. It should not be covered by any stuff, which may cause it not to receive signals.
  • Page 14 User Manual for X5-E0804 Check whether the hard disk key is turned off. 14) What is the log in user name and password for new device? The default user name and password are both “admin”. The device password can be set as empty.
