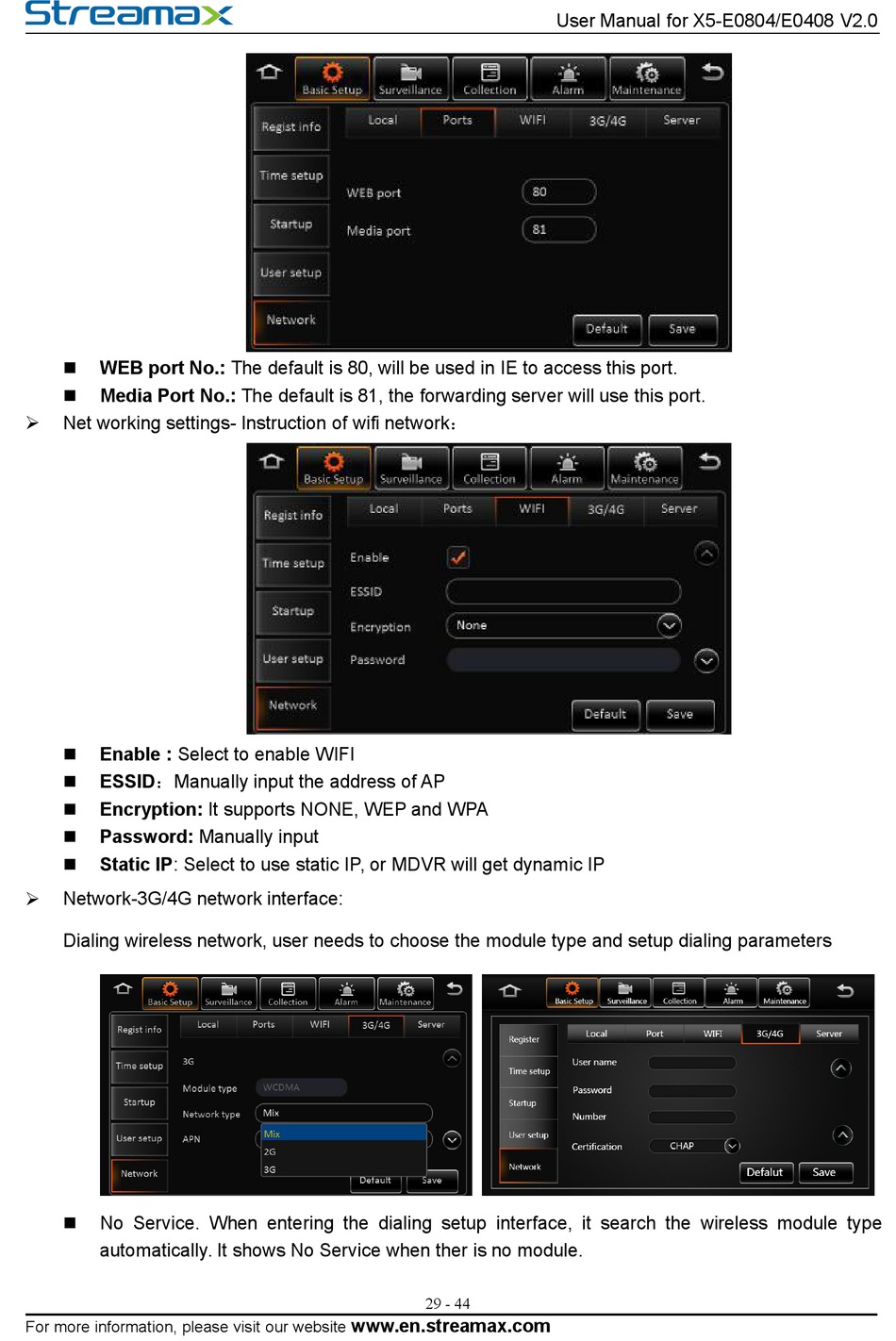

Streamax X5-E0804 User Manual page 29

WEB port No.: The default is 80, will be used in IE to access this port.

Media Port No.: The default is 81, the forwarding server will use this port.

Net working settings- Instruction of wifi network：

Enable : Select to enable WIFI

ESSID：Manually input the address of AP

Encryption: It supports NONE, WEP and WPA

Password: Manually input

Static IP: Select to use static IP, or MDVR will get dynamic IP

Network-3G/4G network interface:

Dialing wireless network, user needs to choose the module type and setup dialing parameters
No Service. When entering the dialing setup interface, it search the wireless module type

automatically. It shows No Service when ther is no module.
For more information, please visit our website
29 - 44
www.en.streamax.com
User Manual for X5-E0804/E0408 V2.0
