Page 1: User Manual

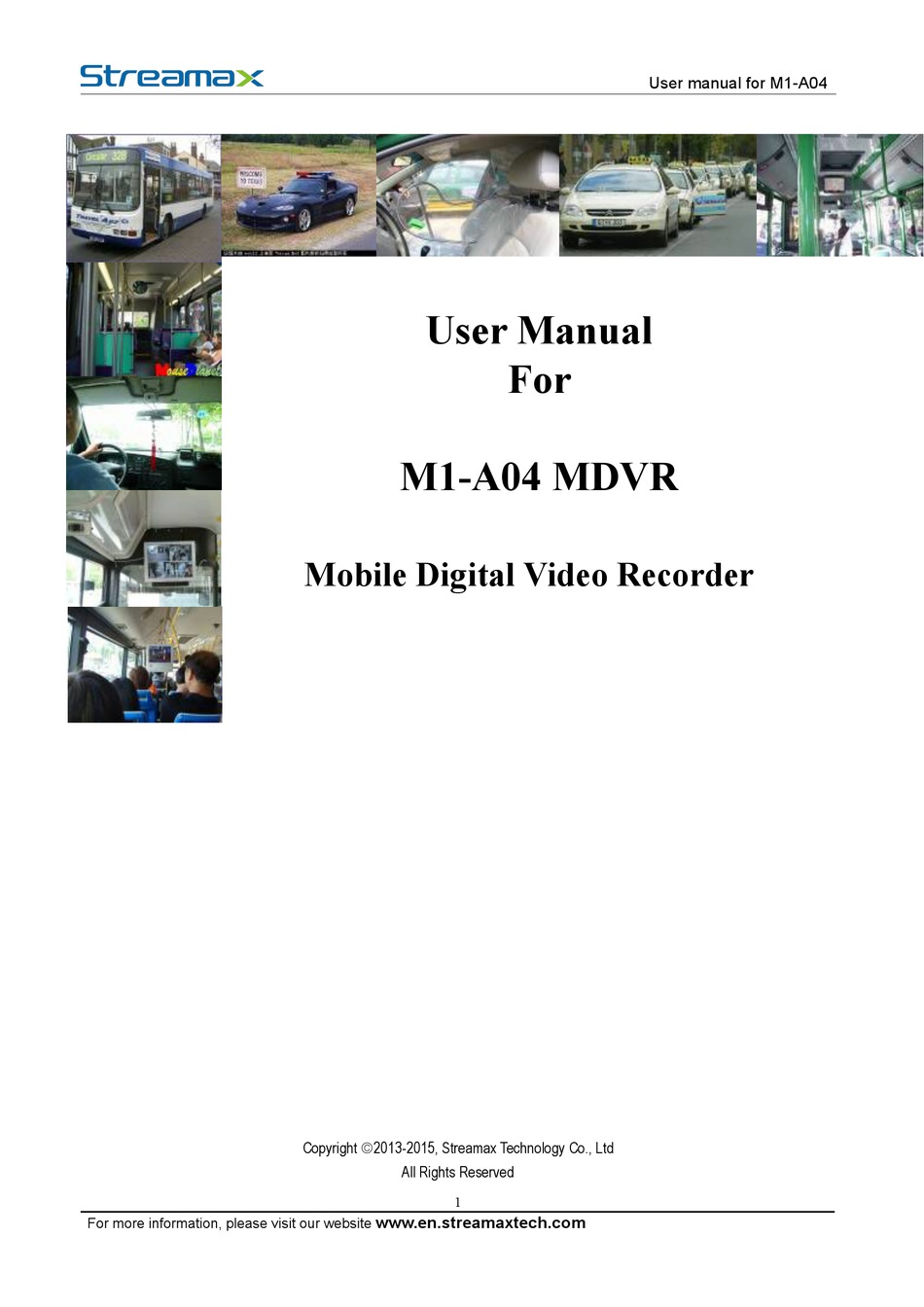

User manual for M1-A04 User Manual M1-A04 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved www.en.streamaxtech.com For more information, please visit our website... - Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. Copyright 2013-2015) www.en.streamaxtech.com...
- Page 3 User manual for M1-A04 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 4: Table Of Contents
User manual for M1-A04 CONTENTS 1. PRODUCT CHARACTERISTICS........................5 1.1. OVERVIEW..............................5 1.2. FEATURES..............................5 1.3. FUNCTIONS............................... 5 1.4. SPECIFICATIONS............................6 1.5. SYSTEM DIAGRAM..........................7 1.6. EXTERNAL INTERFACE.......................... 8 2. QUICK START GUIDE............................10 2.1. USER LOG IN............................10 2.2. LOCAL VIDEO CHECK, PLAYBACK AND BACKUP................ 10 2.3. -
Page 5: Product Characteristics

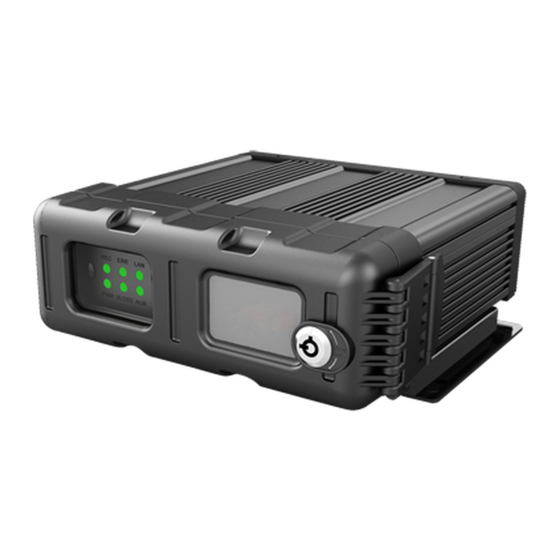

1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW M1-A04 is a cost-effective equipment designed for in-car video surveillance. It has a high-speed processor and embedded operating system, combining with the the most advanced H.264 video compression / decompression technology as well as GPS positioning technology. M1-A04 allows you to use CIF, HD1 and D1 video formats to record, which can be used for data query and accident analysis. -
Page 6: Specifications
User manual for M1-A04 1.4. SPECIFICATIONS Items Technical Index Product Series M1-A04 Live view recording, playback, network, GPS Function Overview location tracking Linux 2.6.24 System Control Mode IR remote control Input 4 channels (Aviation-din X4) Output 1 channel (Aviation-din X1) -
Page 7: System Diagram
User manual for M1-A04 Impact current: input 13.5V@1.3A Current Working current: input 13.5V@1.2A, 27V@0.5A Standby current: 0A Dimension 142*144.8*54.2mm Physical (L x W x H) Characteristic Weight 0.66 Kg Operating Temperature -25℃- +60℃ Environment Relative Humidity 8%-90% CE ， FCC ， IOS7637-3 Certificates 1.5. -
Page 8: External Interface
User manual for M1-A04 1.6. EXTERNAL INTERFACE DIMENSION FRONT PANEL www.en.streamaxtech.com For more information, please visit our website... - Page 9 User manual for M1-A04 Serial No. Print Description Remote control receiving Recording indicator Error indicator GPS status indicator Power indicator Video loss indicator VLOSS Alarming indicator For upgrade, video export Record fireproof box information in Main card mirror recording Vice card...
-
Page 10: Quick Start Guide
User manual for M1-A04 2. QUICK START GUIDE 2.1. USER LOG IN After the device boots up, press LOGIN/LOCK or SETUP to enter the GUI as follow. ENTER DEVICE NO.: Input the number according to the number in the bracket. -
Page 11: Storage Device Format
Format new SD card when used at the first time. 2.4. DUAL CARD RECORDING MODE M1-A04 supports dual card loop recording and mirror recording, you can change this in RECORD >> OTHER. It will automatically format when you change the setting. -
Page 12: System Upgrade
User manual for M1-A04 EN: Off means the corresponding event just records the log instead of triggering the video. And the event information could be checked in the event file. On means the corresponding event records log and triggers video. -
Page 13: Reference Appendix
User manual for M1-A04 3. REFERENCE APPENDIX 3.1. STORAGE CAPACITY CALCULATION IMAGE QUALITY & STREAMS Image Stream 2048 1536 1230 1024 (Kbps) 1280 RECORD FILE SIZE CALCULATION Rec. file size for each channel is: Recording time (s) x Stream (Kbps) / 8 / 1024 = File Size (MB) e.g. -
Page 14: Frequently Asked Questions
User manual for M1-A04 3.2. FREQUENTLY ASKED QUESTIONS The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
