30 Installation
_______________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX

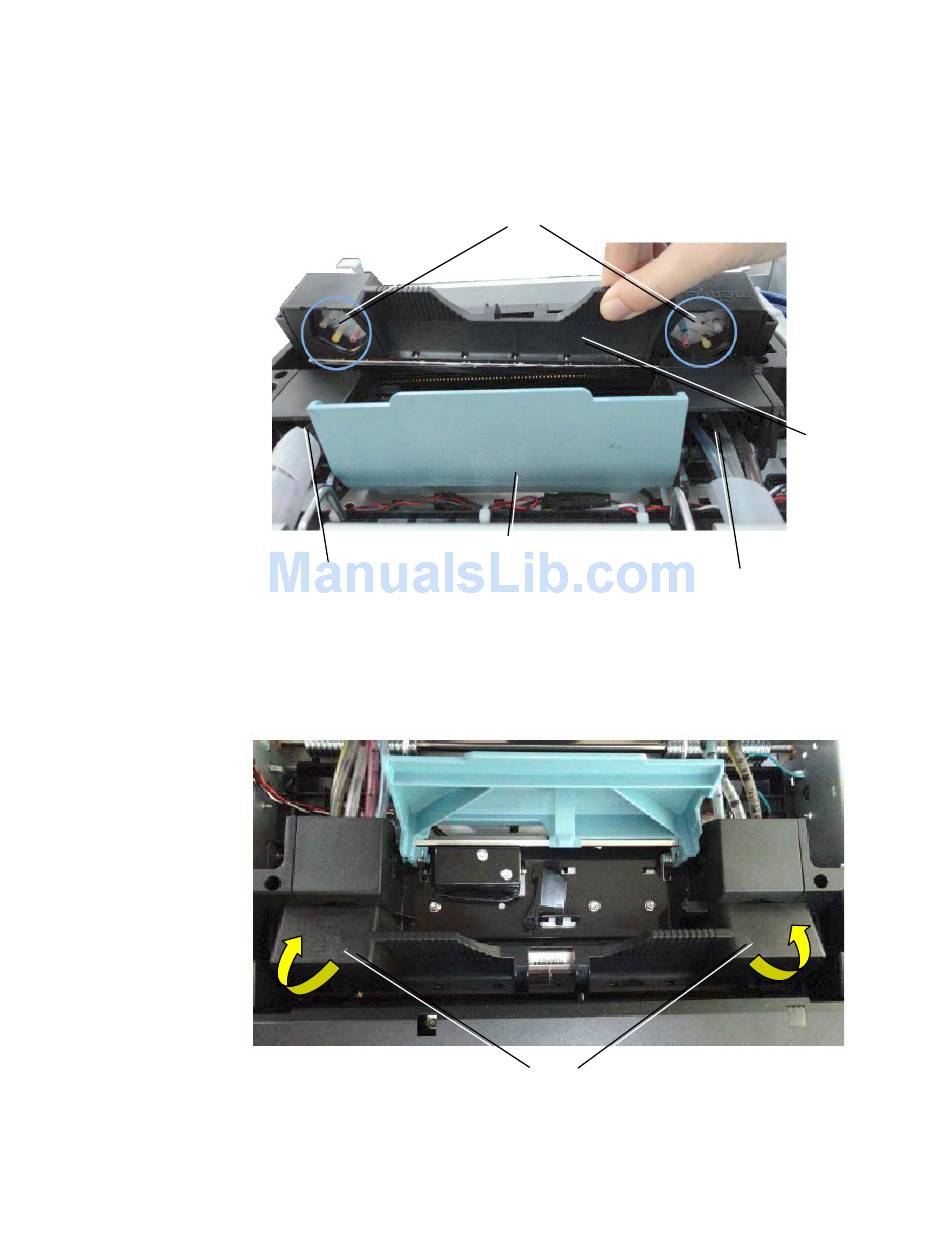

10. Make the fluidic couplings of printhead toward the ink tubes.
Printhead cover (back side)
Ink tubes
11. Tilt the top of the printhead toward the rear of the printer about
20°, and gently seat the back of the printhead in the printer.
Operator's Manual MICROPLEX iF60C
Fluidic Couplings
Top of the Printhead
Printhead
Ink tubes
Edition 1.0
