13. Tilt the top of the printhead toward the rear of the printer about
20°, and gently seat the back of the printhead in the printer.
14. When the back side of the printhead is firmly seated, gently
rotate the printhead into position against the stops on the
printhead connector board.
If the printhead will not rotate into position, do not force it!
Gently retry the last two working steps, until you are successful.
Operator's Manual MICROPLEX iF60C

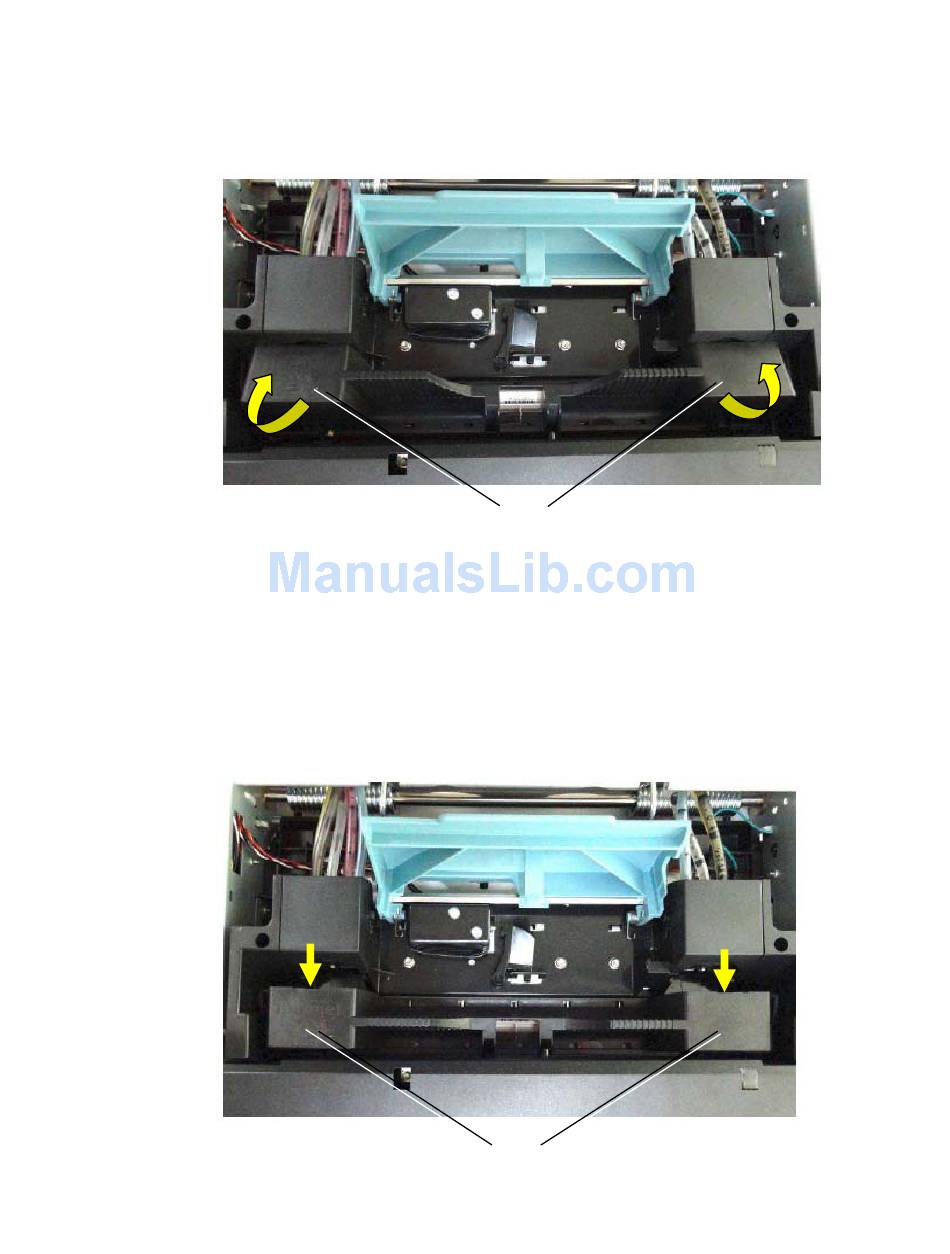

Top of the Printhead
Top of the Printhead
