MICROPLEX

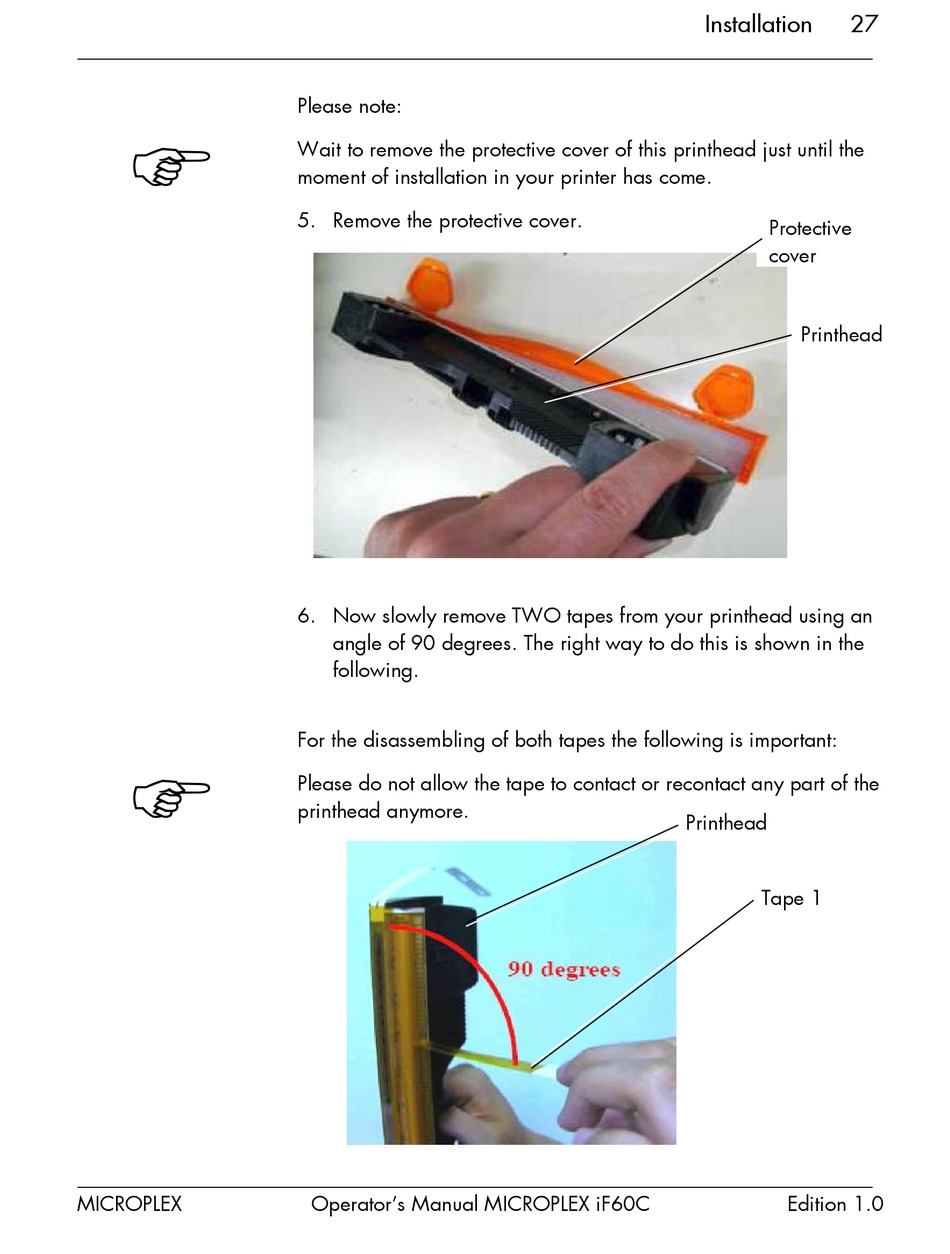

Please note:
Wait to remove the protective cover of this printhead just until the
moment of installation in your printer has come.
5. Remove the protective cover.
6. Now slowly remove TWO tapes from your printhead using an
angle of 90 degrees. The right way to do this is shown in the
following.
For the disassembling of both tapes the following is important:
Please do not allow the tape to contact or recontact any part of the
printhead anymore.
Operator's Manual MICROPLEX iF60C
Installation 27
Protective
cover
Printhead
Printhead
Tape 1
Edition 1.0
