Summary of Contents for Ganz ZN-DNT352XE SERIES

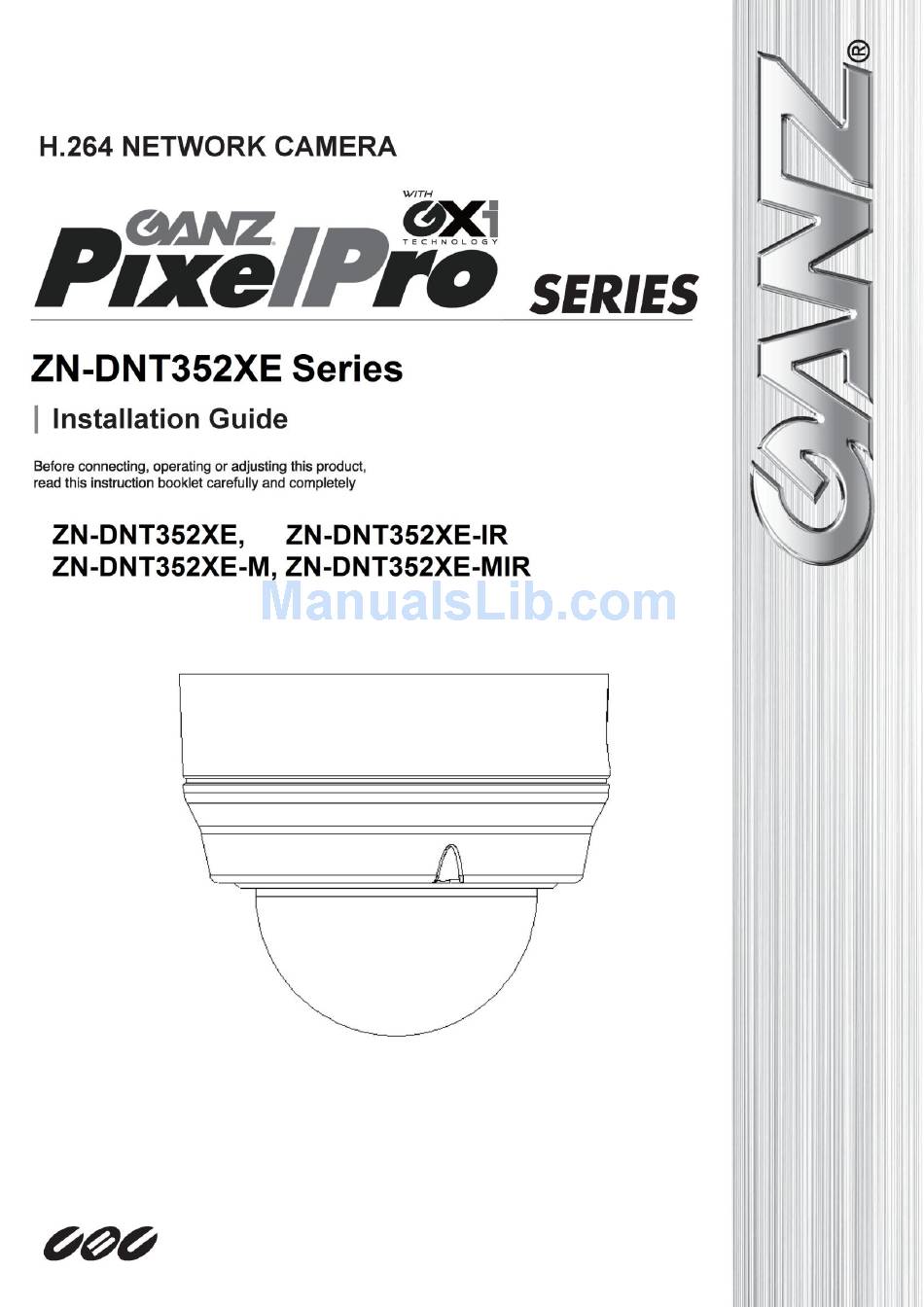

- Page 1 03-2014-B...
-
Page 2: Precaution
PixelPro GXi Series ZN-DNT352XE Series Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
PixelPro GXi Series ZN-DNT352XE Series Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 8 4.1. Installing the camera ......................8 4.2. Adjusting the angle of the camera ................... 10 4.3. -
Page 4: Features
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 1. FEATURES Camera SONY EXMOR 1/2.9” (XE-M model) and 1/2.7” 1080p CMOS Image Sensor True Day/Night DC Auto Iris Lens Remote Zoom/Focus Control (One click Focus) [XE-Mxx model only] ... -
Page 5: Package Contents
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor DC Power Jack Cable Terminal Blocks Video Output Cable Screws and Anchors... -
Page 6: Part Names
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 3. PART NAMES XE-xx models ○ ○ ○ Reset button located on the PCB. ○ ○ ○ * Models and their appearance are subject to change without any prior notice. XE-Mxx models ... - Page 7 PixelPro GXi Series ZN-DNT352XE Series Installation Guide ③ Zoom button(s) Use the buttons to manually determine correct zoom. ④ PAL/NTSC button Pressing the button cycles through PAL, NTSC, and no video output mode No video > PAL > NTSC. ⑤ Terminal connector Connector for cable connection of video output, audio input/output and digital input/output.
-
Page 8: Installation
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 4. INSTALLATION 4.1. Installing the camera 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. -
Page 9: Installation Template
PixelPro GXi Series ZN-DNT352XE Series Installation Guide Installation Template stallation template φ152 φ (Unit: m) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package separately. Caution... -
Page 10: Adjusting The Angle Of The Camera
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 4.2. Adjusting the angle of the camera Adjust the lens to the desired position by manually moving its upper lens shell, reinforced body or horizontal platform in the following directions. A. To adjust lens position, C. -
Page 11: Xe-Mxx Models (Remote Zoom/Focus Control Models)
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 4.3.2. XE-Mxx models (Remote Zoom/Focus control models) Use Zoom In/Out buttons (TELE/WIDE) to adjust the camera’s angle of view. Use Focus buttons (FAR/NEAR/Focus) to automatically/manually determine correct focus. Lens Zoom/Focus adjustment can be fully controlled by web user interface too. -
Page 12: Setting The Image Attribute
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 4.4. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The... -
Page 13: Connections
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 5. CONNECTIONS N / A N / A N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD N / A N / A ① Audio connection The camera provides a mono audio input and output. - Page 14 PixelPro GXi Series ZN-DNT352XE Series Installation Guide ② Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor as the following figures. The interface type can be controlled by web user interface.
- Page 15 PixelPro GXi Series ZN-DNT352XE Series Installation Guide ④ Analog Video Out connection Use a 75 ohm video coaxial cable to connect to a monitor’s analog video input and check the camera’s connection and its image focus at the installation site. Be sure to press the output configuration button (PAL/NTSC button) to see the video (Refer to “3.
-
Page 16: Configuration
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 17: Custom Ip Environment
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 18: View Video On Web Page
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install”... -
Page 19: View Video Using Ipadmin Tool
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 20: Reset
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 6.3. Reset Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 21: Safe Mode
PixelPro GXi Series ZN-DNT352XE Series Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 22 PixelPro GXi Series ZN-DNT352XE Series Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 23: Appendix (A): Specifications
PixelPro GXi Series ZN-DNT352XE Series Installation Guide APPENDIX (A): SPECIFICATIONS Summary ZN-DNT352XE Camera Module Image Sensor 1/2.7” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 ELECTRICAL Min. Illumination Color: 0.5 lux , BW: 0.001 lux (DSS ON) - Page 24 PixelPro GXi Series ZN-DNT352XE Series Installation Guide ZN-DNT352XE-MIR Camera Module Image Sensor 1/2.7” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 ELECTRICAL Min. Illumination Color: 0.5 lux , BW: 0lux (IR LED ON) AGC Control Auto 3.0(w) –...
-
Page 25: Electrical Characteristics
PixelPro GXi Series ZN-DNT352XE Series Installation Guide Electrical Characteristics Power Source 12VDC / PoE IEEE802.3af Power Consumption XE : 14.52W@12VDC (Heater On) XE-IR : 14.16W@12VDC XE-M: 13.8W @ 12VDC XE-MIR: 15.12W@12VDC Video Output 1 Vp-p, 75Ω, Composite Audio Input MIC in, 0.178Vp-p, 10K Ω... -
Page 26: Mechanical Condition
PixelPro GXi Series ZN-DNT352XE Series Installation Guide Mechanical Condition Material Aluminum Die Casting Color Ivory Housing : 155 (Ø) x 129(H) mm Dimension Dome : 100(Ø) mm Weight (Approx) 1.2kg * The specifications above are subject to change without any prior notice. -
Page 27: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZN-DNT352XE Series Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 28: Appendix (C): Dimensions
PixelPro GXi Series ZN-DNT352XE Series Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-B... -
Page 29: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZN-DNT352XE Series Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 03-2014-B... -
Page 30: Revision History
PixelPro GXi Series ZN-DNT352XE Series Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 03/12/2013 Created 09-2013-A 09/04/2013 Minor updates 09-2013-B 09/27/2013 Added a caution for leak prevention on 4. Installation 03-2014-A 03/28/2014 Correct explanation for PoE 03-2014-B 03/31/2014 Modified for ZN-DNT352XE series...
