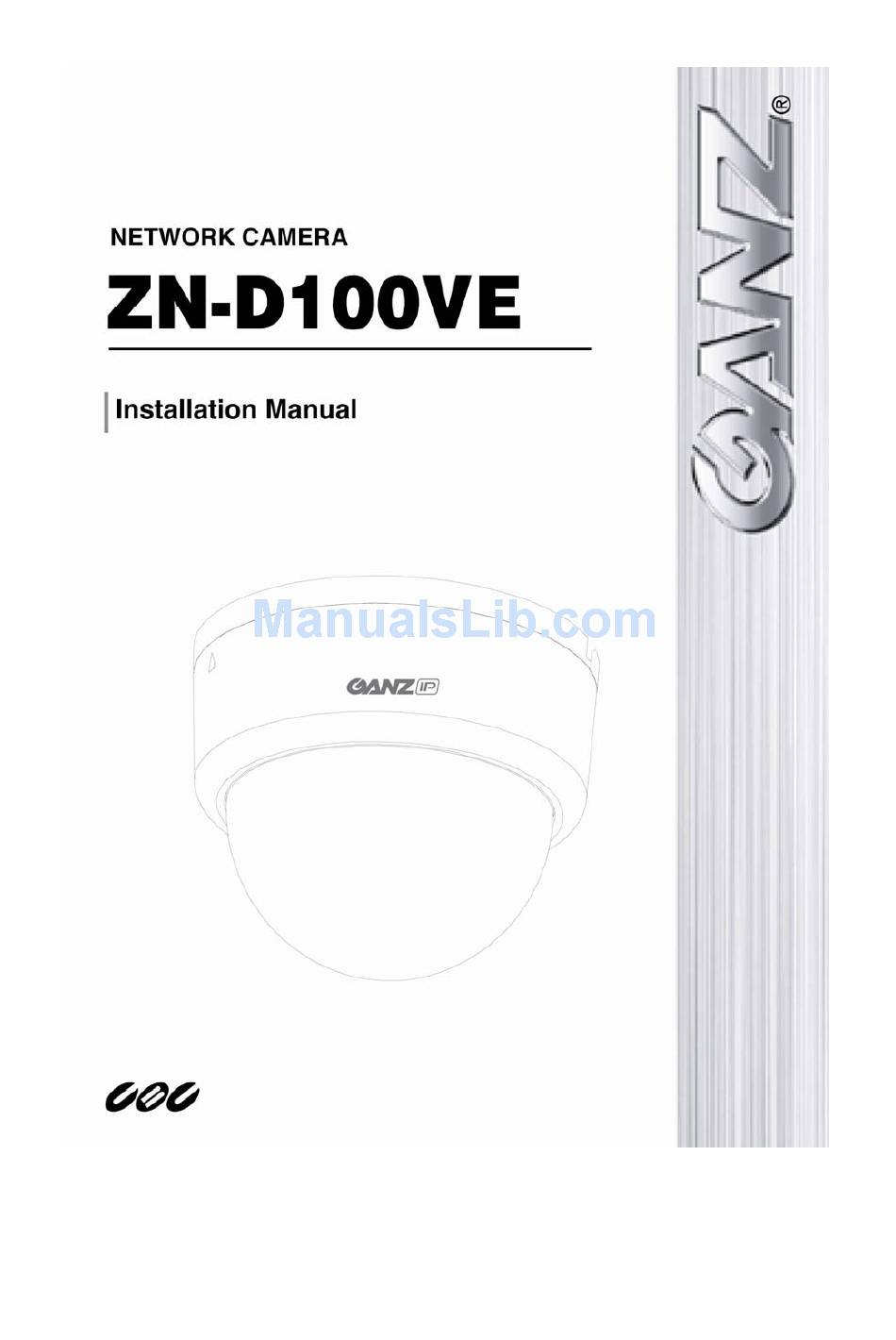

- Page 1 ...
- Page 2 ZN‐D100VE Installation Manual INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un‐insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating ...
-
Page 3: Table Of Contents
ZN‐D100VE Installation Manual Table of Contents 1. FEATURES ....................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. INSTALLATION ......................7 4.1. Installation Template ......................8 4.2. Manual adjustment for 3‐axis movements ................ 8 4.3. Lens Focus Adjustment ...................... 9 4.4. Setting the Image Attribute....................9 5. CONNECTIONS ...................... 10 6. CONFIGURATION ....................11 6.1.Set up network environment .................... 11 6.2.View video on web page ....................11 6.2.1.View video using ZNS‐GIT IPAdmin Tool .............. -
Page 4: Features
ZN‐D100VE Installation Manual 1. FEATURES Camera • Indoor Fixed Mini Dome IP Camera • High Quality Compression in real time streaming • 1/4” VGA CMOS Streaming • Dual streaming mode (such as different codec/resolution/bit rate and so on.) • De‐interlacing on DSP • Burnt‐in text supported • Unicast/Multicast supported Video/Audio • Video compression: H.264/MPEG4/MJPEG (30FPS@D1) • Audio compression: G.711(µLaw, aLaw)/PCM • Video Motion Detection supported • 2‐way mono audio supported Network • RTSP/ HTTP protocol supported • 10/100 Base‐T Ethernet Additional Features • Built‐in Video Content Analysis • OSD supported • SDK (Software Development Kit) provided ... -
Page 5: Package Contents
ZN‐D100VE Installation Manual 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: ZN‐D100VE DC power adaptor Extension cable (for LAN, power connector, and audio ) Quick Installation Guide Installation Template Screws and Anchor block Hex wrench driver The above contents are subject to change without prior notice. Note 2010/2‐1 03A.02 5 ... -
Page 6: Part Names
ZN‐D100VE Installation Manual 3. PART NAMES ① ② ③ * Models herein and their appearance are subject to change without any prior notice. ①LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base‐T Ethernet. ② Audio in/ out Cable ZN‐D100VE has a mono audio input and a mono audio output. ③Power Adaptor Connector (DC 12V) ZN‐D100VE needs a DC 12V 1A adapter for power supply. 2010/2‐1 03A.02 6 ... -
Page 7: Installation
ZN‐D100VE Installation Manual 4. INSTALLATION Connect the LAN cable, power supply cable, and the video loop out cable with the ZN‐D100VE. Place the installation template on the 2) ceiling. Drill two holes on the template and 3) insert anchor blocks into the holes. Fasten the ZN‐D100VE with screws. Put the dome cover on the main 4) ... -
Page 8: Installation Template
ZN‐D100VE Installation Manual 4.1. Installation Template 2‐Ø6 Ø125 Ø30 4.2. Manual adjustment for 3-axis movements After installation, make a manual adjustment on the inner liner. Perform 3‐axis movements manually by turning the inner liner to different directions as above, and check if it moves properly. After adjustment, fasten the screw of the rotation axis. ... -
Page 9: Lens Focus Adjustment
ZN‐D100VE Installation Manual 4.3. Lens Focus Adjustment 1) Open the dome cover from the device. A 2) Uncover the latch(C) carefully to remove the lens cover. 3) Rotate the lens focus ring(D) to adjust the focus and fasten the screw(E) using the included hex wrench. 4) Push the lens cover to the module C until the latch(C) clicks into position. D 5) Attach the dome cover by aligning protrusion on the body (B) with the inverted triangle mark of the dome cover (A). Turn the dome cover E clockwise to lock. * Models herein and their appearance are subject to change without any prior notice. 4.4. Setting the Image Attribute You can set the image attribute of camera through the webpage. The menu of image attribute can be seen under Setup > Video & Audio > Video‐in > Attribute ... -
Page 10: Connections
ZN‐D100VE Installation Manual 5. CONNECTIONS LAN DC 12V Make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the IP device. Caution Power Adaptor Connector (DC 12V) Caution 2010/2‐1 03A.02 10 ... -
Page 11: Configuration
ZN‐D100VE Installation Manual 6. CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment between your PC and the device is different, change your PC’s settings as below. IP address : 192.168.xxx.xxx Subnet mask: 255.255.0.0 6.2.View video on web page View the live video on a web page using your IP device and its IP address. You can use the ZNS‐ GIT IPAdminTool or enter the IP address on the web page. 6.2.1.View video using ZNS-GIT IPAdmin Tool ZNS‐GIT IPAdminTool automatically searches all activated GANZ network camera and encoder series and shows the product name, IP address, MAC address and etc. ZNS‐GIT IPAdminTool is provided with SDK at the following SDK path. {SDK root}\BIN\TOOLS\AdminTool\ 2010/2‐1 03A.02 11 ... - Page 12 ZN‐D100VE Installation Manual To use the ZNS‐GIT IPAdminTool and view the live video on a web page: 1. Start ZNS‐GIT IPAdminTool. Names and info of currently activated devices appear as a list. 2. Right‐click on the desired device and select Web view. 3. Select Continue to this website on the Security Certificate Alert page. (The explanation and captured images at this manual are mainly on the basis of Internet Explorer 7.0) 4. Click pop‐up blocked and install the ActiveX control as below. You need to install the ActiveX for displaying the images. 2010/2‐1 03A.02 12 ...
- Page 13 ZN‐D100VE Installation Manual 5. Wait for a few seconds while the web page loads. The live video is displayed as below. 6. If the live video is not displayed and “Can not Create XMLDOMDocument Install MSXML4.0” message is shown as below, please download and Install from the link below. http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B‐B4F2‐46DA‐ B4B6‐C5D7485F2B42&displaylang=en (VCA Library requires MS XML 4.0 library which is an xml parser made by Microsoft.) 2010/2‐1 03A.02 13 ...
-
Page 14: View Video Using Ip Address
ZN‐D100VE Installation Manual 6.2.2.View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1. Convert a MAC address to an IP address or check the IP address on the ZNS‐GIT IPAdminTool. (The MAC address is attached on the side or bottom of the device.) MAC address = 00‐1C‐B8‐C0‐14‐B1 → IP address = 192.168.20.177 the Hexadecimal number to Decimal number. 2. Open a web browser and enter the IP address of the device. 3. Click Continue to this website on the Security Certificate Alert page. 4. Click pop‐up blocked and install the ActiveX control. You need to install the ActiveX for displaying the images. 5. Wait for a few seconds while the web page loads. The live video is displayed. 6.3. -
Page 15: Appendix (A): Specifications
ZN‐D100VE Installation Manual APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/4” VGA CMOS Effective Pixels 640 x 480 Scanning system Progressive Scan CMOS Horizontal 550 TV Lines Resolution Min. 3 Lux Color Illumination 0.1 Lux DSS On Focal Length 3.6 mm, F.# 2.0, Board type, Lens Lens for Security Camera Day & Night Not Supported Video Compression Format H.264, MPEG‐4, MJPEG Selectable per Stream Number of Streams Dual Stream, Configurable Resolution , 4CIF , VGA, CIF, QCIF Compression FPS 30 fps Deinterlacing Supported (DSP) Motion Detection Supported ... -
Page 16: Electrical Characteristics
ZN‐D100VE Installation Manual Electrical Characteristics Video Output 1Vp‐p, 75Ω Audio Input Linein, 1.43Vp‐p(Min 1.35Vp‐p, max 1.49 Vp‐p), 39 KΩ Audio Output Lineout, 46mW Power, 16 Ω Power Source(Approx) 12 V DC 290 mA Environment Condition Operating Temperature 0 ˚C ~ 50 ˚C (32˚F ~ 122 ˚F) Operating Humidity Up to 85% RH 2010/2‐1 03A.02 16 ... -
Page 17: Vca (Video Content Analysis)
ZN‐D100VE Installation Manual VCA (Video Content Analysis) VCA Presence (Included as Standard) High Performance Advanced Tracking Algorithm, Low False Alarm Rate Easy to Use Intuitive Web Browser Interface Detection Zones Multi‐segment Polygons and Lines On‐screen Display Real‐time Display of Tracking Data and Events Stream or Analog video out Burnt‐in Annotation (※Analog video out support can vary depending on the device model and hardware version and the firmware version) VCA Surveillance (Optional) Camera Tampering, Direction, Stopping, Loitering, Entering, Detection Behavior Exiting, Appear, and Disappear Filters 3D Behavior Perspective Corrected Size and Speed Filters Statistics Counting Functions and Other Statistics Meta Data Binary XML Format Image Stabilization (Optional) Electronic Stabilization Removes Camera Sway ... -
Page 18: Appendix (B): Dimensions
ZN‐D100VE Installation Manual APPENDIX (B): DIMENSIONS Ø124 R50 (Unit: mm) 2010/2‐1 03A.02 18 ... -
Page 19: Appendix (D): Trouble Shooting
ZN‐D100VE Installation Manual APPENDIX (D): TROUBLE SHOOTING Checking your Firmware Firmware is software that determines the functionality of the device. One of your first actions when troubleshooting a problem should be to check the currently installed version. The latest version may contain a correction that fixes your particular problem. The current firmware version in your device can be seen under Setup > About > Version New firmware can be downloaded at the FTP site. When you download firmware from the FTP, your product will receive the latest available functionality. Always read the upgrade instructions and release notes available with each new release, before updating the firmware. Please contact us to get an FTP account. ...
