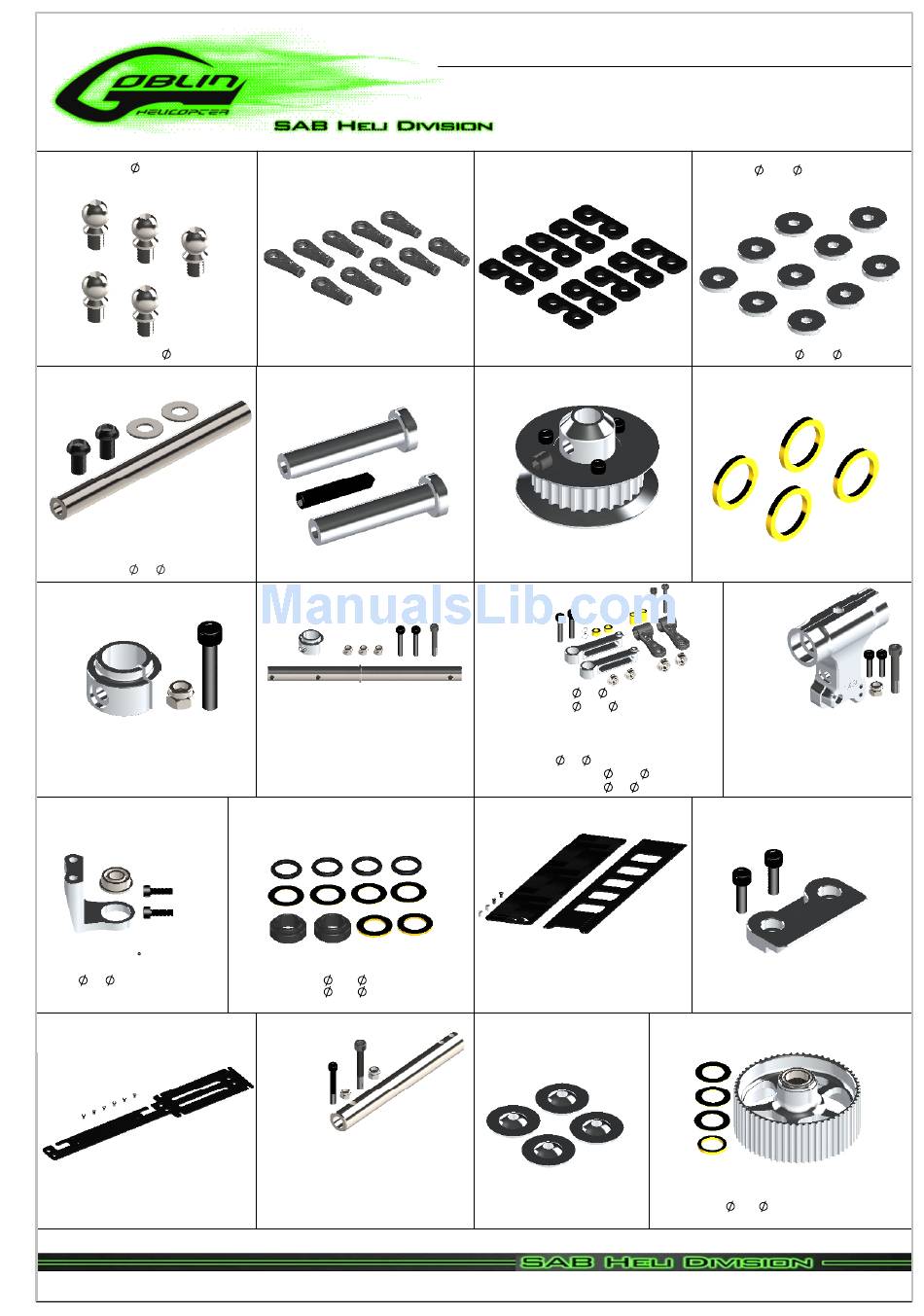

Goblin SPEED Manual page 41

Uniball M3x4 5H3
[H0065-S]
- 5 x Uniballs M3x4 5H3.5.
Spindle
[H0079-S]
- 1 x Spindle.
- 2 x Button Head Cap Screw
M6x10mm.
- 2 x Washer 6x 14x1.5mm
M4 Locking Collar
[H0121-S]
- 1 x M4 Locking Collar.
- 1 x Socket Head Cap Screw
M4x22mm.
- 1 x Metric Hex Nylon Nut M4 H5.
Bearing Support
[H0142-S]
- 1 x Bearing 3 Support.
- 1 x Flanged Bearing
6x 13x5mm.
- 2 x Socket Head Cap
Screws M3x8mm.
Carbon Fiber ESC Support
(H0153-S)
- 1 x Carbon Fiber ESC Support.
- 6 x Flat Head Socket Cap
M2,5x5mm.
Copyright © 2013 - SAB Heli Division - All rights reserved
Plastic Ball Link
[H0066-S]
10 x Plastic Ball Link
Boom Spacer
[H0082-S]
- 2 x Boom Spacer.
- 1 x Set Screw M3x20mm
Main Shaft
[H0122-S]
- 1 x Main Shaft.
- 1 x M4 Locking Collar
- 1 x Socket Head Cap Screw
Shouldered M4x24mm.
- 2 x Socket Head Cap Screws
M4x22mm.
- 3 x Metric Hex Nylon Nuts M4 H5.
Damper
[H0144-S]
-2 x Damper Derlin.
-2 x Washers 10x 16x1mm.
-4 x Washers 10x 16x0.2mm.
-4 x Orings 3050.
Secondary Shaft
[H0157-S]
- 1 x Secondary Shaft M3.
- 1 x Socket Head Cap Screw
Shoulder M2.5x19mm.
- 1 x Metric Hex Nylon Nut
M2,5H3,5.
- 1 x Socket Head Cap Shoulder
M3x22mm.
- 1 x Metric Hex locknut Nuts M3H4.
Servo Spacer
[H0075-S]
-10 x Servo Spacers.
27T Tail Pulley
[H0102-S]
- 1 x 27T Tail Pulley.
- 1 x Set Screw M4x4mm.
- 6 x Socket Head Cap Screws
M2x5mm.
Radius Arm
[H0132-S]
-2 x Radius Arms.
-2 x Spacer Arm 3x 5x2.7mm.
-2 x Spacer Arm 2.5x 4x6.3mm.
-2 x Uniball Radius Arms.
-2 x Socket Head Cap Screws M3x16mm.
-2 x Socket Head Cap Screws M2.5x18mm.
-2 x Washers 3x 4x0.5mm.
-2 x Flanged Bearings 2.5x 6x2.5mm.
-2 x Flanged Bearings 3x 7x3mm.
Battery Tray
[H0149-S]
- 1 x Battery Plate.
- 1 x Battery Protection.
- 2 x Cylinder M2.5.
- 2 x Flat Head Cap Screw
M2.5x5mm
- 1 x Heat Shrink.
Aluminum Blade Spacer
[H0158-S]
- 4 x Aluminum Blade Spacer
Chapter 18, Spare Parts
Washer 3.1x 12x1.8mm
[H0078-S]
- 10 x Washers 3.1x
Bush One Way
[H0110-S]
- 4 x Bush One Ways.
Center Hub
[H0135-S]
- 1 x Center Hub.
- 1 x Socket Head Cap Screw
Shouldered M4x24mm.
- 1 x Metric Hex Nylon Nut
M4 H5..
- 2 x Socket Head Cap Screws
M3x12mm.
Stop Battery Tray
[H0150-S]
- 1 x Stop Battery Tray.
- 2 x Socket Head Cap
Screw M2.5x8mm.
Double Bearing One Way Pulley
[H0171-S]
- 1 x Aluminum Double Bearing
One Way Pulley.
- 3 x Shims 10x 16x0,2mm.
- 1 x One Way Brass Bushing.
12x1.8mm.
Page 39
