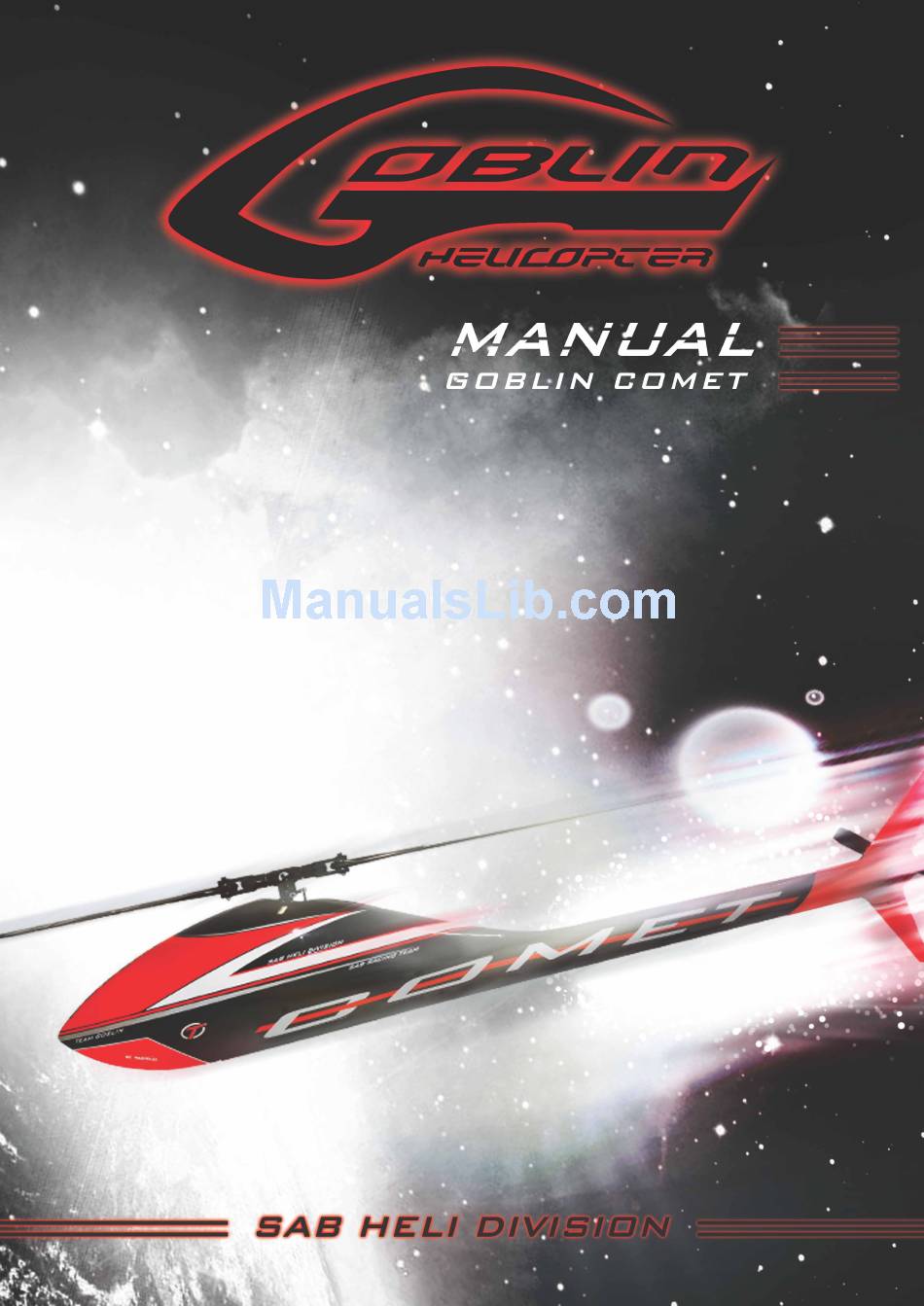

Goblin Comet Manual

Radio controlled sab heli division
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goblin Comet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goblin Goblin Comet

Summary of Contents for Goblin Goblin Comet

  • Page 2 Chapter 1, Serial Number Please read this user manual carefully, it contains instructions for the correct assembly of the model. Please refer to the web site www.goblin-helicopter.com for updates and other important information. VERY IMPORTANT In the Manual bag you will find a product card with your serial number. Please take a moment to register your kit online via our web site at: http: //www.goblin-helicopter.com...

  • Page 3: Important Notes

    Chapter 2, Important Notes IMPORTANT NOTES *This radio controlled helicopter is not a toy. *This radio controlled helicopter can be very dangerous. *This radio controlled helicopter is a technically complex device which has to be built and handled very carefully. *This radio controlled helicopter must be built following these instructions.

  • Page 4: Components And Box

    Chapter 3, Components and Box ADDITIONAL COMPONENTS REQUIRED TOOLS, LUBRICANTS, ADHESIVES *Generic pliers *Electric Motor: 12S – 480/600Kv, 14S – 450/560Kv Maximum diameter 64mm, *Hexagonal driver, size 1.5, 2, 2.5, 3, 4, 5mm Maximum height 80mm, *4mm T-Wrench *5.5mm Socket wrench (for M3 nuts) Pinion shaft diameter 8mm *8mm Hex fork wrench (for M5 nuts) *Speed controller: minimum 160A but in according with setup...

  • Page 5: Aluminum Frame And

    Chapter 4, Aluminum Frame and Transmission BAG 1, Foam 3 Left Main Frame Assembly Servo Support SR (H0603-S) Single Servo Support (H0748-S) Socket Head Cap Screw M2.5x8mm (HC020-S) ESC Support (H0610-S) Socket Head Cap Screw M3x6mm (HC044-S) Frame Spacer (H0609-S) Socket Head Cap Side Case SL Screw M2.5x8mm...
  • Page 6 Chapter 4, Aluminum Frame and Transmission Foam 1,2,3 , BAG 1 Right Main Frame Assembly Side Case SR (H0604-S) Swash plate Socket Head Cap Anti-Rotation Guide Screw M3x8mm (H0756-S) (HC050-S) Socket Head Cap Screw M3x6mm (HC044-S) Finishing Washer M3 (H0007-S) Socket Head Cap Screw M3x8mm Socket Head Cap...
  • Page 7 Chapter 4, Aluminum Frame and Transmission BAG 1, Foam 2 60T Pulley Assembly (H0171-S) Bearing 15x4mm (HC420-S) One Way Bearing Main Frame 14x12mm Assembly (HC442-S) 60T Pulley (H0171-S) One Way Bearing 14x12mm (HC442-S) Bearing 15x4mm (HC420-S) Front Tail Pulley Assembly (H0172-S) Socket Head Cap Screw M2x10mm...
  • Page 8 We recommend metal servo horn the 120° placement of the servos inside Goblin means the arms are difficult to access. For this reason it is advisable to ensure alignment of the servo arms (and sub trim set) before installation of the servos in the model. Proceed with installation following the instructions below.

  • Page 9: Installation Of The Motor

    H0175-20-S - 20T Pinion = ratio 10.7:1 H0175-24-S - 24T Pinion = ratio 8.9:1 H0175-21-S - 21T Pinion = ratio 10.2:1 H0175-25-S - 25T Pinion = ratio 8.6:1 Some example configurations: GOBLIN COMET CONFIGURATIONS Rev:01 Battery Motor Motor Pulley RPM Max...
  • Page 10 Chapter 6, Installation of The Motor Foam 2 , BAG 3 Tail Belt Idler Assembly ...x2 (H0740-S) 21T Pulley Flanged Bearing (H0175-21-S) 7x3mm (See page 8 for optional Set Screw (HC402-S) pulley selection). M4x6mm (HC153-S) Tail Belt Idler [H0069] Button Head Cap Flanged Bearing Screw M4x8mm 7x3mm...
  • Page 11 Chapter 6, Installation of The Motor Foam 2 MOTOR BELT TENSION *Assemble the motor and pinion to its mounting plate. *Fit the motor assembly into position. *With the minimum centre distance it is easy to install the belt. First put the belt on the motor pinion. *Then put the belt around the big pulley.

  • Page 12: Installation Of The Esc

    Chapter 7, Installation Of The ESC BOX 3, BAG 4 ESC INSTALLATION The speed controller (ESC) is installed in the front of the helicopter. Figure 1: Shows the installation of the ESC support. Figure 2: Shows the installation of the ESC. Note: We recommend de-burring the edges to minimize the risks of electrical wire cuts, etc.
  • Page 13 Chapter 8,Head System Foam 1, BAG 5 Uniball Arm Assembly ... x2 Radius Arm Assembly ... x2 Center Hub Assembly Flanged Bearing Flanged Bearing 2.5x 6x2.5mm 7x3mm Radius Arm (HC400-S) (HC402-S) (H0132BM-S) eg: Microlube GL261 Pivot Head (H0721-S) Spindle (H0079-S) Uniball Radius Arm [H0205]...

  • Page 14: Main Module Completion

    Chapter 9, Main Module Completion Foam 1 , Box 2, BAG 6 Metric Hex Swashplate Assembly Uniball Nylon Nut M4 (H0422BM-S) (H0063-S) (HC212-S) Uniball M3 (H0065-S) Socket Head Cap Screw M3x12mm (HC062-S) Uniball M3 (H0065-S) Socket Head Cap Screw M3x12mm Socket Head Cap (HC062-S) Socket Head Cap...
  • Page 15 Chapter 9, Main Module Completion BAG 6 Note: Route the ESC throttle / servo wires as shown, It is recommended to use straps HA040 to keep the wires in place Head Preliminary Setup Adjust the linkage as shown. The linkage Rod A has thead right/left. Note: For Speed flight you can consider assimetrical pitch setup ( ex: -10 / +16 ).

  • Page 16: Tail System

    Chapter 10, Tail System Foam 4, Bag 7 Tail Rotor Hub Assembly Tail Pitch Slider Assembly Tail Pitch Slider 01 Flanged Bearing [H0055BM] 12x3.5mm (HC418-S) eg: Microlube GL261 Spindle Shaft (H0329-S) Oring Spacer (HC335-S) 8.1x 9.2x3.2mm [H0029] Tail Shaft (H0860-S) Tail Pitch Slider 02 (H0407-S) Tail Pitch Slider 03...
  • Page 17 Chapter 10, Tail System BAG 8, Foam 4 Bell Crank Lever Assembly Tail Side Plate Assembly Bell Crank Base Flanged Bearing (H0058BM-S) 13x5mm Tail Side Plate Right (HC414-S) (H0752R-S) Flat Head Cap Washer Screw M2.5x8mm 4x0.5mm (HC128-S) (HC176-S) Tail Pin (H0264-S) Flanged Bearing 7x3mm...
  • Page 18 Chapter 10, Tail System BOX 3, BAG 9 Tail Servo Assembly 15-16mm Tail Servo Assembly The distance between the axis and the ball must Uniball M2 be between 15-16mm (H0064-S) Tail Servo Tail Servo Support (H0751-S) Servo Spacer (H0075-S) Socket Head Cap Screw M2x6mm (HC004-S) Socket Head Cap...
  • Page 19 Chapter 10, Tail System BAG 9, BOX 2 Tail boom Assembly Plastic Ball Link (H0066-S) Flat Head Cap Screw M3x10mm (HC135-S) Tail System Assembly Flat Head Cap Screw M3x10mm (HC135-S) INSTALLATION OF THE LANDING GEAR and TAIL FINS Comet Bottom Tail Fin (H0882-S) Standard Landing Gear Red Button Head Cap...

  • Page 20: Assembly Of The Main Module

    Chapter 11, Assembly of the Main Module BAG 10 TAIL SERVO / RX BATTERY WIRES Before assembling the transmission module, it is necessary to set up the connection of the servo and 2S power supply SAB recommends using an additional 2S independent battery (2S-2500). A double connector connection is preferred.
  • Page 21 Chapter 12, Installation Of FBL, RX and Canopy BAG 10 FLYBARLESS SYSTEM The FBL unit have to be installed on the FBL support H0754. Please check the following picture. Note: We recommend to make 2 hole in the fuselage to Socket Head Cap Screw position the antenna wires.

  • Page 22: Battery System

    Chapter 13, Battery System Bag 11, Foam 4 Battery Support Battery Support Assembly (H0733-S) Center Support Socket Head Cap (H0875-S) Screws M3x12mm (HC062-S) Frame Battery Washer 3.2x 6x0.5 Support Battery Plate (HC180-S) (H0734-S) (H0760-S) Socket Head Cap Screws M4x10mm (HC102-S) Flat Head Cap Screws M3x5mm (HC132-S)
  • Page 23 Chapter 13, Battery System BAG 11 Battery Assembly SAB Battery 6S-4800 Double Side Tape Battery Support Assembly SAB Battery 6S-4800 SAB Battery 2S-2500 Use 2 Straps (HA023) to keep the batteries in position . Battery System Assembly Uniball M3 Battery (H0065-S) Assembly Battery Block...

  • Page 24: In Flight

    Chapter 14, In Flight BAG 12, BOX 3 OPERATIONS BEFORE FLIGHT *Check the CENTER of GRAVITY. For high-speed flight, the model should never be nose-up. *Set up the remote control and the flybarless system with utmost care. *It is advisable to test the correct settings of the remote and flybarless system without main blades or tail blades fitted. *Check that all wiring is isolated from the carbon/aluminum parts.

  • Page 25: Maintenance

    (left to right or right to left) and always at a safe distance. * The main and tail blades included with the Goblin COMET are not suitable for 3D flight, they are optimized for sport and speed flying ONLY. If you would like to perform 3D maneuvers with your Goblin COMET, we recommend using other blades designed for this application.

  • Page 26: Exploded Views

    Chapter 16, Exploded Views Aluminum Frame and Transmission Assembly Aluminum Frame and Transmission Assembly Name Specification Quantity Name Specification Quantity H0748 Single Servo Support Aluminum H0007 Finishing Washer M3 Aluminum H0756 Anti-Rotation Guide Carbon Fiber H0891 Bushing One Way Brass H0876 Rubber Preload Rubber H0121 M4 Locking Collar...
  • Page 27 Chapter 16, Exploded Views MOTOR MOUNT SYSTEM and BATTERY SYSTEM Name Specification Quantity H0069 Tail Belt Idle Aluminum MOTOR MOUNT SYSTEM and BATTERY SYSTEM H0175-21 Motor Pulley Aluminum Name Specification Quantity H0176 Motor Bushing Brass HC096 Button Head Cap Screw M4x6mm H0760 Battery Plate...
  • Page 28 Chapter 16, Exploded View Servo Assembly 1, 2, 3 Head System Head System Code Name Specification Quantity Code Name Specification Quantity HA024 Oring H0031 Uniball Spacers Aluminum HC005 Button Cap Screws M2x5mm HC008 Head Cap Screws M2 x 8mm H0063 Uniballs M3x4 5 H18...
  • Page 29 Chapter 16, Exploded view 9 11 TAIL SYSTEM Name Specification Quantity H0029 Spacer 8.1 x 9.2 x 3.2mm TAIL SYSTEM Name Specification Quantity H0054 Tail Pitch Slider 02 Aluminum H0881 Comet Top Tail Fin Carbon Fiber H0055BM Tail Pitch Slider Link Aluminum Black Matte H0058BM Bell Crank Base...

  • Page 30: Spare Parts

    Chapter 17, Spare Parts Finishing Washer M3 Bell Crank Base Uniball M3 Uniball M2.5 [H0007-S] [H0058-S] [H0063-S] [H0064-S] - 5 x Uniballs M2 5H6. - 5 x Uniball Spacers. - 5 x Socket Cap Screws M2x8mm. - 10 x Finishing Washer M3. - 1 x Bell Crank Base.
  • Page 31 Chapter 17, Spare Parts 22T Pulley 23T Pulley 24T Pulley 25T Pulley [H0175-22-S] [H0175-23-S] [H0175-24-S] [H0175-25-S] - 1 x 22T Pulley. - 1 x 23T Pulley. - 1 x 24T Pulley. - 1 x 25T Pulley. - 1 x Set Screw M4x4mm. - 1 x Set Screw M4x4mm.
  • Page 32 Chapter 17, Spare Parts Main Shaft Secondary Shaft Servo Support SR Side Case SR [H0601-S] [H0602-S] [H0603BM-S] [H0604BM-S] - 1 x Secondary Shaft M3. - 1 x Main Shaft. - 1 x Socket Head Cap Screw - 1 x Socket Head Cap Screw Shoulder M2.5x19mm.
  • Page 33 Chapter 17, Spare Parts 26T Tail Pulley Swashplate Anti-Rotation Guide 27T Tail Pulley Tail Shaft [H0859-26-S] [H0756-S] [H0859-27-S] [H0860-S] - 1 x Swashplate Anti-Rotation Guide - 2 x Finishing Washer M3. - 2 x Socket Head Cap - 1 x 26T Tail Pulley. - 1 x 27T Tail Pulley.
  • Page 34 Chapter 17, Spare Parts [HC002-S] [HC004-S] [HC008-S] [HC018-S] [HC020-S] [HC022-S] - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap - 8 x Socket Head Cap Screws M2x5mm.
  • Page 35 Chapter 17, Spare Parts [HC206-S] [HC212-S] [HC218-S] [HC230-S] [HC232-S] [HC242-S] - 5 x Shims - 5 x Shims - 10 x Metric Hex Nylon - 10 x Metric Hex Nylon - 10 x Metric Hex Nylon - 3 x Thread Rods Nuts M3H4.
