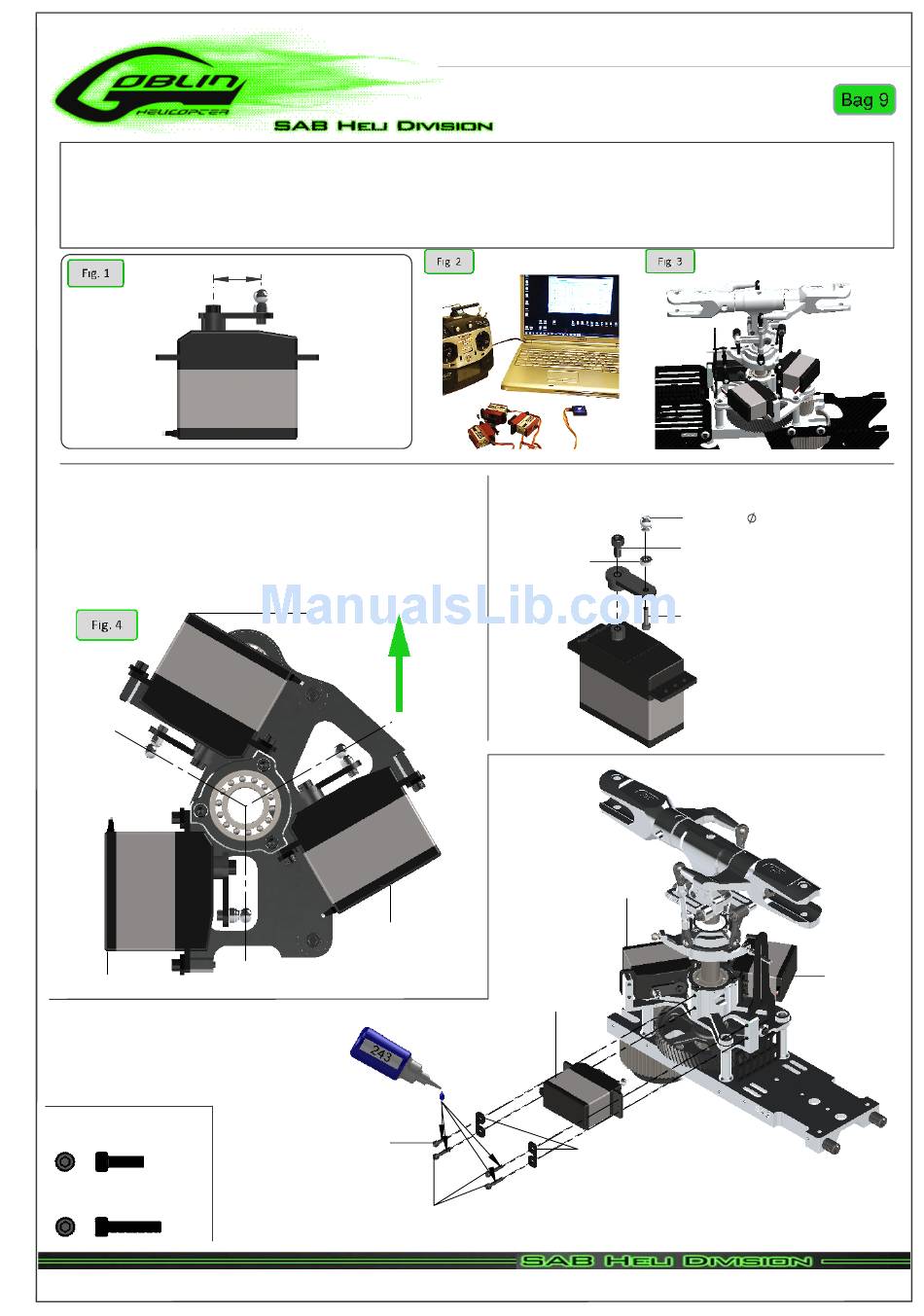

INSTALLATION OF SWASHPLATE SERVOS
The linkage ball must be positioned between 17-19 mm out on the servo arm (figure 1). The 120° placement of the servos inside Goblin means
the arms are difficult to access. For this reason it is advisable to ensure alignment of the servo arms (and sub trim set) before installation of
the servos in the model (figure 2). Proceed with installation following the instructions below. Figure 3 shows a completed installation.
17-19mm
ASSEMBLY OF THE BALL ON THE HORN.
The rods going from the servos to the swash plate must be as vertical as
possible. Not all servos are equal, so to better align them you can choose
to use the supplied spacer H0031. Figure 4 illustrates this.
Servo 3
Socket Head Cap Screw
M2.5x8mm
..... x3
Socket Head Cap Screw
M2.5x12mm
..... x9
Copyright © 2012 - SAB Heli Division - All rights reserved
Servo 2
Servo 3
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Socket Head Cap
Screw M2.5x12mm
(HC026-S)
Chapter 8, Installation Of Swashplate Servos
SERVO ASSEMBLY 1, 2, 3
Uniball Spacer
(H0064-S)
Servo 2
Servo 1
Servo Spacer
(H0075-S)
Uniball M2 5H6
(H0064-S)
Socket Head Cap Screw
M3x6mm
(HC044-S)
Socket Head Cap Screw M2x8mm
(HC008-S)
or
Socket Head Cap Screw M2x6mm
(HC004-S) without Uniball Spacer
Servo 3
