The Goblin Speed is the best compromise between a 3D helicopter and a full body, aerodynamically efficient, speed helicopter.
The Goblin Speed incorporates all the best parts and components SAB Heli Division has to offer in order to support the most
extreme power systems available in the market today.
The kit combines incredible design features with good aerodynamic properties.
Please read this user manual carefully, it contains instructions for the correct assembly of the model.
Please refer to the web site www.goblin-helicopter.com for updates and other important information.
Inside Box 5, you will find Bag 21. This bag contains your serial number tag. Please take a moment to register your kit online via
our web site at:
It is extremely important that you take a moment to register your helicopter with us. This is the only way to ensure that you are
properly informed about changes to your kit, such as upgrades, retrofits and other important developments. SAB Heli Division cannot
be held responsible for issues arising with your model and will not provide support unless you register your serial number.
To mount the serial number tag on your helicopter, please refer to page 31.
Thank you for your purchase, we hope you enjoy your new Goblin helicopter!
SAB Heli Division
INDEX
1 - Serial Number
2 - Important Notes
3 - Components and Box
4 - Carbon frame Assembly
5 - Trasmission Assembly
6 - Main rotor
Main rotor diameter: 1626mm (with 720mm blades)
Main blade length: up to 720mm
Tail rotor diameter: 283mm
Tail blade length: 104mm rouded tip ( up to 105mm)
Main shaft diameter: 12mm
Tail shaft diameter: 6mm
Spindle diameter: 10mm
Copyright © 2013 - SAB Heli Division - All rights reserved
VERY IMPORTANT
http: //www.goblin-helicopter.com
7 - Assembling The Modules
8 - Installation of Swashplate Servos
9 - Installation of The Motor
10 - Installation of The ESC
11 - Installation of Flybarless Unit and RX
12 - Tail Assembly

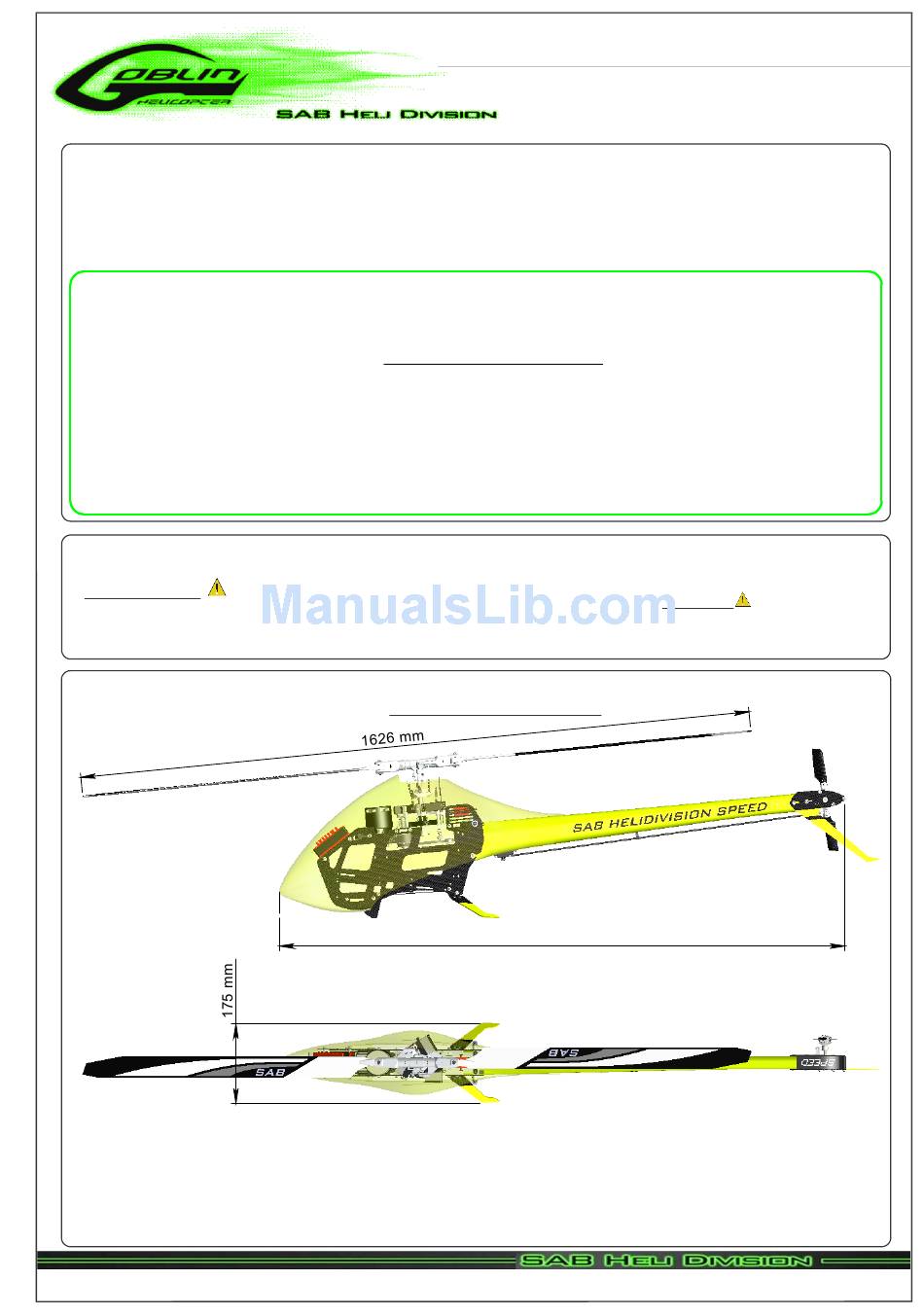

SPECIFICATIONS
Weight including standard electronics: 4010g (excluding batteries).
Motor size: Maximum 64mm diameter, maximum height 80mm.
Battery compartment: 75x58x350mm.
Chapter 1, Serial Number
13 - Installation of the Boom, Canopy
14 - Battery
15 - In flight
16 - Maintenance
17 - Exploded Views
18 - Spare Parts
1320 mm
