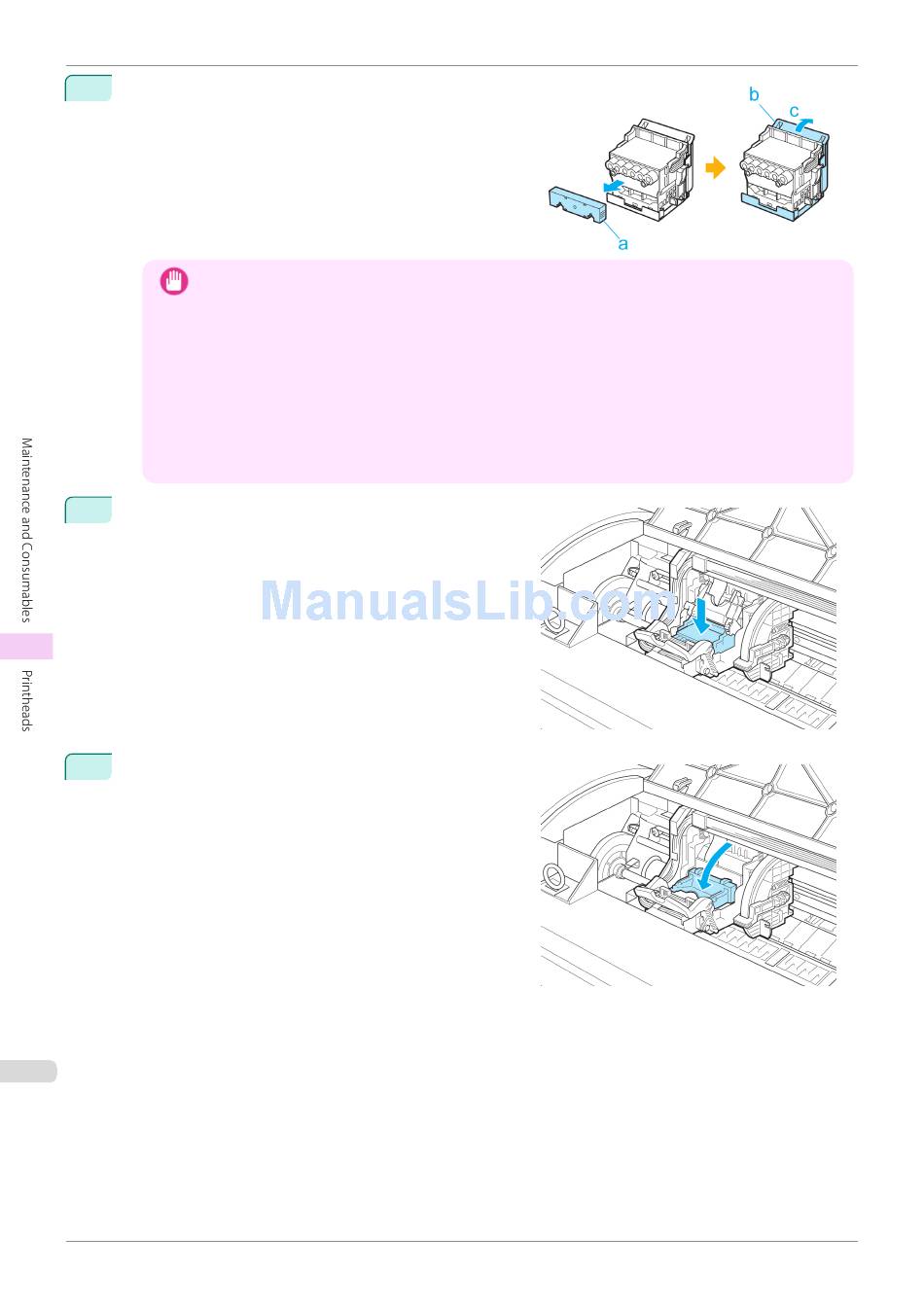

Replacing the Printhead
7
While firmly holding the Printhead you have removed, use
your other hand to remove the orange Protective Part (a).
Squeeze the grips (c) of Protective Part (b) and pull it down
to remove it.
Important
8
With the nozzles facing down and the metal contacts to-
ward the back, insert the Printhead into the Carriage. Care-
fully push the printhead firmly into the Carriage, ensuring
that the nozzles and metal contacts do not touch the car-
riage.
9
Pull the Printhead Fixer Cover down toward the front to
lock the Printhead in place.
550
The inside surface of the Protective Part (a) and Protective Part (b) is coated with ink to protect the noz-
•
zles. Be careful not to touch these surfaces when removing the caps.
•
The Printhead contains ink to protect the nozzles. We recommend removing Protective Part (b) as you
hold it over the Printhead package or safely out of the way to avoid spilling ink and staining your clothes
or the surrounding area. If ink accidentally spills, wipe off the ink with a dry cloth.
•
If you need to put a Printhead somewhere temporarily before installation, do not keep the nozzles and
metal contacts facing down. If the nozzles or metal contacts are damaged, it may affect the printing qual-
ity.
•
Do not reattach the removed Protective Part. Dispose of these materials in accordance with local regula-
tions.
