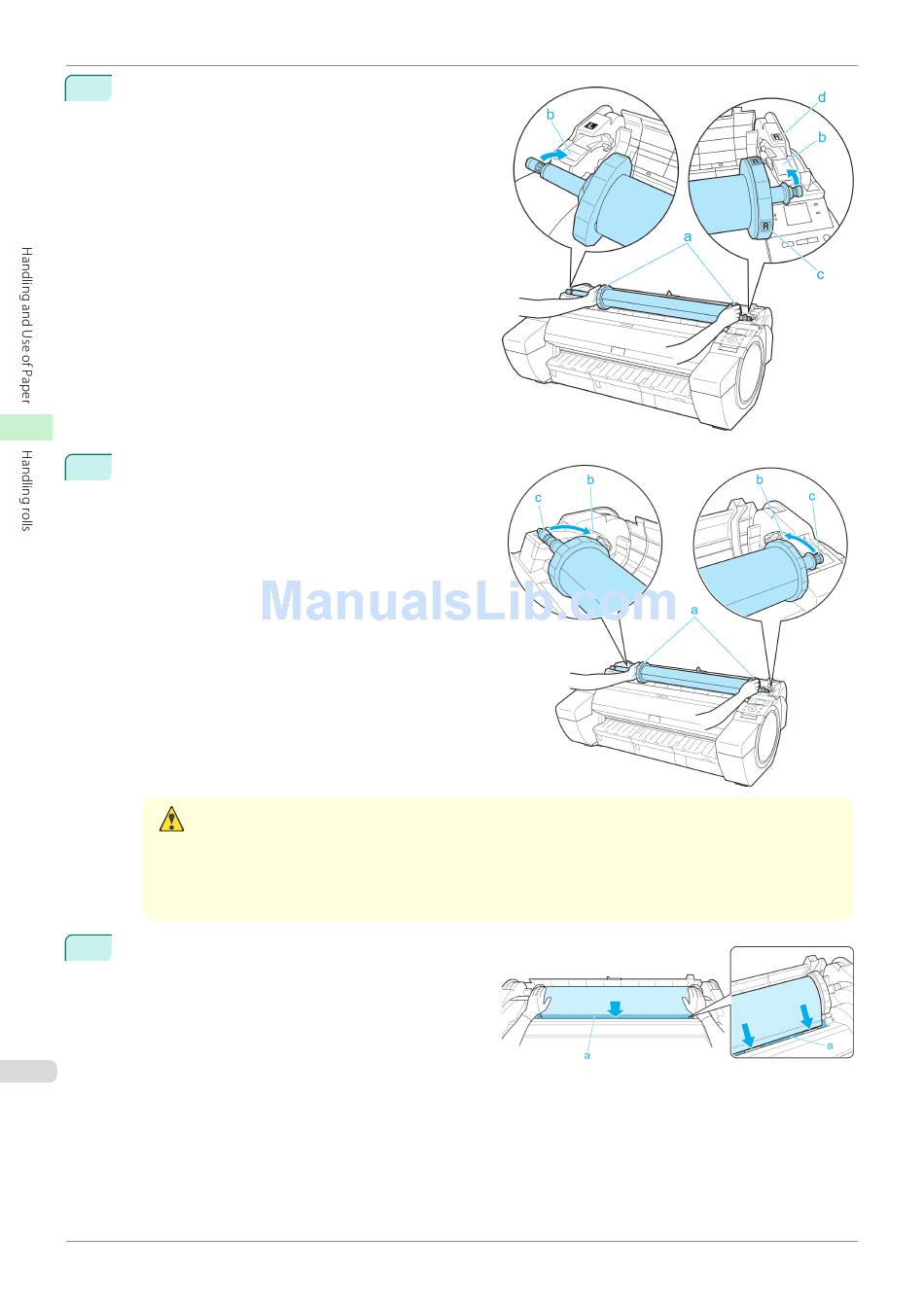

Loading Rolls in the Printer
4
Holding the Roll Holder flange (a), rest the Roll Hold-
er shaft on the Roll Ledge (b).
At this time, position the holder so that the R label (c)
on the [W label (c) on the Roll Holder flange is
aligned with the R label (d) on the printer .
5
Holding the Roll Holder flange (a), guide the holder
along the Roll Loading Slots (b) on both ends, keep-
ing the holder level as you load it in the Roll Holder
Slot.
Caution
6
Insert the edge of the roll in the Paper Feed Slot (a)
and advance the roll until you hear the feed tone.
342
• Do not force the Roll Holder into the printer with the right and left ends reversed. This may damage the
printer and Roll Holder.
• Do not release the flanges until the holder is loaded in the Roll Holder Slot.
• Be careful not to pinch your fingers between the Roll Loading Slots (b) and the Roll Holder shaft (c) when
loading rolls.
