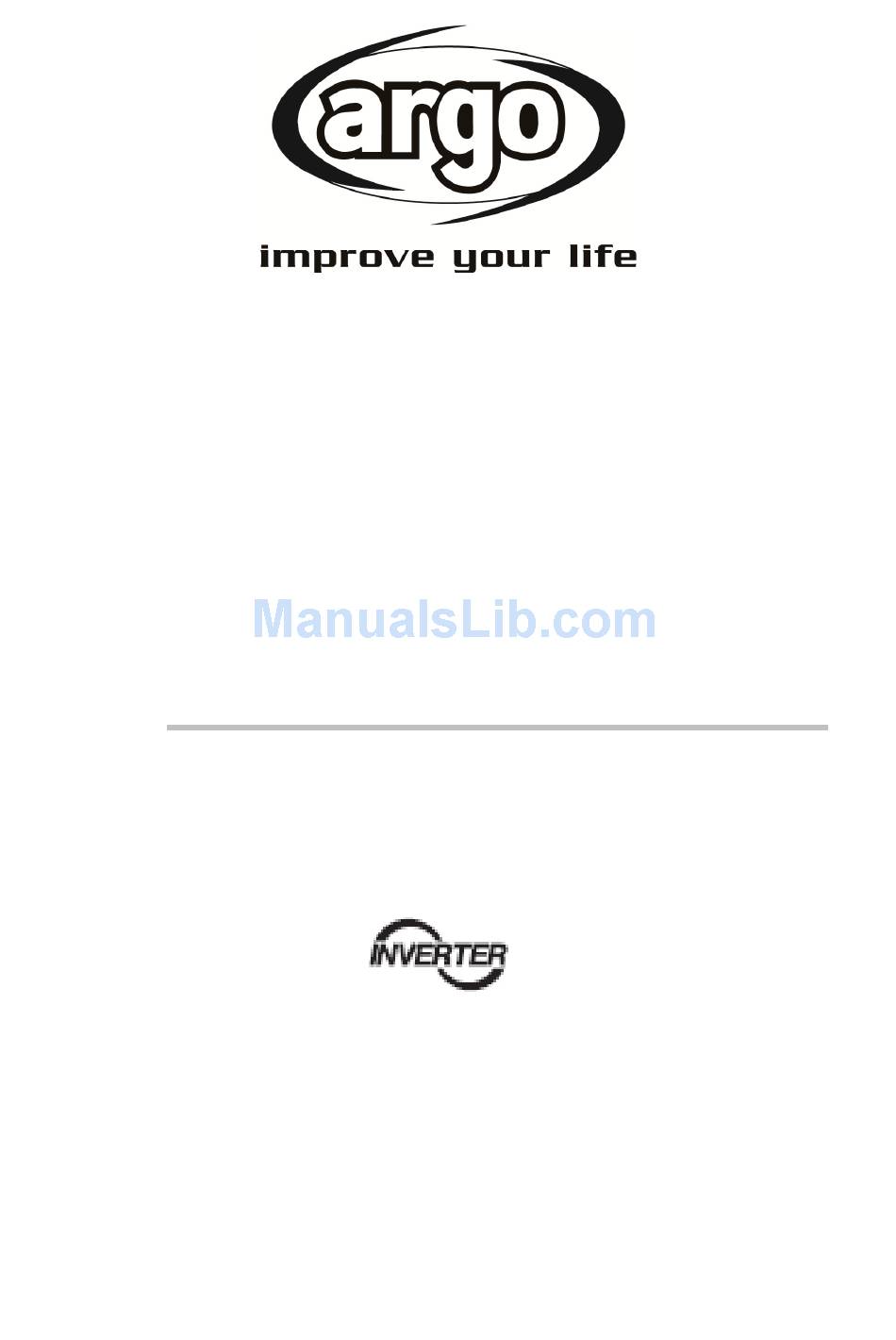

USER MANUAL and INSTALLATION GUIDE
Single-Split Air Conditioner
X3I 27
X3I 35
X3I 52
X3I 64
Please read this manual carefully before installing and using the air conditioner, and
retain for future reference.
V 05/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3I 27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argo X3I 27

Summary of Contents for Argo X3I 27

  • Page 1 USER MANUAL and INSTALLATION GUIDE Single-Split Air Conditioner X3I 27 X3I 35 X3I 52 X3I 64 Please read this manual carefully before installing and using the air conditioner, and retain for future reference. V 05/15...

  • Page 2: Table Of Contents

    Contents Information for use Precautions for use Description of components Guide to the remote control and display Remote control buttons Getting to know the display icons Getting to know the remote control buttons Getting to know the button combination functions Operating guide Replacing the remote control batteries Emergency operation...

  • Page 3: Information For Use Precautions For Use

    INFORMATION FOR USE Precautions for use WARNING • This product is not a toy. Children should be properly supervised to ensure that they do not play with the appliance. • This appliance should not be used by children under 8 years old or by persons with reduced physical, sensory or mental capabilities or lacking the necessary experience and knowledge, unless under supervision or given the necessary training concerning the use of the appliance by someone responsible for their safety.

  • Page 4: Description Of Components

    Description of components Indoor unit Unità interna ingresso aria pannellino filtro tasto ausiliario deflettore orizzontale spia spia finestrella uscita dell’aria raffreddamento alimentazione ricevitore display spia spia spia riscaldamento temperatura deumidificazione (Il contenuto o le posizioni nel display potrebbero essere telecomando diversi dalla grafica riportata qui sopra: fare riferimento al prodotto reale) Unitài nterna...

  • Page 5: Guide To The Remote Control And Display Remote Control Buttons

    Outdoor unit Unità esterna ingresso aria impugnatura uscita aria Unitàesterna Outdoor unit ingresso aria air inlet impugnatura handle uscita aria air outlet GUIDE TO THE REMOTE CONTROL AND DISPLAY Remote control buttons ON/OFF button ▲ button ▼ button MODE FAN button SWING button I FEEL button HEALTH/AIR button...

  • Page 6: Getting To Know The Display Icons

    Getting to know the display icons Funzione I Feel I Feel function Mod. funzione Operating mode Mod. Raffr. Cool mode Mod. Deumi. Dry mode Mod. Ventil. Fan mode Mod. Riscal. Heat mode Orologio Clock Mod.Attesa Sleep mode Luce Light Funzione X-Fan X-Fan function Funzione HEALTH HEALTH function...
  • Page 7 1. ON/OFF button Press the ON/OFF button to turn the air conditioner on or off. When you turn on the air conditioner, the power indicator on the indoor unit's display will illuminate (green). The colour varies for different models. The indoor unit will emit a beep. 2-3.
  • Page 8 5. FAN button Pressing this button will allow you to cycle through and set the fan speed: automatic (AUTO), low ( ), medium ( ) or high ( Auto Auto N.B.: When you select AUTO, the unit will automatically select the most suitable fan speed according to the factory settings.
  • Page 9 8. HEALTH/AIR button Press this button once to start the air purification function. The icon will appear on the display. Press the button a second time to start the purification and sanitisation function simultaneously. The icons will appear on the display. Press the button a third time to turn off both functions.

  • Page 10: Getting To Know The Button Combination Functions

    12. CLOCK button Press this button to set the clock. The icon will flash on the remote control display. Press "▲" or "▼" within 5 seconds to set the clock. Each time you press "▲" or "▼", the clock will increase or decrease by 1 minute.
  • Page 11 N.B.: • When the energy saving function is enabled, the fan will operate at the default automatic speed and cannot be adjusted. • When the energy saving function is enabled, the set temperature cannot be adjusted. The remote control will not send a signal to the unit when the TURBO button is pressed. •...

  • Page 12: Operating Guide

    Operating guide 1. When you connect the power, press the "ON/OFF" button on the remote control to turn the air conditioner on. 2. Press the MODE button to select the desired operating mode: AUTO, COOL, DRY, FAN or HEAT. 3. Press "▲" or "▼" to adjust the desired temperature. (The temperature cannot be adjusted in automatic mode.) 4.

  • Page 13: Emergency Operation

    Emergency operation In the event of loss or failure of the remote control, use the emergency button located under the indoor unit's front panel to turn the air conditioner on or off. The unit will operate in automatic mode on start-up. pannellino tasto ausiliario pannellino...

  • Page 14: Troubleshooting Possible Faults And Solutions

    Before-use checks 1. Check that the air inlet and outlet are free of obstructions. 2. Check that the circuit breaker, plug and socket are in good working order. 3. Check that the filters are clean. 4. Check that the outdoor unit's support bracket is not damaged or corroded. If it is, contact the service centre.
  • Page 15 Fault Check Solution The indoor unit's Is the indoor temperature and humidity Indoor air cools rapidly. Wait for the air outlet high? indoor temperature and humidity to fall produces a mist and the mist to disappear. Is the unit operating in automatic mode? The temperature cannot be adjusted in The set automatic mode.

  • Page 16: Analysing Faults And Solutions

    Analysing faults and solutions Error codes In the event of a fault, the temperature indicator on the indoor unit will flash to display the corresponding error code. Refer to the following list to identify the error code. The image shown is for example purposes only. Display Please refer to the purchased product for the interno...

  • Page 17: Installation Instructions Installation Diagrams

    INSTALLATION INSTRUCTIONS Installation diagrams Distanza dalla parete Distanza dalla parete Distanza dal soffitto Distance from ceiling Almeno 15 cm At least 15 cm Distanzadallaparete Distance from wall Almeno 15 cm At least 15 cm Distanzadallaparete Distance from wall V 05/15...

  • Page 18: Choosing A Location For Installation

    Almeno 15 cm At least 15 cm Distanzadall’ostruzione Distance from obstruction Almeno 300 cm At least 300 cm Distanza dal pavimento Distance from floor Almeno 250 cm At least 250 cm Distanzadall’ostruzione Distance from obstruction Almeno 50 cm At least 50 cm Distanzadall’ostruzione Distance from obstruction Almeno 30 cm...

  • Page 19: Electrical Connection Requirements

    Outdoor unit 1. Choose a location where the noise and airflow produced by the outdoor unit will not annoy neighbours. 2. The location should be well ventilated and dry; the outdoor unit must not be exposed to direct sunlight or strong winds. 3.

  • Page 20: Installation Indoor Unit Installation

    INSTALLATION Indoor unit installation Decide where to install the unit based on room design, architectural limitations and customer requirements. Check that in the selected location the unit can be accessed for servicing and cleaning the filters. To install, use the installation plate as a template to identify the exact position for the wall plugs and through-hole in the wall.
  • Page 21 Piping hole Model Ø 55 Cooling capacity < 6000 W Ø 70 Cooling capacity > 6000W N.B.: • Take the necessary safety measures when drilling the hole and do not allow dust to enter. Indoors • The plastic wall plugs are not supplied but Outdoors must be purchased on site.
  • Page 22 Wrap the indoor pipe and the joint of the connecting pipe with an insulating tube. Then wrap with tape. Step six: install the condensate drain pipe Connect the drain pipe to the outlet pipe of the indoor unit. tubo di scarico Bind the joint with tape.
  • Page 23 4. Reposition the terminal block cover and tighten the screws. 5. Close the panel. N.B.: • All wiring must be connected as shown on the unit's wiring diagram. All indoor and outdoor unit cables must be connected by a qualified technician. •...

  • Page 24: Outdoor Unit Installation

    N.B.: • Avoid bending the drain pipe too much in order to prevent clogging. Outdoor unit installation Step one: secure the outdoor unit support 1. Choose a location for the unit according to the structure of the house. 2. Use expansion screws to secure the outdoor unit support in the chosen position. N.B.: •...
  • Page 25 2. Remove the screw cap of the valve and 4. Tighten the union nut with the wrench position the pipe joint in the bellmouth of the according to the following table. pipe. Hex nut diameter Tightening torque (Nm) tubo del liquido 15 –...

  • Page 26: Vacuum Pump

    N.B.: • The height of the drain pipe through the wall • Slant the drain pipe slightly downwards. The must not be greater than the height of the drain pipe must not be bent, raised, twisted, etc. hole for the indoor unit's outlet pipe. Il tubo di scarico non deve salire verso l'alto...

  • Page 27: Post-Installation Checks

    hex key. • Tighten the screw caps of the valves and refrigerant charge port. • Reinstall the handle. Leak detection Check for leaks using a leak detector. If you do not have a leak detector you can use soapy water. Post-installation checks Checks Possible fault...

  • Page 28: Appendices Piping Configuration

    APPENDICES Piping configuration 1. Standard connecting tube length:5, 7.5, 8 m. 2. Minimum connecting tube length: 3 m. 3. Maximum connecting tube length and maximum height difference: Maximum Maximum connecting tube height Capacity length difference 9000 Btu/h 12000 Btu/h 18000 Btu/h 24000 Btu/h Warning! Note the additional charge on the data plate affixed to the outdoor unit.

  • Page 29: Procedure For Extending The Piping

    Procedure for extending the piping N.B.: Improper extension of piping is the main cause of refrigerant leaks. Proceed as shown below: 1. Cut the pipe 5. Expand the port • Check the length of the pipe based on the Expand the port using a pipe expander. distance between the indoor unit and outdoor unit.
  • Page 30 superficie liscia tubo di raccordo allargamento imperfetto tubo inclinato superficie fessura- spessore danneggiata zione irregolare lunghezza uguale superficie liscia smooth surface allargamento imperfetto defective expansion lunghezza uguale equal length inclinato slanted superficie danneggiata surface damaged fessurazione cracked spessore irregolare uneven thickness tubo di raccordo union pipe tubo...
  • Page 31 V 05/15...
  • Page 32 REGULATION (EU) No. 517/2014 - F-GAS The unit contains R410A, a fluorinated greenhouse gas with global warming potential (GWP) = 2087.50. Do not release R410A into the atmosphere. www.argoclima.com V 05/15...
