USER and INSTALLATION MANUAL
OUTDOOR UNITS
X3MI ECO 52SHB
X3MI ECO 61SH
X3MI ECO 71SH
X3MI ECO 80SH
X3MI ECO 105SH
X3MI ECO 120SH
Please read this manual carefully before installing and using the air conditioner, and
retain for future reference.
X3 ECO PLUS
MULTI SPLIT AIR
CONDITIONERS – R32

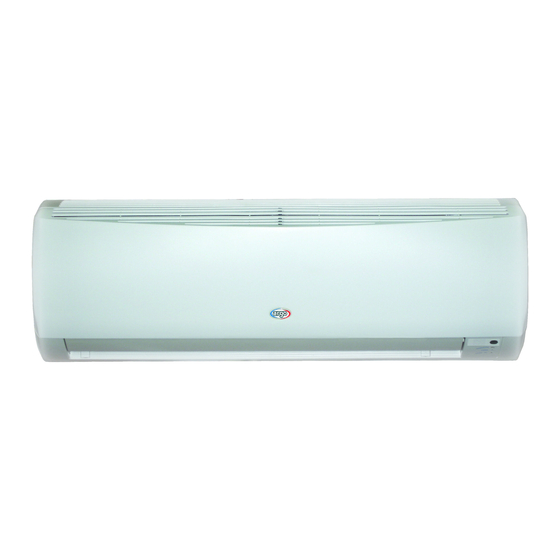

INDOOR UNITS
X3I ECO PLUS 27 HL WF
X3I ECO PLUS 35 HL WF
X3I ECO PLUS 52 HL WF
X3I ECO PLUS 70HL WF
V 01/20
Advertisement
Table of Contents
Related Manuals for Argo X3MI ECO 52SHB
Summary of Contents for Argo X3MI ECO 52SHB
- Page 1 USER and INSTALLATION MANUAL OUTDOOR UNITS INDOOR UNITS X3MI ECO 52SHB X3I ECO PLUS 27 HL WF X3MI ECO 61SH X3I ECO PLUS 35 HL WF X3MI ECO 71SH X3I ECO PLUS 52 HL WF ...
-
Page 2: Table Of Contents
Contents Information for use The Refrigerant Precautions for use Description of components Guide to the remote control and display Remote control buttons Getting to know the display icons Getting to know the remote control buttons Getting to know the button combination functions Operating guide Replacing the remote control batteries WiFi guide... -
Page 3: Information For Use The Refrigerant
INFORMATION FOR USE The Refrigerant R32 Appliance filled with flammable gas R32. Before using the appliance, read the owner’s manual. Before installing the appliance, read the installation manual. Before repairing the appliance, read the service manual. To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The refrigerant is the fluoride R32 = GWP (Global warming potential). -
Page 4: Precautions For Use
INFORMATION FOR USE Precautions for use WARNING This product is not a toy. Children of less than 3 years should be kept away unless continuously supervised. This device is not intended for persons (including children aged from 8 years and above) with reduced physical, sensory or mental capabilities, or without the necessary experience and knowledge, unless they have received the necessary supervision or instruction concerning use of the appliance by a person responsible for their... - Page 5 Do not spill water on the remote control. To prevent the risk of electrical shock or damage, do not attempt to repair the air conditioner yourself. After performing the checks in the troubleshooting section, contact an authorised service centre. ...
-
Page 6: Description Of Components
When cleaning the unit, stop The voltage rating of this product Do not attempt to repair the air operation and turn off the power. is 220 - 240V, 50Hz. The conditioner yourself. compressor vibrates strongly if Interrompere l'alimentazione the voltage is too low, causing An improper repair can cause fire... - Page 7 ingresso aria air inlet pannellino panel filtro filter Tasto ausiliario auxiliary button Deflettore orizzontale horizontal flap uscitadell’aria air outlet Spia alimentazione power indicator Finestrella ricevitore receiver window Spia temperatura temperature indicator telecomando remote control Spia riscaldamento Heating indicator Spia raffreddamento Cooling indicator The display may vary from the graphic above. Please refer to the purchased product for the actual display content and positions) V 01/20...
-
Page 8: Guide To The Remote Control And Display Remote Control Buttons
Outdoor unit Unitàesterna Outdoor unit ingresso aria air inlet impugnatura handle uscita aria air outlet GUIDE TO THE REMOTE CONTROL AND DISPLAY Remote control buttons V 01/20... -
Page 9: Getting To Know The Display Icons
Getting to know the display icons Getting to know the remote control buttons N.B.: When you connect the power, the air conditioner will emit a beep. The power indicator will illuminate (red). You will now be able to control the air conditioner with the remote control. ... - Page 10 "FAN" button will allow you to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow. N.B. When several indoor units are connected to the same outdoor unit, do not select the AUTO mode, unless only one indoor unit is used and the others are switched off. All the units must in fact operate in the same mode: if the mode selected or automatically defined is different for the units connected to the same outdoor unit, the system goes into error and the error E7 appears on the display of the indoor unit.
- Page 11 heat quickly so that the ambient temperature approaches the pre-set temperature as soon as possible. 5. ▲/ ▼ button Press "▲" or "▼" once to increase or decrease the set temperature by 1°C. Press and hold "▲" or "▼" for 2 seconds to rapidly adjust the set temperature on the remote control. When set-up is complete, release the button and the indoor unit's temperature indicator will change accordingly.
- Page 12 8. SLEEP button By pressing this button you can select Sleep 1, Sleep 2, Sleep 3 and cancel the Sleep function. - SLEEP 1 works in cooling and dehumidification mode: after one hour of unit operation, the temperature will increase by 1°C, after 2 hours it will increase by 2°C; in heating mode, after one hour of unit operation, the temperature will decrease by 1°C and after two hours will decrease by 2°C.
- Page 13 The remote control should be positioned near the user when this function is selected. The remote control should not be placed anywhere high or low temperatures may occur to avoid inaccurate ambient temperature detection. Place the remote control near the user when this function is set. Do not place the remote control near high or low temperature objects to avoid an inaccurate ambient temperature.
- Page 14 5. In auto mode the internal fan operates in auto quiet mode according to the current modes: cooling, heating and ventilation. 12. LIGHT button Press this button to start the Wi-Fi function. When the Wi-Fi function is active, the "Wi-Fi" icon will appear on the remote control display.
-
Page 15: Getting To Know The Button Combination Functions
Getting to know the button combination functions Energy saving function In cool mode, press the TEMP and CLOCK buttons simultaneously to start or stop the energy saving function. When you start the energy saving function, "SE" will appear on the remote control display and the air conditioner will automatically adjust the set temperature according to the factory settings to achieve the best energy-saving effect. -
Page 16: Replacing The Remote Control Batteries
Replacing the remote control batteries signal sender battery Remove the battery compartment cover, marked with (see image to right), by sliding it in the direction of the arrow. reinstall Use only two AAA – LR03 1.5V batteries. Make sure the remove + and –... -
Page 17: Wifi Guide
WIFI GUIDE How to set and operate the air conditioner with Wifi 1. Make sure that the device (smartphone or Tablet) used is equipped with a standard version of Android (version 4.4 or higher) and iOS (iOS7.0 or higher) as the operating system. For more details refer to the App. - Page 18 2. Registration and access. After installing the application, open "EWPE SMART" and click Sign up to register. PLEASE NOTE: • USERNAME: must be UNIQUE, composed of name + number, without spaces (eg Rossi57) • Personal email: if already registered, retrieve Username / Password. It is not possible to create another account with the same mail.
- Page 19 Select the relevant type: In case of residential air conditioner: the fist box on left After choosing the category of interest, proceed with the reset of the unit. Different unit reset systems can be chosen depending on the type of unit / system and remote control (with or without wifi key).
- Page 20 After performing the reset following the instructions, click on Next to automatically add the unit (it’s necessary to enter Wi-Fi password). WIRE CONTROL OR REMOTE CONTROL WITH WIFI REMOTE CONTROL WITHOUT WIFI PORTABLE AIR BUTTON BUTTON (MODE and TURBO) CONDITIONER (CONTROL Direct the remote control towards Direct the remote control towards...
- Page 21 After performing the electrical reset of the unit and entering the information, perform a search for the unit (Search appliance) and continue the configuration. V 01/20...
- Page 22 Configuration of the main functions In the Homepage click on the device you wish to control and access the operating interface of it. 1. Select, operating mode, temperature and fan speed. Mode 2. Temperature for each mode: just slide your finger on the indicated temperature V 01/20...
- Page 23 3. Ventilation speed for each mode: just slide your finger on the fan symbol (the adjustment possibilities vary depending on the mode) Set advanced functions Click Function (Func) in the lower left corner of the interface to enter the advanced settings. ...
- Page 24 X-FAN function Vertical flap swinging Horizontal flap swinging (if available) Sleep function Light on indoor unit display Temperature unit conversion Swing setting Clic Up & down swing to turn the swing function on or off. Click the arrow in the lower right corner of the icon to go to the next screen and set the swing level.
- Page 25 List of Preselections Clic Timer. Then clic + and make adjustments. Other functions 1. Homepage menu Click profile picture in the upper left corner of the homepage and set each menu function. V 01/20...
- Page 26 2. Group Control Click Group Control to use the present devices (Ex. Change the group name to "hhh" and set up the devices in the group list). When this group is working you can change the settings of the whole group 3.
- Page 27 4. Help Press Help to view the instructions for EWPE SMART APP. 5. Feedback Clic Feedback to send a feedback on the product. V 01/20...
-
Page 28: Emergency Operation
6. How to reset the air conditioner WiFi module: Turn off the unit with the remote control and disconnect the air conditioner power for at least 10 seconds. Reconnect the power supply. After 1 minute, press the "WiFi" and "Mode" buttons simultaneously. -
Page 29: Troubleshooting Possible Faults And Solutions
Cleaning the filters Open the panel Remove the filters Lift the front panel of the indoor unit, as shown. Remove the filters by lifting one of the bottom corners pulling them downwards, as shown. Refit the filters Clean the filters Refit the filters and close the front panel. - Page 30 Fault Check Solution Is there noticeable interference (e.g. static Pull out the plug. After about 3 minutes electricity, stable voltage)? reinsert the plug and restart the unit. Is the remote control within the signal The maximum signal reception distance reception range? is 8 m.
-
Page 31: Analysing Faults And Solutions
Has the air conditioner recently been The noise is produced by the refrigerant Sound of running turned on or off? flowing inside the unit (normal water phenomenon). Has the air conditioner recently been It is the sound of the friction caused by turned on or off? the expansion and/or contraction of the Creaking/cracking... -
Page 32: Installation Instructions Installation Diagrams
INSTALLATION INSTRUCTIONS Installation diagrams Space to the wall At least 15cm At least 15cm Space to the wall Drainage pipe V 01/20... - Page 33 INSTALLATION WARNINGS WARNING: Make sure that the power supply is disconnected before carrying out any work on the unit. WARNING: Wear appropriate personal protective equipment before carrying out any work on the unit. WARNING: The appliance must be reinstalled in accordance with national system regulations. WARNING: Wiring and installation must only be performed by a qualified technician trained to install, modify, extend and service the unit and perform safety and functionality tests.
-
Page 34: Choosing A Location For Installation
Use the specified cable types for electrical connections between indoor and outdoor units. Securely lock the cables so that their terminals do not receive external stress. Electric cables with insufficient capacity, incorrect cable connections and insecure cable terminals may cause electric shock or fire. Choosing a location for installation Essential requirements Indoor unit... -
Page 35: Installation Indoor Unit Installation
The unit is charged with a slightly inflammable refrigerant, R32. Improper handling of this gas may expose people and materials to serious damage. More details on this refrigerant are given at the beginning of this manual. Earthing 1. The air conditioner is a Class I appliance. The unit must be earthed with an appropriate device by a qualified technician. - Page 36 Drill a piping hole of diameter 55 or 70 at the chosen location for the outlet pipe. To allow for proper drainage, the piping hole in the wall must slant slightly downwards to the outdoor side, with a gradient of 5 –...
- Page 37 Step five: connect the indoor unit pipe Position the pipe joint in the corresponding bellmouth. tubo giunto tubo dado raccordo Pre-tighten the union nut by hand. giunto pipe tubo joint dado union raccordo nut Adjust the torque according to the following table. Position the open-end spanner on the pipe joint position the torque wrench on the union nut.
- Page 38 Step seven: connect the indoor unit electrical cable 1. Open the panel. Remove the screw that vite pannello secures the small panel covering the terminal board. coperchio cablaggio 2. Insert the indoor and outdoor unit connecting cable into the rear hole corresponding to the foro di passaggio cavo...
-
Page 39: Outdoor Unit Installation
fascetta binding tape cavo di alimentazione cavo di alimentazione interno Indoor powercable interno ed esterno unità tubo interna 3. Bind them evenly. 4. The liquid pipe and gas pipe must be bound tubo del separately at the end. liquido fascetta tubo di scarico unità interna indoor unit cavo di alimentazione interno ... - Page 40 Handling the unit The handling of the product must be made qualified prepared After unpacking make sure that the personnel, supplied with content is intact and complete suitable equipment made to support the weight of the product. The outdoor unit must always be kept upright.
-
Page 41: Vacuum Pump
Maximum pipes 10 20 20 20 20 Additional charge of refrigerant and oil lenght per unit If the length of the connecting pipe is Additional charge 20 20 20 20 20 increased by 10 m compared to the standard length, add 5 ml of refrigerant Always write... -
Page 42: Maintenance
Maintenance Only use adequate equipment for the R32 refrigerant Do not use a different refrigerant from R32. Do not use mineral oils to clean the unit. Electrical connections 1. Remove the cover of the terminal block on the right side of the outdoor unit. (one screw) 2. - Page 43 X3MI ECO 52SH Handle To unit A To unit B connecting Power cord connecting cable cable To the power supply V 01/20...
- Page 44 X3MI ECO 61SH Handle To unit A To unit B To unit C connecting Power cord connecting connecting cable cable cable To the power supply X3MI ECO 71SH Handle To unit A To unit B To unit C Power cord connecting connecting connecting...
- Page 45 X3MI ECO 80SH - X3MI ECO 105SH Handle To unit B To unit A To unit C Power cord connecting connecting connecting connecting cable cable cable cable To the power supply X3MI ECO 120SH yellow- V 01/20...
-
Page 46: Post-Installation Checks
Post-installation checks Checks Possible fault Has the unit been installed securely? The unit could fall, move or produce excessive noise. Is the thermal insulation of the pipes sufficient? Risk of condensation and dripping water. Has the check for gas leaks been executed? Risk of cooling (heating) not satisfactory. - Page 47 table a - Minimum room area ( m ) Charge amount (kg) ≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.1 2.2 2.3 2.4 14.5 16.8 19.3 22 24.8 27.8 31 34.3 37.8 41.5 45.4 49.4 53.6 floor location Minimum room window mounted 5.2 6.1...
-
Page 48: Functional Testing
TESTING AND OPERATION Functional testing Connect the power and press the ON/OFF button on the remote control to start operation. Press the MODE button to select AUTO, COOL, DRY, FAN and HEAT mode and check the air conditioner operates normally. If the ambient temperature is below 16°C, the air conditioner will be unable to start cooling. - Page 49 6. Inspection tubo Check the quality of the expanded port. limatrice defective, expand the port again following the procedure described above. verso il basso superficie liscia allargamento imperfetto tubo pipe limatrice file verso il basso downwards 3. Secure an insulating tube superficie inclinato fessura- spessore...
- Page 50 REGULATION (EU) No. 517/2014 - F-GAS The unit contains R32, a fluorinated greenhouse gas with global warming potential (GWP) = 675. Do not release R32 into the atmosphere. X3MI ECO 52SHB - Kg. 1,00 = 0,675 Tonn CO equiv. X3MI ECO 61SH - Kg. 1,60 = 1,080 Tonn CO equiv. X3MI ECO 71SH - Kg. 1,80 = 1,215 Tonn CO equiv.
