- Page 1 XYZprinting 3D Food Printer Model : 3C10A User Manual English...
-
Page 2: Table Of Contents
XYZprinting 3D Food Printer User Manual Contents 1. Introducing the Product .................... 3 1-1 Product appearance .................... 4 1-2 Accessories......................5 1-3 Specifications ......................5 2. Introducing product operations ................6 2-1 My Recipe ........................ 8 2-2 Printing from the USB drive ................10 2-3 Printing from the PC ..................11 2-4 Settings ........................12 2-5 Cartridge loading demonstration - cookie dough ........15... -
Page 3: Introducing The Product
XYZprinting 3D Food Printer User Manual 1. Introducing the Product Technology is no longer limited to labs or factories. People of all ages, including children, can now enjoy the fun made possible by technological developments. XYZprinting has continued to make remarkable achievements in the field of 3D printing. -
Page 4: Product Appearance

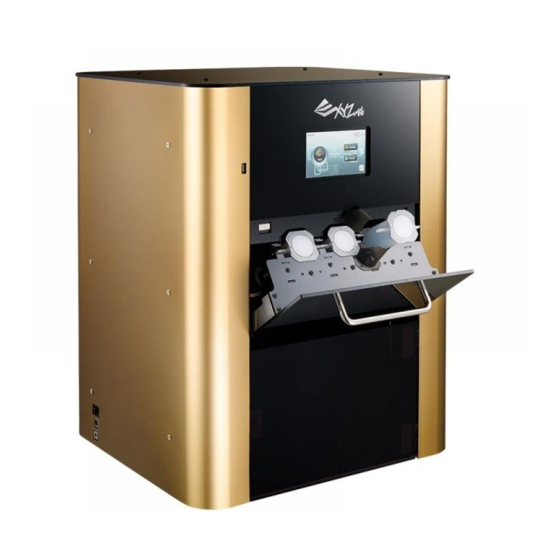

XYZprinting 3D Food Printer User Manual 1-1 Product appearance Touchscreen USB port Cartridge chamber Printing chamber Power switch USB port... -
Page 5: Accessories
XYZprinting 3D Food Printer User Manual 1-2 Accessories Cartridge x3, Screw cap with 1 Material plate mm, 2 mm, and 4 mm (printing bed) diameters (3 of each) USB cable Power cord Transformer Tray Printing chamber cover 1-3 Specifications Printer Maximum 471 x 480 x 610 mm 150 x 200 x 150 mm... -
Page 6: Introducing Product Operations
XYZprinting 3D Food Printer User Manual 2. Introducing product operations Install the printing chamber cover The printing chamber cover is provided together with the printer. Please refer to the picture and install the cover securely. Plug in the power socket and switch on the printer The power switch is located at the side of the printer near the bottom. - Page 7 XYZprinting 3D Food Printer User Manual Check if the printer has detected the cartridge Once the cartridge has been in- ● stalled, return to the Main Screen to check if the printer has detected the cartridge. Cartridges that have been detect- ●...
-
Page 8: My Recipe
XYZprinting 3D Food Printer User Manual Select "Make" from the touchscreen Return to the Main Screen and press "Make" to start your printing project. Select "My Recipe" Print data can be derived from 3 sources: My Recipe ● ● Computer connection (for printing ●... - Page 9 XYZprinting 3D Food Printer User Manual Press "Start" to confirm printing or "X" at the top left corner to cancel the printing. Before pressing the button to initiate printing, please check that: 1. The car- tridges have been installed in the slots; 2.
-
Page 10: Printing From The Usb Drive
XYZprinting 3D Food Printer User Manual 2-2 Printing from the USB drive Insert your USB drive. "USB" will be shown in the Main Screen Ensure that the USB is successfully read (an arrow will be displayed at the bottom of the USB when suc- cessfully read) Enter "My Recipe"... -
Page 11: Printing From The Pc
XYZprinting 3D Food Printer User Manual Selecting "Add" will open the USB and display the folders contained within. Please select the picture files you wish to add (mul- tiple selection allowed). Once you have verified the files selected, select "Done" at the top right corner to transfer the file to the machine. -
Page 12: Settings
XYZprinting 3D Food Printer User Manual Press "Print" after adjusting the parameters After verifying the print dimen- sions, select "Print" to adjust the parameters accordingly and begin printing. Printing after verification Select "Print" to initiate printing. Before printing, please check that the cartridges, lining paper, and material plate have been placed accordingly. - Page 13 XYZprinting 3D Food Printer User Manual "Language" Press the "Language" function in the settings screen to bring up the language options. The printer of- fers multiple languages to choose from. "Sound" Press the "Sound" function in the settings screen to change the sound when pressing the button.
- Page 14 XYZprinting 3D Food Printer User Manual "About Printer" "About Printer" shows the ma- chine's current status, including Status, Model, Serial Number, OS Version, Application Version, Firm- ware Version, and Legal Informa- tion. "Restore Default" Click "Restore" to let the system clear user-stored data in the printer and return all parameter to factory settings.
-
Page 15: Cartridge Loading Demonstration - Cookie Dough
XYZprinting 3D Food Printer User Manual 2-5 Cartridge loading demonstration - cookie dough This 3D printer is mainly used to print paste-like materials. The picture shows the cookie dough. The cartridge will use pressure injection to extrude the material and stack them to form the de- sired 3D shape. -
Page 16: Reminders
XYZprinting 3D Food Printer User Manual 3. Reminders ● Only start printing when the printer is placed on a level surface. ● Do not move the printer when it is switched on (or during printing). ● The printer is heavy. Please use both hands when carrying the printer. Please place the printer gently and avoid bumping heavily against the printer as this may affect print- er functions. -
Page 17: Safety Regulations
XYZprinting 3D Food Printer User Manual 4. Safety regulations Before printing ● Please check if the external cover of the cartridge chamber has been closed properly to en- sure that the carrier is able to load the materials properly. ● If the user intends to print materials on an existing object, please ensure that the top part of the object to be printed is level and even.
