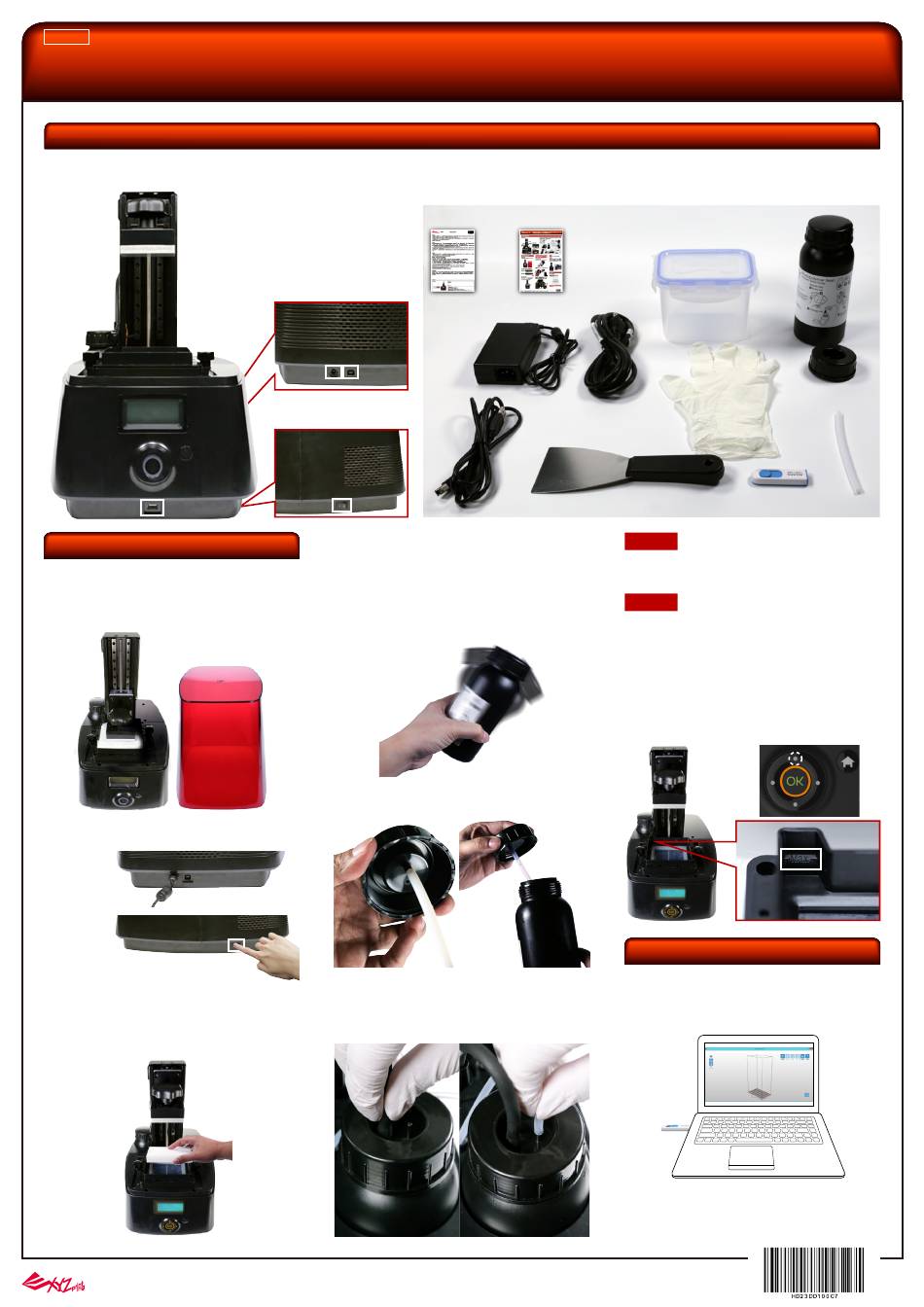

XYZ Printing Nobel Superfine Quick Start Manual

ENGLISH
Quick Start Guide

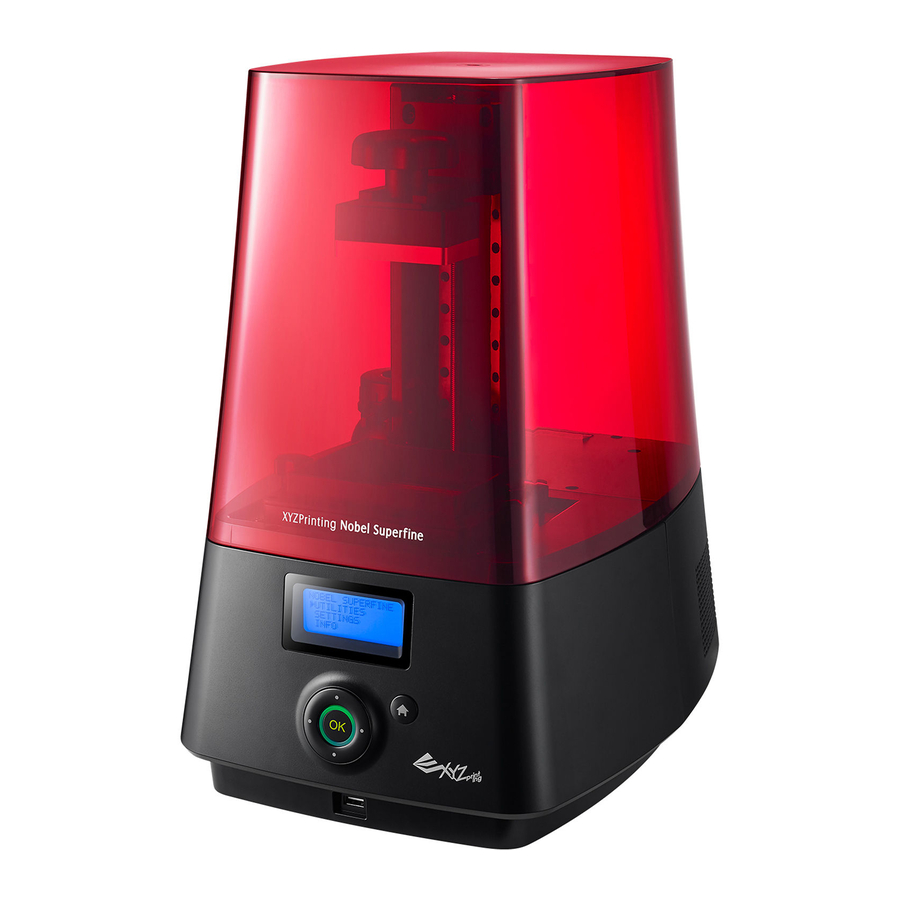

Product Overview and Accessories
●Front View
←Platform
Filling Tube→
Resin Bottle
Slot→
↑
Tank Slot
LCM→
←Operation
Panel
USB Disk
Port→
Unpacking and Setting Up
●Power On
Unpack the carton, remove all protective
material and take the printer out of the
package.
Connect the printer to a power source and
turn on the printer.
■Back View
■Side View
●Raise the Platform
Select "UTILITIES" > "MOVE PLATFORM"
> "TO TOP" > "YES" to raise the platform.
Remove the protective materials under the
platform.
(US)XYZprinting, Inc.
• Website: http://us.xyzprinting.com
• Online Customer Service Desk: http://support.xyzprinting.com/us_en/Help/ticket/home
Please read this guide carefully for steps of unpacking, setting up, printing, post
processing and printer maintenance to ensure your perfect 3D printing experience!
The Nobel Superfine is shipped with the below parts and accessories. After
unpacking, please check if any damage on printer and accessories.
Please contact the support for any losing or defective parts and accessories.
■Warranty Card
●Back View
Power Jack USB Wire
↓ ↓ Port
●Side View
Power Switch
↓
※Please retain all original packaging material. If you
need warranty service, please ship your product with
the original packaging. Shipping without the original
packaging material may cause product damage
during the shipment and may result in service fees
for which you will be responsible.
●Install the Resin Bottle
Shake the resin bottle for about 10 seconds.
Assemble the nozzle cap and the inner tube,
and replace the original bottle cap with the
assembled one.
Install the filling tubes( Attach the black tube to
the thick nozzle firstly. Then attach the
transparent tube to the thin nozzle and push
all tubes down.)
Put the bottle into the bottle slot.
■Quick Start Guide
■Power Cable
■Power Adapter
■USB Cable
■Gloves
■Scraper
Note
Before changing the resin bottle, remove the
transparent tube firstly then the black tube.
Hint
To fill the resin tank before sending the
printing task, please select "UTILITIES" >
"REFILL RESIN" on the printer screen. And
press and hold the UP key to infuse resin into
the tank. Release the UP key until the resin
reaching the "Max" mark(The resin capacity to
MAX mark on the resin tank is about 90g), to
avoid resin effluence from the resin tank.
Printing
●Install Printing Software
Install the printing software XYZware_Nobel
from the bundled USB flash drive.
※Apply printer firmware and XYZware_Nobel
updates when prompted by the software for stable
printing performance.
■Rinse Basket
■Starter
Resin
■Nozzle Cap
■Inner
Tube
■USB Flash Disk
Up
