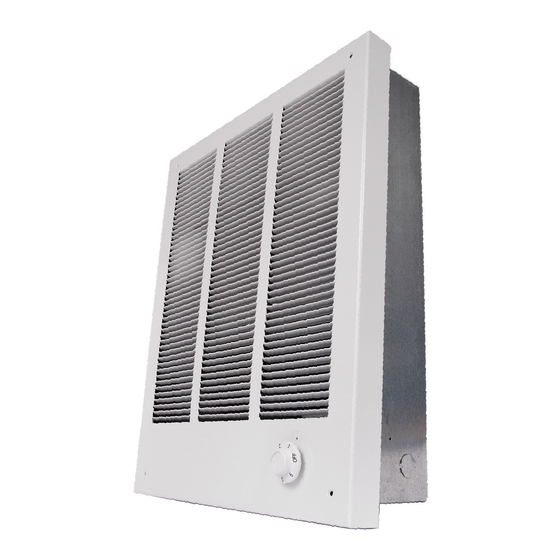

Marley K151FC Installation, Operation & Maintenance Instructions Manual

K Series
Fan Forced
Wall Heaters
Installation, operation & Maintenance Instructions
Specifications
Model
nuMber VolTAGe WATTAGe
K151FC 120 1500
K204FC 240/208 2000/1500
K303FC 347 3000
K304FC 240 3000
K306FC 600 3000
K404FC 240/208 4000/3000
K403FC 347 4000
K406FC 600 4000
K408FC 208V 4000
K483FC 347 4800
K484FC 240/208 4800/3600
K486FC 600 4800
K4083FC 208V 4000
K487FC 277V/240 4800/3600
K488FC 208V 4800
K4883FC 208V 4800
WHEN USING ELECTRIC APPLIANCES, BASIC
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND
INJURY TO PERSONS, INCLUDING THE FOLLOWING:
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, etc. and
curtains at least 3 feet (0.9 m) from the front of the heater.
3. Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.
4. Do not operate any heater after it malfunctions. Disconnect
power at service panel and have heater inspected by a
reputable electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls to OFF, and turn off
power to heater circuit at main disconnect panel.
7. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock, fire,
or damage to the heater.
PPD 41511
PHASe CFM
1 100
1 100
1 100
1 100
3 100
1 100
1 100
3 100
1 100
1 100
1 100
3 100
3 100
1 100
1 100
3 100
IMPorTAnT InSTruCTIonS
WArnInG
SAVe THeSe InSTruCTIonS
SHIP WT.
AMPS (lbS.)
12.5 22
8.3/7.3 22
8.6 25
12.5 22
5.0 25
16.7/14.4 22
11.5 25
6.7 25
19.2 22
13.8 25
20.9/17.3 22
8 25
11.1 23
17.3 23
23.1 23
13.3 23
!
8. To prevent a possible fire, do not block air intake or exhaust
in any manner.
9. A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or flammable liquids
are used or stored.
10. Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electric shock, or injury to persons.
11. This heater is intended for comfort heating applications and
not intended for use in special environments. Do not use in
damp or wet locations such as marine or greenhouse or in
areas where corrosive or chemical agents are present.
12. When installing, see INSTALLATION INSTRUCTIONS for
additional warnings and precautions.
13. For safe and efficient operation, and to extend the life of your
heater, keep your heater clean - See MAINTENANCE
INSTRUCTIONS.
7/14
14-5/16"
364 mm
1-3/8"
35 mm
1-1/2"
39 mm
19-1/8"
18-1/4"
486
464
mm
mm
3-7/8"
15-3/4"
99 mm
400 mm
5200-11210-000 (ISS 1.0)
