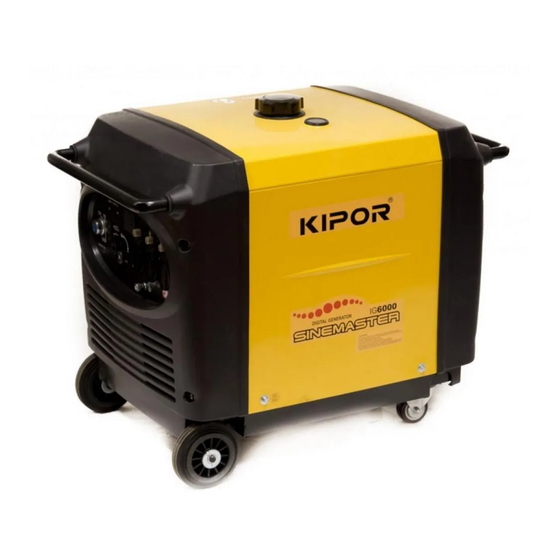

Kipor Sinemaster IG6000 Operation Manual

Digital generator
Hide thumbs Also See for Sinemaster IG6000:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operating Manual
S I N E M A S T E R
DIGITAL GENERATOR
I G 6 0 0 0
I G 6 0 0 0 h
I G L B 6 0 0 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sinemaster IG6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Kipor Sinemaster IG6000

Summary of Contents for Kipor Sinemaster IG6000

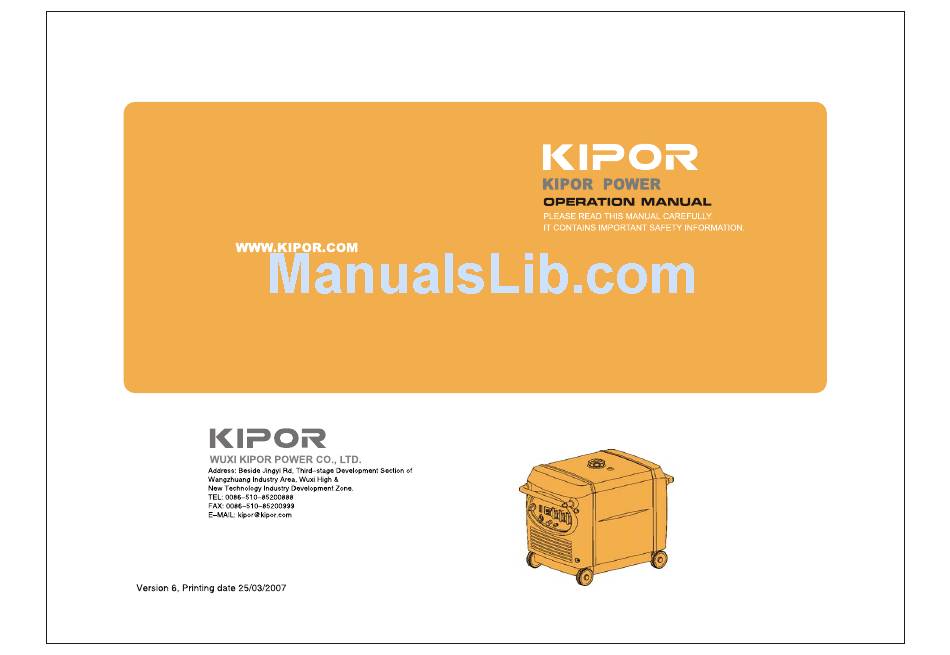

  • Page 1 S I N E M A S T E R DIGITAL GENERATOR I G 6 0 0 0 I G 6 0 0 0 h I G L B 6 0 0 0...
  • Page 2 PREFACE Thank you for purchasing our generators. This manual covers operation and maintenance of the IG6000, IG6000h, IGLB6000 generator. All information in this publication is based on the latest product information available at the time of approval for printing. We reserves the right to make changes at any time without notice and without incurring any obligation.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2.SAFETY LABEL LOCATIONS 3.PRE-OPERATION CHECK 4.STARTING THE ENGINE 5.GENERATOR USE 6.STOPPING THE ENGINE 7.MAINTENANCE 8.TRANSPORTING/STORAGE 9.TROUBLESHOOTING 10.SPECIFICATIONS 11.WIRING DIAGRAM 12. APPENDIX...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS WARNING To ensure safe operation, be sure to user and others safety. WARNING Our generators are designed to give safe and dependable service if operated according to instructions. Read and understand the Owner's Manual before operating the generator. Failure to do so could result in personal injury or equipment damage.

  • Page 5: Safety Label Locations

    WARNING 2. SAFETY LABEL LOCATIONS Connections for standby power to a buildings electrical system must be made by a qualified electrician and must comply with all applicable laws and 2.1 Outside view (See Fig.1) electrical codes. Improper connections can allow electrical current from the generator to back feed into the utility lines.
  • Page 6 2.2 Control panel (See Fig.2) SMART throttle Engine speed is kept at idle automatically when the electrical appliance is discon- nected and it returns to the proper speed to power of the electrical load when elec- trical appliance is connected. This position is recommended to minimize the fuel consumption while in operation.

  • Page 7: Pre-Operation Check

    CAUTION 3.PRE-OPERATION CHECK Running the engine with insufficient oil can cause serious engine damage. The oil Alert System will automatically stop the engine before the oil level falls below the safe limit. However, to avoid the inconvenience of an unex- Be sure to check the generator on a level surface with the engine stopped.

  • Page 8: Starting The Engine

    Gasolines containing alcohol 4.STARTING THE ENGINE If you decide to use a gasoline containing alcohol(gasohol), be sure its octance rat- ing is at least as high as that recommended by us. There are two types of "gasohol": one containing ethanol, and the other containing methanol. Do not use gasohol that CAUTION contains more than 10% ethanol.

  • Page 9: High Altitude Operation

    4.3 Insert the engine key, and turn the engine switch to on position, see Fig.8. 4.5 Push the choke knob to the OPEN position as the engine warms up, see Fig.10. START Engine switch Fig.8 Start the knob view Choke knob 4.4 Turn the engine switch to the START until the engine has started, see Fig.9.

  • Page 10: Generator Use

    5.1 AC applications 5.GENERATOR USE 1. Start the engine and make sure the output indicator light(green) comes on. 2. Confirm that the appliance to be used is switched off, and plug in the appliance. See Fig.12. WARNING To prevent electrical shock from faulty appliances, the generator should be grounded.

  • Page 11: Stopping The Engine

    5.3 DC application 2. Start the engine The DC receptacle may be used for charging 12 volt automotive-type batteries only. The DC receptacle may be sed while the AC power is in use. Output voltage is 15-30V, current is 8.3A, when current receptacle on load. An overloaded DC circuit will trip the DC circuit protector(push button comes out).

  • Page 12: Maintenance

    7.2 Changing oil 7.MAINTENANCE Drain the oil while the engine is still warm to assure rapid and complete draining. See Fig.13. The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Upper level WARNING Shut off the engine before performing any maintenance.
  • Page 13 7.5 Spark plug service 1. Open the left side maintenance cover. 2. Unsnap the clips, remove the air cleaner cover. Recommended spark plug: F6RTC 3. Foam element: To ensure proper engine operation, the spark plug must be properly gapped and Remove the foam element from the air cleaner cover.
  • Page 14 7.6 Spark arrester maintenance (See Fig.16) CAUTION The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly damage the generator. Never use a spark plug with an improper heat range. Back cover 7. Install the spark plug carefully, by hand, to avoid cross-threading. 8.

  • Page 15: Transporting/Storage

    9.TROUBLESHOOTING 8.TRANSPORTING/STORAGE 8.1 When transporting the generator,turn the fuel valve lever OFF and keep the When the engine will not start: generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. Is there fuel in the tank? Refill the fuel tank.

  • Page 16: Specifications

    Appliance does not operate: 10. SPECIFICATIONS Is the output indicator light ON? Model IG6000/IG6000h/IGLB6000 Rated frequency (Hz) Rated voltage (V) Take the generator to an Is the the overload Rated current (A) 24.0 45.8 22.9 indicator light ON? authorized dealer. Rated speed (rpm) 3600 Rated output (kVA)

  • Page 17: Wiring Diagram

    11. WIRING DIAGRAM 12. APPENDIX 1. The choice of the electric cable Yellow/Green The choice of the electric cable depends on the allowable current of the cable and the distance between the load and the generator. And the cable section should be big enough.
  • Page 18 2. Modified coefficient table of ambient condition power The conditions of generator rated output: Altitude: 0 m Ambient temperature: 25 Relative humidity: 30% Ambient modified coefficient: C (Relative humidity 30%) Ambient temperature ( ) Altitude 0.98 0.96 0.93 0.90 0.93 0.91 0.89 0.87...
