  • Page 2: Preface

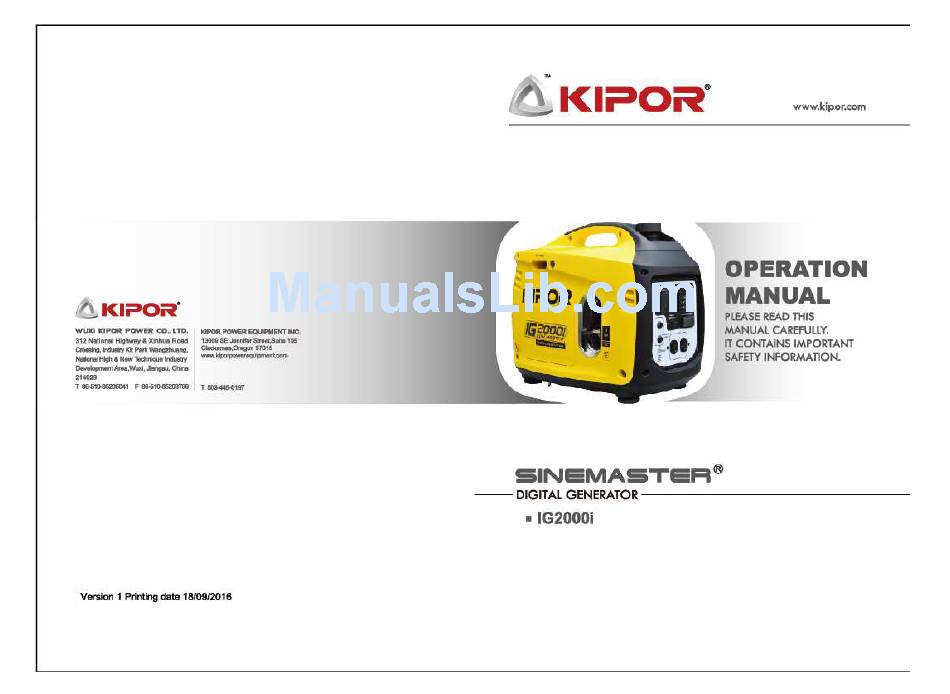

    PREFACE Thank you for purchasing a Kipor generator. This manual covers operation and maintenance of the IG2000i generators including parallel versions. All information in this publication is based on the latest product information available at the time of approval for printing.
  • Page 3 Indicates a strong possibility of severe personal injury or death if instructions are not followed. Gives helpful information. If a problem should arise, or if you have any questions about the generator, consult an authorized dealer. Our generators are designed to give safe and dependable service if operated according to instructions.

  • Page 4: Table Of Contents

    CONTENTS PREFACE ........................1 1. SAFETY INSTRUCTIONS ..................4 2. SAFETY LABEL LOCATIONS ................. 6 3. COMPONENT IDENTIFICATION ................7 4. PRE-OPERATION CHECK ................... 10 5. STARTING THE ENGINE ..................14 6. GENERATOR USE ....................16 7. STOPPING THE ENGINE ..................25 8.

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS This generator is designed to give safe and dependable ■ service if operated according to instructions. Read and understand the Owner's Manual before operating the generator. Failure to do so could result in personal injury or equipment damage. Exhaust gas contains poisonous carbon monoxide.
  • Page 6 Always make a pre-operation inspection before you start the engine. You may ■ prevent an accident or equipment damage. Place the generator at least three feet or one meter away from buildings or other ■ equipment during operation. Operate the generator on a level surface to prevent fuel spillage or oil starvation. ■...

  • Page 7: Safety Label Locations

    2. SAFETY LABEL LOCATIONS These labels warn you potential hazards that can cause serious injury. Read the labels and safety notes and precautions described in manual carefully. If a label comes off or becomes hard to read, contact your dealer for a replacement.

  • Page 8: Component Identification

    3. COMPONENT IDENTIFICATION...
  • Page 9 Control panel Serial number identification and location The generator serial number identifies your particular unit and is important when ordering parts and accessories. The number is found on a sticker on the carton and on the quality certificate in the carton along with the accessories and owner’s manual. It is also stamped on the engine block visible when the service door is removed.
  • Page 10 Proof of purchase is required for any future warranty repair. The customer must supply a copy of the proof of purchase to the qualified Kipor s supply a copy of the proof of purchase to the qualified Kipor service center when ervice center when...

  • Page 11: Pre-Operation Check

    4. PRE-OPERATION CHECK OPERATION CHECK ■ Be sure to check the generator on a level surface with the engine stopped. Be sure to check the generator on a level surface with the engine stopped. Be sure to check the generator on a level surface with the engine stopped. 1.
  • Page 12 Loosen the cover screw and remove the left side maintenance cover. Remove the oil filler cap, and wipe the dipstick with a clean rag. Check the oil level by inserting the dipstick in the filler hole without screwing it in. If the oil level is below the end of the dipstick, refill the recommended oil up to the top of the oil filler neck.
  • Page 13 Gasoline is extremely flammable and is explosive under certain conditions. ■ Refuel in a well-ventilated area with the engine stopped. Keep all smoking ■ materials, sparks, and any other source of combustion away from the generator during refueling. Do not overfill the fuel tank (there should be no fuel above the upper limit mark). ■...
  • Page 14 know has the proper blend. 3. Check the air cleaner Check the air cleaner element to be sure it is clean and in good condition. Loosen the cover screw and remove the left side maintenance cover. Press the latch tab on the top of the air cleaner body, remove the air cleaner cover, check the element.

  • Page 15: Starting The Engine

    5. STARTING THE ENGINE Before starting the engine, disconnect any load from the AC receptacle. 1. Turn the engine switch to the ON position. ENGINE SWITCH 2. Move the choke lever to the START position. NOTE: Do not use the choke when the engine is warm or the ambient air temperature is high.
  • Page 16 ■ Do not allow the starter grip to snap back. Return it slowly by hand. 4. Move the choke lever to the RUN position after the engine warms up. CHOKE LEVER If the engine stops and will not restart, check the engine oil level before further ■...

  • Page 17: Generator Use

    6. GENERATOR USE Be sure to ground the generator when loads are connected. To prevent electrical shock from faulty appliances, the generator should be ■ grounded. Connect a length of heavy cable between the generator's ground terminal and an external ground source. Connections for standby power to a building's electrical system must be made ■...
  • Page 18 Most appliance motors require more than their rated wattage for start-up. Motor ■ start up can be as much as 50% higher of the rated amperage found on the UL tag. Kipor recommends that this value be calculated into the overall amperage requirements of the customer. AC application 1.
  • Page 19 Substantial overloading that continuously lights the overload indicator light (red) ■ may damage the generator. Marginal overloading that temporarily lights the overload indicator light (red) may shorten the service life of the generator. Be sure that all appliances are in good working order before connecting them to ■...
  • Page 20 When an electric motor is started, both the overload indicator light (red) and the ■ output indicator light (green) may go on simultaneously. This is normal if the overload indicator light (red) goes off after about four (4) seconds. If the overload indicator light (red) stays on, consult your generator dealer.
  • Page 21 To prevent the possibility of creating a spark near the battery, connect the ■ charging cable first to the generator then to the battery. Disconnect the cable first at the battery. Before connecting charging cables to a battery that is installed in a vehicle, ■...
  • Page 22 The battery contains sulfuric acid (electrolyte). Contact with skin or eyes may ■ cause severe burns. Wear protective clothing and a face shield. -If electrolyte gets on your skin, flush with water. -If electrolyte gets in your eyes, flush with water for at least 15 minutes and call a physician.
  • Page 23 Low oil alarm system The low oil alarm system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the low oil alarm system will automatically shut down the engine (the engine switch will remain in the ON position).
  • Page 24 Smart Throttle System When the smart throttle switch is placed in the on position, engine speed is kept at idle automatically when the electrical load is disconnected and returns to the proper speed to match the power of the electrical load when the load is reconnected. This position is recommended to minimize fuel consumption while in operation.
  • Page 25 High altitude operation At higher altitudes, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease, and fuel consumption will increase. Power output will decrease 3.5% for each 1000 feet (305 meters) above sea level. High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburetor.

  • Page 26: Stopping The Engine

    7. STOPPING THE ENGINE To stop the engine in an emergency, turn the engine switch to the OFF position. IN NORMAL USE: 1. Switch off the connected equipment and pull the inserted plug out. 2. Turn the engine switch to the OFF position...
  • Page 28 Optional Remote stop: Shut off the connected equipment, press stop button, the genset will be stopped. The max. remote control distance:65feet. Stop button Remote control key...
  • Page 29 8. Operating two generators in parallel wo generators in parallel Two generators run in parallel Two generators run in parallel： Two IG2000i digital generators running in generators running in parallel can increase the output power of parallel can increase the output power of generators.
  • Page 30 Procedures to run 2 generators with a parallel box: 1. Prepare two KIPOR IG2000 I digital generators. Figure 2 Note: Be sure the two generators are shut off. 2. Insert the connecting plug ② of the parallel cable ① to PARALLEL OUTPUT receptacle ③...
  • Page 31 Before starting, make sure that the PARALLEL OUTPUT on each controller panel has been inserted to the parallel cable. Otherwise, damage to the generator may occur. 5. Insert the electrical equipment plug ⑦ into the parallel cable receptacle ⑥ and turn the power switch of the electrical equipment to the on position.
  • Page 32 3. If two generators parallel are not used, be sure to remove the cable from PARALLEL OUTPUT. Kipor IG2000i parallel cable is only suitable for two KIPOR IG2000i generators being run simultaneously. Always use Kipor parallel output cable on IG2000i.

  • Page 33: Maintenance

    Carbon monoxide is a poisonous gas. The emission of fuel vapors is a source of pollution as well. The Kipor generator engine utilizes a precise air-fuel ratio and emission control system to reduce the emissions of carbon monoxide, NO , hydrocarbons, and evaporative fuel emissions.
  • Page 34 Black smoke and/or excessive fuel consumption Replacement parts and accessories The parts making up the emission control system applied to Kipor engine have been specifically approved and certified by the regulatory agencies. You can trust the replacement parts supplied by Kipor have been manufactured to the same production standard as the original parts.
  • Page 35 The lower the air index, the better the engine emission performance. The description of durability is helpful for the user to learn the engine emission duration period and the service life of emission control system. Refer to the warranty section of this owner’s manual for more information.
  • Page 36 1. CHANGING OIL Drain the oil while the engine is still warm to assure rapid and complete draining. ■ Make sure to turn the engine switch and the fuel cap vent lever OFF before draining. 1. Loosen the cover screw and remove the left side maintenance cover. 2.
  • Page 37 2. AIR CLEANER SERVICE IG2000i A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunctioning, service the air cleaner regularly. Service more frequently when operating the generator in extremely dirty areas. ■Do not use gasoline or low flash point solvents for cleaning. They are flammable and explosive under certain conditions.
  • Page 38 3. SPARK PLUG MAINTENANCE To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1. Remove the spark plug maintenance cover. 2. Remove the spark plug cap. 3. Clean any dirt from around the spark plug base. 4.
  • Page 39 7. Install the spark plug carefully, by hand, to avoid cross-threading. 8. After a new spark plug has been seated by hand, it should be tightened 1/2 turn with a wrench to compress its washer. If a used plug is being reinstalled, it should only require 1/8 to 1/4 turn after being seated.

  • Page 40: Transporting And Storage

    10. TRANSPORTING and STORAGE To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position with the engine switch placed in the OFF position. When transporting the generator: If you must transport the generator in a vehicle, drain all fuel from the generator. ■...
  • Page 41 Periodic running of the Generator It is essential that the generator be periodically run on a regular basis. This will prevent the accumulation of varnish or sludge in the fuel system and also remove moisture from the generator windings. Additionally the engine seals and moving components are lubricated.

  • Page 42: Troubleshooting

    11. TROUBLESHOOTING Engine will not start: Is there fuel in the tank? Refuel the fuel tank Is the engine switch on? Turn the engine switch on. Is the enough oil in the engine? Add the recommended oil. Still no Is there a spark from Replace the spark plug.
  • Page 43 Appliance does not operate: Is the output indicator light ON? Take the generator to an Is the overload indicator light authorized dealer. Check the electrical appliance NO DEFECTS Take the generator to an or equipment for any authorized dealer. defects. ■...
  • Page 44 No electricity at the DC receptacle: Is the DC circuit fuse blown? Take the generator to an authorized dealer.

  • Page 45: Specifications

    12. SPECIFICATIONS Genset model IG2000i Rated frequency（Hz） Rated voltage（V） Rated current（A） 13.3 Rated speed（r/min） 4500 Rated output power（kVA） Max. output power（kVA） DC output DC output 12V-5.0A Fuse Equipped No. of phases Single phase Engine Engine model KG158 Engine structure Single cylinder, air-cooled, 4-stroke, in-line arrangement, OHV, gasoline engine Displacement（bore ×...

  • Page 46: Wiring Diagram

    13. WIRING DIAGRAM IG2000i Wiring Diagram...

  • Page 47: Warranty

    LENGTH OF WARRANTY Kipor Products are covered by this warranty from the date of original retail purchase for a period of three (3) years or 300 hours for residential use and for one (1) year or 300 hours for commercial and rental applications.
  • Page 48 Kipor will pay for minor adjustments for a period of ninety days from the purchase date of the generator.
  • Page 49 Kipor Power Equipment cannot deny warranty claims based on a lack of receipts or for your failure to perform all scheduled maintenance. You may be denied warranty coverage if a part has failed due to abuse, neglect, improper maintenance, or unapproved applications.
  • Page 50 1. Claims Warranty claims shall be filed in accordance with the provisions of the Kipor warranty and policies established with the authorized repair center network. 2. Exclusions Warranty coverage shall be denied for failure of an emissions control system part caused by abuse, neglect, improper maintenance or application as described in the Kipor Generator Owner’s Manual.
  • Page 51 Intake System and Carburetor Exhaust System...
  • Page 52 Fuel System Fuel Indicator Gas Cap Strainer Washer Gas Cap Sleeve Gasket Sleeve Fuel Tank Cover Bushing Vent Hose Fuel Tank Washer Certification No. Cotter Pin Retention Hook...
  • Page 55 PREFACE Thank you for purchasing our generators. This manual covers operation and maintenance of the IG7000e generator. All information in this publication is based on the latest product information available at the time of approval for printing. We reserve the right to make changes at any time without notice and without incurring any obligation.
  • Page 56 Contents 1. SAFETY INSTRUCTIONS ..................1 2. COMPONENT IDENTIFICATION ................4 3. PRE-OPERATION CHECK ................... 8 4. STARTING THE ENGINE ................... 12 5. GENERATOR USE ..................... 14 6. STOPPING THE ENGINE ................... 20 7. MAINTENANCE ....................21 8. TRANSPORTING & STORAGE ................26 9.

  • Page 57: Safety Instructions

    1. SAFETY INSTRUCTIONS Operate carefully and make sure users and others safety. The generators are designed to give safe and dependable service if operated according to instructions. Read and understand the Owner's Manual before operating the generator. Failure to do so could result in personal injury or equipment damage.
  • Page 58 Connections for standby power to a building's electrical system must be made by a qualified electrician and must comply with all applicable laws and electrical codes. Improper connections can allow electrical current from the generator to back feed into the utility lines. Such back feed may electrocute utility company workers or others who contact the lines during a power outage, and when utility power is restored, the generator may explode, burn,...
  • Page 59 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 60: Component Identification

    2．COMPONENT IDENTIFICATION 2.1 Outline drawing (Figure 1) Figure 1 Outline drawing...
  • Page 61 2.2 Inlet System Figure 2 2.3 CARB Evaporative Control System Figure 3...
  • Page 62 2.4 Carbon Canister Location (CARB only) Figure 4 2.5 Control panel (See figure 5) Figure 5...
  • Page 63 Smart throttle Engine speed is kept at idle automatically when the electrical appliance is disconnected and it returns to the proper speed to power of the electrical load when electrical appliance is connected. This position is recommended to minimize the fuel consumption while in operation.
  • Page 64 Remote control interface ((figure 7) This interface can be connected with remote control box to realize wired remote start and stop for the generator. Figure 7 Remote control interface...

  • Page 65: Pre-Operation Check

    3. PRE-OPERATION CHECK Be sure to check the generator on a level surface with the engine stopped. 3.1 Check the engine oil level. Using nondetergent oil or 2-stroke engine oil could shorten the engine's service life. Use a high-detergent, premium quality 4-stroke engine oil, certified meet exceed...
  • Page 66 Running the engine with insufficient oil can cause serious engine damage. The Low Oil Alarm System will automatically stop the engine before the oil level falls below the safe limit. However, to avoid the inconvenience of an unexpected shutdown, it is still advisable to visually inspect the oil level regularly.
  • Page 67 Figure 9 Fuel level schematic diagram Gasoline containing alcohol If you decide to use a gasoline containing alcohol (gasohol), be sure it's octane rating is at least as high as that recommended by us. There are two types of gasohol: one containing ethanol, and the other containing methanol.
  • Page 68 3.3 Check the air filter. Check the air filter element to be sure it is clean and in good condition. Open the left side maintenance door, and remove the air filter cover, take out the paper element and check it. Clean or replace the element if necessary. (See figure 10).

  • Page 69: Starting The Engine

    4. STARTING THE ENGINE 1. Insert the engine key and turn the engine switch to “ON” position. (See figure 11). Figure 11 Engine switch drawing 2. Turn the engine switch to “START” position until the engine is started. (See figure 12).
  • Page 70 3. When the engine switch is in “OFF” position, the engine can be remote started by remote controller. Press the remote control button for two times, the engine will be started. (See figure 13). Remote stop button Remote start button Figure 13 Remote controller...

  • Page 71: Generator Use

    5. GENERATOR USE To prevent electrical shock from faulty appliances, the generator should be grounded. Connect a length of heavy wire between the generator's ground terminal and an external ground source. Figure 14 Alternator ground schematic diagram The starting power of most appliances exceeds the rated power.
  • Page 72 rubber sheathed flexible cable (IEC 245 or equivalent). Keep the generator away from other electric cables or wires such as commercial power supply lines. If you use AC receptacle at the same time, be sure not to exceed the AC total power . Electrical equipment (including...
  • Page 73 Figure 16 (2) If the oil alarm indicator lamp twinkle frequently, please contact Kipor dealer. 2. OUTPUT INDICATOR The light of this output indicator (green) means the generator can work normally and can provide power to receptacle.
  • Page 74 Figure 18 4. Display module The display module shows engine speed, battery voltage, generator power, running time, oil level and fault code for users. The user can press mode button to select mode. Different mode provides the corresponding display. When starting, the display module and three indicator lamps flash once at the same time, and automatically check the operation conditions of the displayer and the three indicator lamps.Once the engine runs, green output indicator lamp and display screen light.
  • Page 75 Figure 20 (3) Figure 21 is the display of generator rotation speed. When mode button selects mode 1, the displayer shows generator rotation speed. Mode button Figure 21 (4) Figure 22 is the display of battery voltage. When the mode button selects mode 2, the displayer shows battery voltage.
  • Page 76 Let the generator continue to run and open the load again. The red lamp and the green lamp may light at the same time during the generator starting. It is normal If the red lamp extinguishes in 4s. Otherwise, contact Kipor dealer.

  • Page 77: Stopping The Engine

    6. STOPPING THE ENGINE 6. STOPPING THE ENGINE 6.1 To stop the engine in an emergency, turn the engine switch to the OFF position. in an emergency, turn the engine switch to the OFF position. in an emergency, turn the engine switch to the OFF position. In normal use: 1.

  • Page 78: Maintenance

    The items marked by (2) shall be serviced more frequently when used in dusty areas. The items marked by (3) shall be serviced by authorized Kipor dealer, unless you have proper tools and are mechanically proficient. Refer to the operation...
  • Page 79 7.2 Replace engine oil Rapidly and thoroughly drain off the engine oil when the engine is still hot. See figure Figure 27 Replace the engine oil 1. Open the left side service door. 2. Take out the oil dipstick. 3. Remove the oil drain bolt, discharge the oil and then tighten the bolt. 4.
  • Page 80 cleaning. They are flammable and explosive under certain conditions. Never run the generator without the air filter, otherwise rapid engine wear may result. 1. Open the left side service door. 2. Loosen the lock plate in top of air filter, and remove the air filter. 3.
  • Page 81 Figure 28 Dismantle the spark plug 3. Dismantle the spark plug using a spark plug wrench. 4. Clean any dirt from around the spark plug base. 5. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused.
  • Page 82 7.5 Spark arrester service (See figure 30) Figure 30 Dismantle the spark arrester The muffler is very hot after the generator is just stopped. Service the generator when the muffler is cooled down. In order to ensure the performance of spark arrester, service the spark arrester once every 100hrs.

  • Page 83: Transporting & Storage

    8. TRANSPORTING & STORAGE 8.1 Keep the generator far away from spill fuel in transportation, for oil mist or spill fuel is very easy to burn. 8.2 Preparation for generator long term storage: 1. Be sure the storage area is free of excessive humidity and dust. 2.

  • Page 84: Trouble Shooting

    9. TROUBLE SHOOTING When the engine does not start: Be sure there is no spilled fuel around the spark plug, Spilled fuel may ignite. Spark check: 1) Remove the spark plug cap and clean any dirt from around the spark plug. 2) Remove the spark plug and install the spark plug in the plug cap.
  • Page 85 Appliance does not operate:...

  • Page 86: Specifications

    10. SPECIFICATIONS Genset model IG7000e Rated frequency（Hz） Rated voltage（V） 120/240 Rated current（A） 45.8/22.9 Rated speed（r/min） 3600 Rated output power（kVA） Max. output power（kVA） Engine Engine model KG400GETi Engine structure Single cylinder,4-stroke, air-cooled, OHV, cylinder inclined arrangement, Displacement（bore×stroke） 398ml（89×64 mm） Compression ratio 8.5:1 Ignition system Transistor electrical ignition...

  • Page 87: Electrical Principle Diagram

    11. Electrical principle diagram Figure 32 Electrical principle diagram...

  • Page 88: Trundle Installation

    12. Trundle installation Figure 36 Trundle installation drawing 1. Washer 2. Wheel 3. Lock pin 4. Locking swivel wheel 5. Bolt M6*16 To install the front wheels, install a washer on the axle, then the wheel, another washer and secure with a wheel clip. To install the locking swivel wheels, line up the bolt holes in the chassis with the holes in the wheel attaching plate.

  • Page 89: Appendix

    13. Appendix 1. Cable Selections 【Note】 Select the cable size based on the permissible current and distance between genset and load.If the current going through the cable exceeds the permissible current, it may burn the cables due to overheat. If the power cable is too long, and cable size is too small, the resistance will be large and cause a voltage drop which may stop the load from working.
  • Page 90 2. Power Derating Test conditions: Altitude: <=1000m Ambient temperature: 5 ℃ ~25 ℃ Relative humidity: 30% Power derating factor: C（Relative humidity:30%） Ambient temperature（ ℃ ） Altitude（m） 0.97 0.94 0.91 0.87 1000 0.87 0.84 0.81 0.78 0.74 2000 0.73 0.67 0.64 0.60 3000 0.60...
