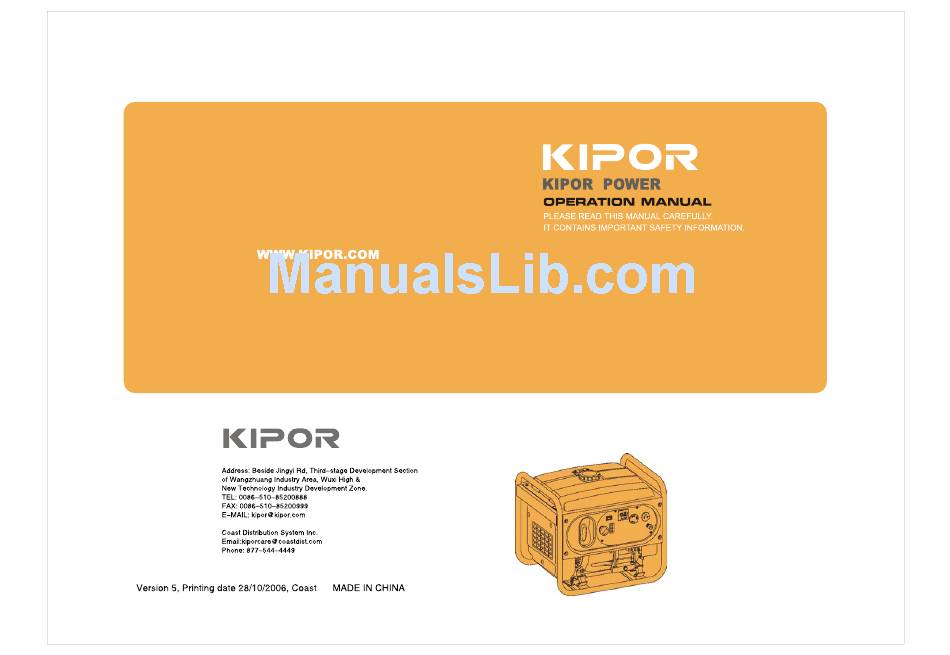

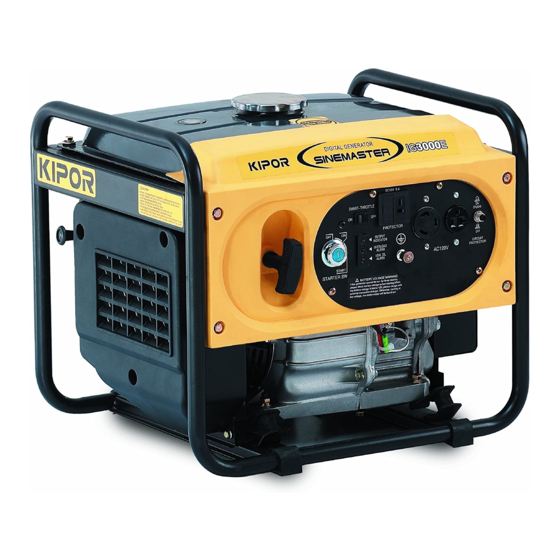

  • Page 1 WUXI KIPOR POWER CO., LTD. D I G I TA L G E N E R A T O R I G 3 0 0 0 E...
  • Page 2 PREFACE Thank you for purchasing a kipor generator. This manual covers operation and maintenance of the IG3000E Inverter generator. All information in this publication is based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice and without incurring any obligation.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. COMPONENT IDENTIFICATION 3. PRE-OPERATION CHECK 4. STARTING THE ENGINE 5. GENERATOR USE 6. STOPPING THE ENGINE 7. MAINTENANCE 8. TRANSPORTING/STORAGE 9. TROUBLESHOOTING 10. SPEIFICATIONS ELECTRICAL WIRING DIAGRAM 12. WARRANTY...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS The generators are designed to give safe and dependable WARNING service if operated according to instructions. Read and understand the Owner's Manual before operating the generator. Failure to do so could result in personal injury or equipment damage. Exhaust gas contains poisonous carbon monoxide.

  • Page 5: Component Identification

    To ensure safe operation -- 2. COMPONENT IDENTIFICATION Gasoline is extremely flammable and explosive under WARNING certain conditions. Refuel in a well ventilated area with the engine stopped. 2.1 Outline drawing Keep away from cigarette, smoking materials sparks and other sources of combustion when refueling the Frame generator.

  • Page 6: Pre-Operation Check

    2.2 Control panel 3. PRE-OPERATION CHECK Be sure to check the generator on a level surface 120V AC receptacle CAUTION with the engine stopped. Output indicator reaptacle 12V DC receptacle Using nondetergent oil or 2-stroke engine oil could NOTE Smart switch shorten the engine's service life.
  • Page 7 Never use an oil/gasoline mixture or dirty gasoline. Avoid Fuel system damage or engine performance problems WARNING NOTE getting dirt, dust or water in the fuel tank. resulting from the use of fuels that contain alcohol is not covered under the warranty. We cannot en-dorse the use of fuels containing methanol since evidence of Gasoline is extremely flammable and is explosive under their suitability is as yet incomplete.

  • Page 8: Starting The Engine

    4.1.4 Loosen the engine switch after starting, and it will return to the "RUN" position START ENGINE automatically. (Refer to Fig. 7) 4.1.5 Push the choke valve handle after preheating, and start the choke valve. 4.2 Recoil starter If you start the generator set in case of first fueling, long time storage or fuel exhaust, 4.2.1 Refer to 4.1.1 please turn the fuel valve handle to "ON"...

  • Page 9: Generator Use

    5,000 feet (1500M) above sea level, have your generator should be grounded. Connect a length of authorized KIPOR dealer perform these carburetor modifications. heavy wire between the generator's ground teminal and Even with suitable carburetor jetting, engine horsepower will decrease approximately an external ground source.
  • Page 10 Substantial overloading that continuously lights the To prevent the possibility of creating a spark near the WARNING CAUTION battery, connect charging cable first to the generator, overload indicator light (red) may damage the then to the battery. Disconnect cable first at the battery. generator.

  • Page 11: Stopping The Engine

    2. Start the engine 7. MAINTENANCE The DC receptacle may be used while the AC power is NOTE in use. An overloaded DC circuit will trip the DC circuit The purpose of the maintenance and adjustment schedule is to keep the generator in protector.
  • Page 12 1. CHANGING OIL 3. FUEL SEDIMENT CUP SERVICE Drain the oil the engine is still warm to assure rapid and complete draining. (1) Remove the oil filler cap and oil drain plug to drain the oil. Gasoline is extremely flammable and explosive WARNING (2) Install the oil drain plug, and tighten it securely.

  • Page 13: Transporting/Storage

    The spark plug must be securely tightened. An NOTE 8. TRANSPORTING / STORAGE improperly tightened plug can become very hot and possibly damage the generator. Never use a spark plug with an improper heat 8.1 When transporting the generator, turn the fuel valve lever OFF and keep the range.

  • Page 14: Troubleshooting

    Appliance does not operate: 9. TROUBLESHOOTING Is the output indicator light ON? When the engine will not start: Is there fuel in the tank? Refuel the fuel tank Is the overload in- Take the generator to an dicator light ON? authorized dealer.

  • Page 15: Electrical Wiring Diagram

    10. SPECIFICATIONS 11. ELECTRICAL WIRING DIAGRAM Model IG3000E Type Inverter Rated Voltage Frequency 60 HZ Maximum Output 3000W, 25A Rated Output 2800W, 23.3A DC Output 12V@8.3A Engine Model KG205 Engine Type 4 stroke, overhead valve, single cylinder Displacement 12.0 cu in (196 cc) Compression Ratio 8.5:1...

  • Page 16: Warranty

    To be eligible for warranty service, the product must be purchased in North America from an authorized Kipor dealer. This warranty applies to the original retail purchaser only, and is not transferable. Proof of purchase is required. Goods exported from North America as well as goods sold at auction are excluded from warranty coverage.
