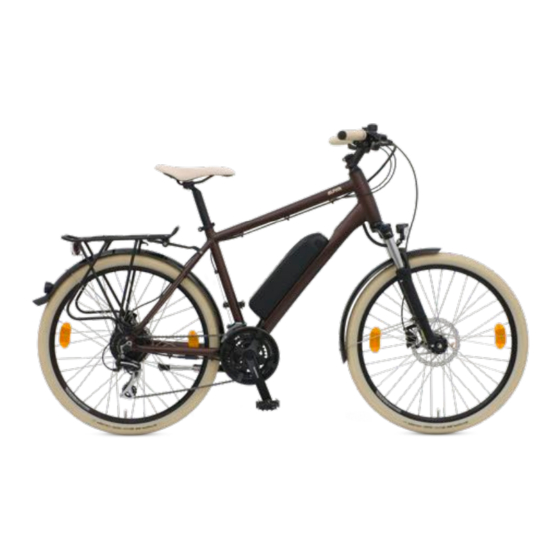

Batribike Alpha Owner's Manual
  1. Manuals
  2. Brands
  3. Batribike Manuals
  4. Bicycle
  5. Alpha
  6. Owner's manual

Batribike Alpha Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Batribike Alpha

Summary of Contents for Batribike Alpha

  • Page 1 Owner Manual...
  • Page 2 DATATAG ETCH №:- IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.

  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator may show charge this cannot be relied upon until the battery has had the initial full charge.

  • Page 4: Parts Identification

    PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Suspension Lock Out Front Gear Indicator Front LED Light Handlebar Adjust (Bar Rotation) Suspension Forks Rear Gear Indicator Front Hydraulic Disk Brake...
  • Page 5 LEFT SIDE OF BATTERY SERVICE RIGHT SIDE USE ONLY OF BATTERY OTHER SIDE OTHER ON INSIDE WITHIN OTHER SIDE OF FRAME BATTERY SIDE (Chainstay) MOUNT HANDLEBAR DISPLAY OPTIONS STANDARD FITMENT (LED) SHOWN LEFT Mini LCD and CENTRE LCD (NOT SHOWN) ALSO AVAILABLE AS UPGRADES...

  • Page 6: Battery Care & Charging

    BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. First time use Your battery will be supplied in a state of sleep from the factory. The first time you use the battery it requires activation by being fully charged.
  • Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.
  • Page 8 Usage Your BATRIBIKE electric bicycle has a choice of display options available. For the ALPHA the LED type is fitted as standard to the bike. LED Display See page 10 for operation The operation of the LED system provides adjustable SPEED in five selectable steps.
  • Page 9 Display Upgrades Mini LCD See separate manual for this upgrade. The operation of the Mini LCD system has four selectable POWER levels. Level 1 gives 25% of the power, level 2 - 50% up to level 4, 100% power. Speed range is from 0 to 15 mph in all levels. This is available as an easy to fit upgrade.
  • Page 10 LED Operation Switching On To use under electric power, switch on at the battery power switch on the top of the battery, then press and hold the DOWN button on the handlebar LED display until the blue lights are seen. Control Buttons By means of the three buttons, UP, DOWN and 6 Km/h, on the handlebar mounted display unit,...
  • Page 11 Bicycle Lights Your BATRIBIKE Electric Bicycle is supplied with powerful LED lights on the front and rear. The rear light is switched on whenever the battery is turned on via the key switch. The front light is activated by pressing the LIGHT button on the handlebar display.
  • Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 5 (Highest). The motor will then be activated upon pedalling. PEDAL ASSISTANCE FROM THE MOTOR LEVEL RANGE / SPEED EXAMPLE OF USAGE...
  • Page 13 If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Diagnostic Error Messages If an error occurs the LED display will show a code by flashing the first battery light. Make a note of the number of flashes and turn off the bicycle power at both the LCD and the battery switch. After 2 minutes turn on the power again.
  • Page 15 Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.

  • Page 16: Standard Bicycle Functions

    STANDARD BICYCLE FUNCTIONS Gears Your BATRIBIKE is provided with 24 speed Shimano derailleur gears with twin lever gear changers. To change gear you use the right handlebar levers for the rear 8 speed and the left handlebar levers for the front 3 speed (chainwheel).
  • Page 17 Braking To stop, cease pedalling and pull the brake levers. Also ensure that the throttle is not operated. Remember that the ALPHA is equipped with powerful hydraulic brakes and will stop quickly. Braking will be less effective in wet conditions and your riding style should be adjusted accordingly.
  • Page 18 The height of the saddle can be adjusted to suit the rider. If you do not feel confident with making these adjustments then your BATRIBIKE Dealer will be able to set up the bike initially. The saddle height is adjusted...

  • Page 19: Suspension Forks

    Suspension Forks The ALPHA is equipped with Suspension Forks with a Mechanical Lock-Out. Using the blue lever on top of the right fork, the forks can be locked to disable the suspension. If the lever is turned fully clockwise then the forks will be locked.
  • Page 20 ® The Datatag UV “Stealth” PRO Cycle System is ideal for BATRIBIKE Electric Bicycles and is a Police Preferred Crime Prevention Product. The system protects your bicycle frame and forks, plus the Datadots® are used to mark many of your electric and non-electric cycle components.

  • Page 21: Datatag

    Number, found on the label attached to your frame, and the Datatag Stealth Etch Code marked on the frame and forks. (Only visible in UV light). You also need the bike Serial Number. This is a separate registration system to our Batribike Warranty Registration.

  • Page 22: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.
  • Page 23 After 3,000 miles (5,000 km) (or YEARLY if sooner) ● General inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. Tyre Pressures Recommended Tightening Torques Item Torque Item Torque The tyres should be...

  • Page 24: Warranty

    Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●...

  • Page 25: Battery

    6. In the unlikely event of a battery failure, the battery must be returned to Batribike for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer.
  • Page 28 BATRIBIKE Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow Lincoln BATRIBIKE are LN1 2AH Members of the Bicycle Association Phone: 01427 787774 of Great Britain E-mail: support@batribike.com ----- USER MANUAL ALPHA - ISSUE 1 - ©2016 Fallowgate Limited -----...
