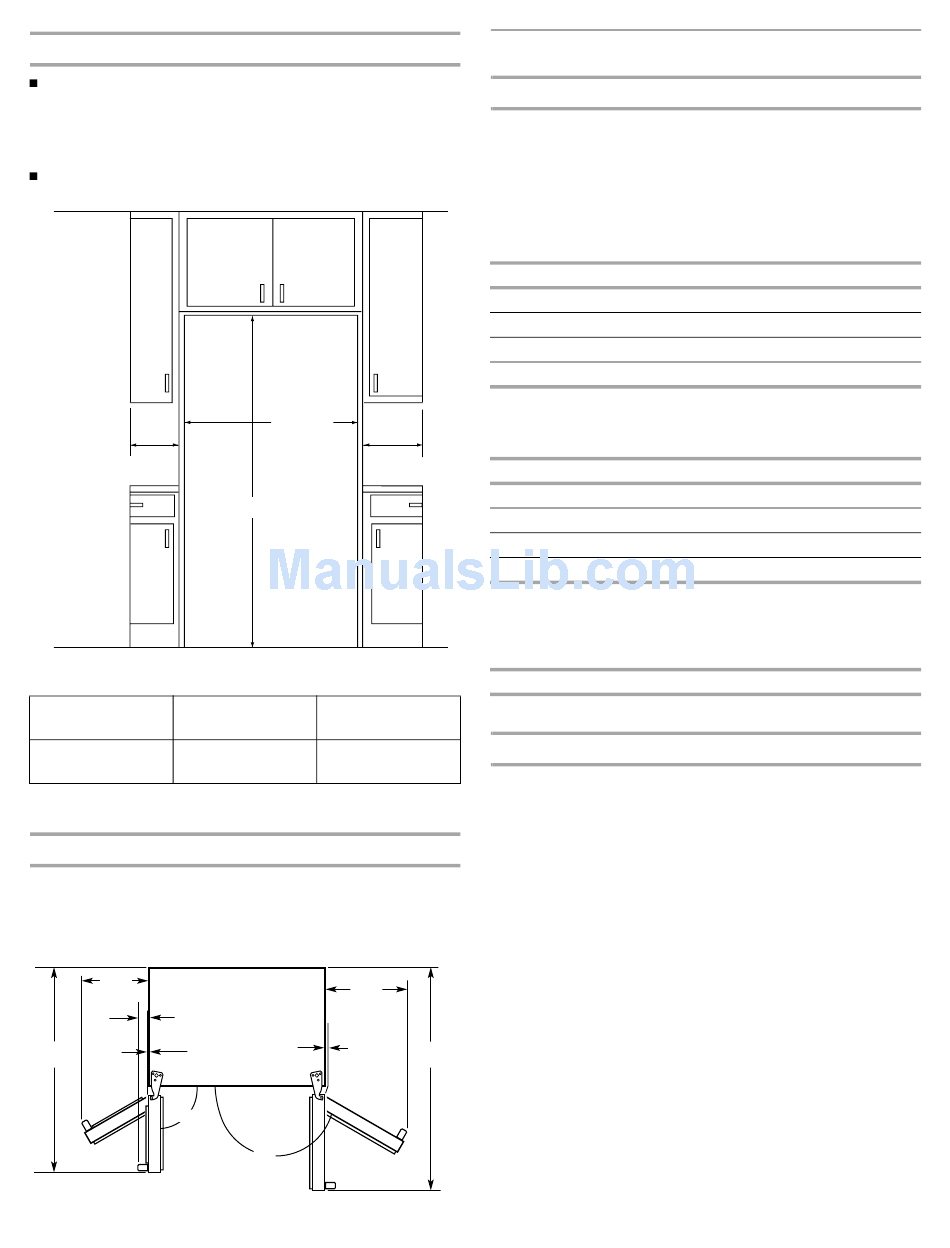

Opening Dimensions
Height dimensions are shown with the leveling legs extended
to the minimum height of ¹⁄₄" (6.35 mm) below the refrigerator.
NOTE: When leveling legs are fully extended to 1¹⁄₄" (32 mm)
below the refrigerator, add 1¹⁄₈" (29 mm) to the height
dimensions.
Minimum fixed wall position is 13¹⁄₄" (34 cm) from the freezer
door and 16¹⁄₂" (42 cm) from the refrigerator door.
¹⁄₄
13 "
(34 cm)
Model
Standard Cabinet
23 69" (175.3 cm)
72" (182.9 cm)
25
*For full-overlay cabinet doors with a trim kit, the opening height
must be adjusted as shown.
Door Swing Dimensions
Location must permit doors to open to a minimum of 150°. Allow
13¹⁄₄" (34 cm) minimum space between the side wall and the
freezer side of the refrigerator. Allow 16¹⁄₂" (42 cm) minimum
space between the side wall and the refrigerator side.
NOTE: Dimensions may vary based on model.
⁵⁄₈
13 "
(34.5 cm)
⁵⁄₈
2 "
(6.6 cm)
³⁄₄
41 " ¹⁄₂
"
(106 cm)
(12.7 mm)
90˚
4
36"
(91.5 cm)
¹⁄₂
16
(42 cm)
A
Height A Height A
Full-overlay*
69¹⁄₈" (175.6 cm)
72¹⁄₈" (183.2 cm)
17"
(43.0 cm)
0"
(0.1 mm)
150˚
Factory Door Panels and Side Trim Kits
All factory parts are available through your Whirlpool dealer or by
calling Whirlpool Parts and Accessories at 1-800-442-9991. In
Canada, call 1-800-807-6777.
Decorator Door Panel Kits
Decorator door panel kits are available. Follow the kit instructions
for installing the panels.
NOTE: Door panel kits are not required for factory-installed
stainless steel models.
Color
White
Black
Biscuit
Stainless Steel
Cabinet Side Trim Kits
Cabinet side trim kits are available to customize refrigerator to
cabinet face. Follow the kit instructions for installing the side trim.
"
Color
White
Black
Biscuit
Stainless Steel
Cabinet Side Panel Kits
Cabinet side panel kits are available to customize the exposed
side of the refrigerator. Follow the kit instructions for installing the
side panel.
Color
Stainless Steel
Custom Door Panels
If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawing for panel specifications.
IMPORTANT: Panels weighing more than the recommended
weight may cause damage to your refrigerator. Refrigerator door
panel should not exceed 30 lbs (13.6 kg). Freezer door panels
should not exceed 17 lbs (7.7 kg) combined weight.
Flat panels:
You can create a custom flat panel a maximum of ¹⁄₄" (6.35 mm)
thickness to replace your decorator panels. Flat wood panels less
than ¹⁄₄" (6.35 mm) thick are not recommended.
¹⁄₂
45 "
(115.6 cm)

Door and Side Panels

23 Model
#4396762
#4396763
#4396764
#4396765
23 Model
4396771
4396770
4396769
4396768
23 Model
#4396748
25 Model
#4396758
#4396759
#4396760
#4396761
25 Model
#4396789
#4396790
#4396791
#4396792
25 Model
#4396749
