Slide Rail Kit
Figure Legend
1
2
3
4

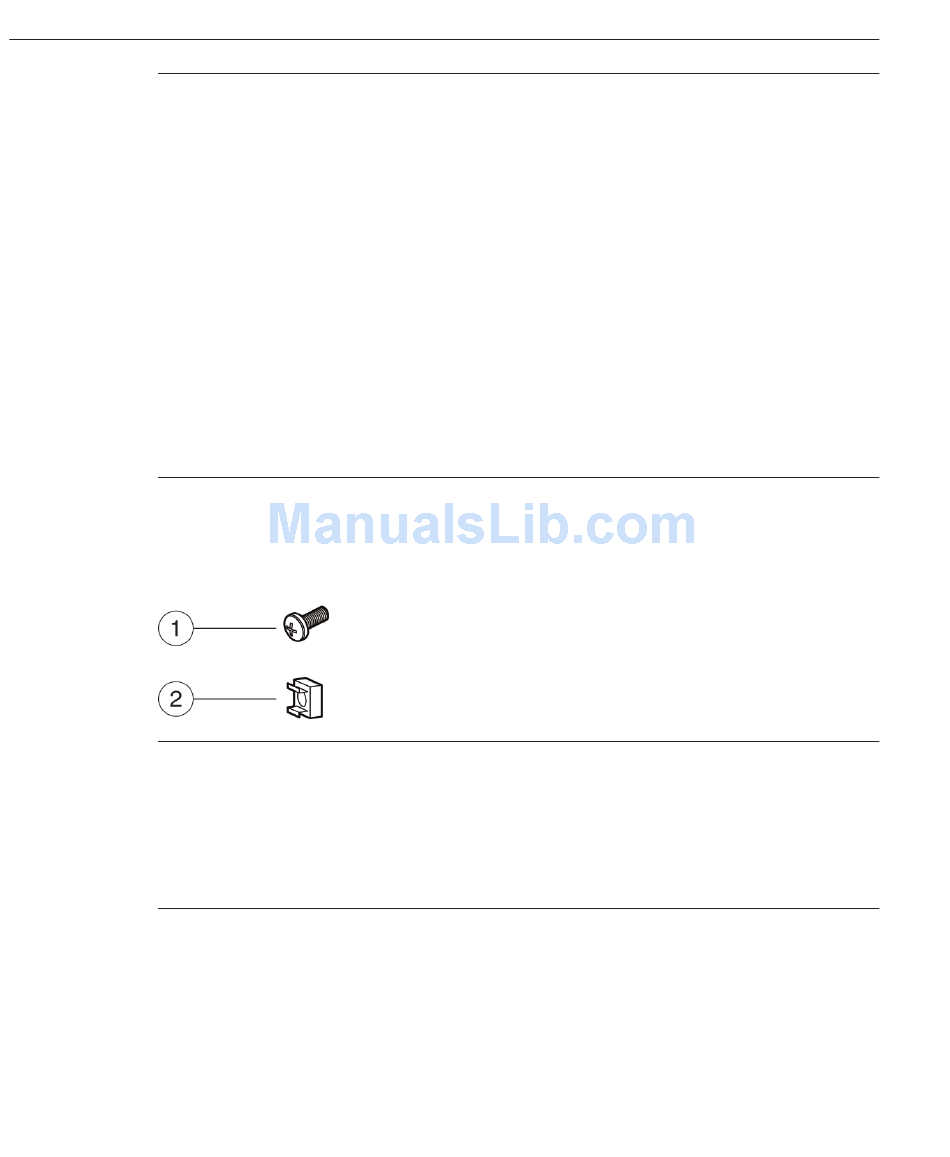

The slide rail kit comes with the following shipping hardware:
Figure Legend
1
2
18
Sun Fire X4600 and Sun Fire X4600 M2 Servers Installation Guide • January 2010, Rev. A
Slide rail (2)
Mounting bracket (2)
(Optional) Cable management arm (CMA)
Shipping/hardmount hardware
M6 screws (9)
Cage nuts
Attaches to rack post. The slide rail has an outer
rail and a middle section. The middle section
has the ball bearings which slide forward and
backward. Each end of the slide rail has an
attachment assembly.
Attaches to server. The mounting bracket is
also called the inner section because it is
inserted into the middle section of the slide rail.
Included only with Express Slide Rail and CMA
combination kit.
If you want to secure the server for
Note –
shipping now or in the future, use the shipping
hardware. It is not possible to install the
shipping hardware after the slide rails are
installed. It is better to install the shipping
hardware during the slide rail installation.
To secure server for shipping, install 8 screws, 2 per rack
post.
One extra screw is supplied.
Cage nuts are required for shipping server in square-hole
racks.
