Summary of Contents for Iluminarc Ilumipanel 180

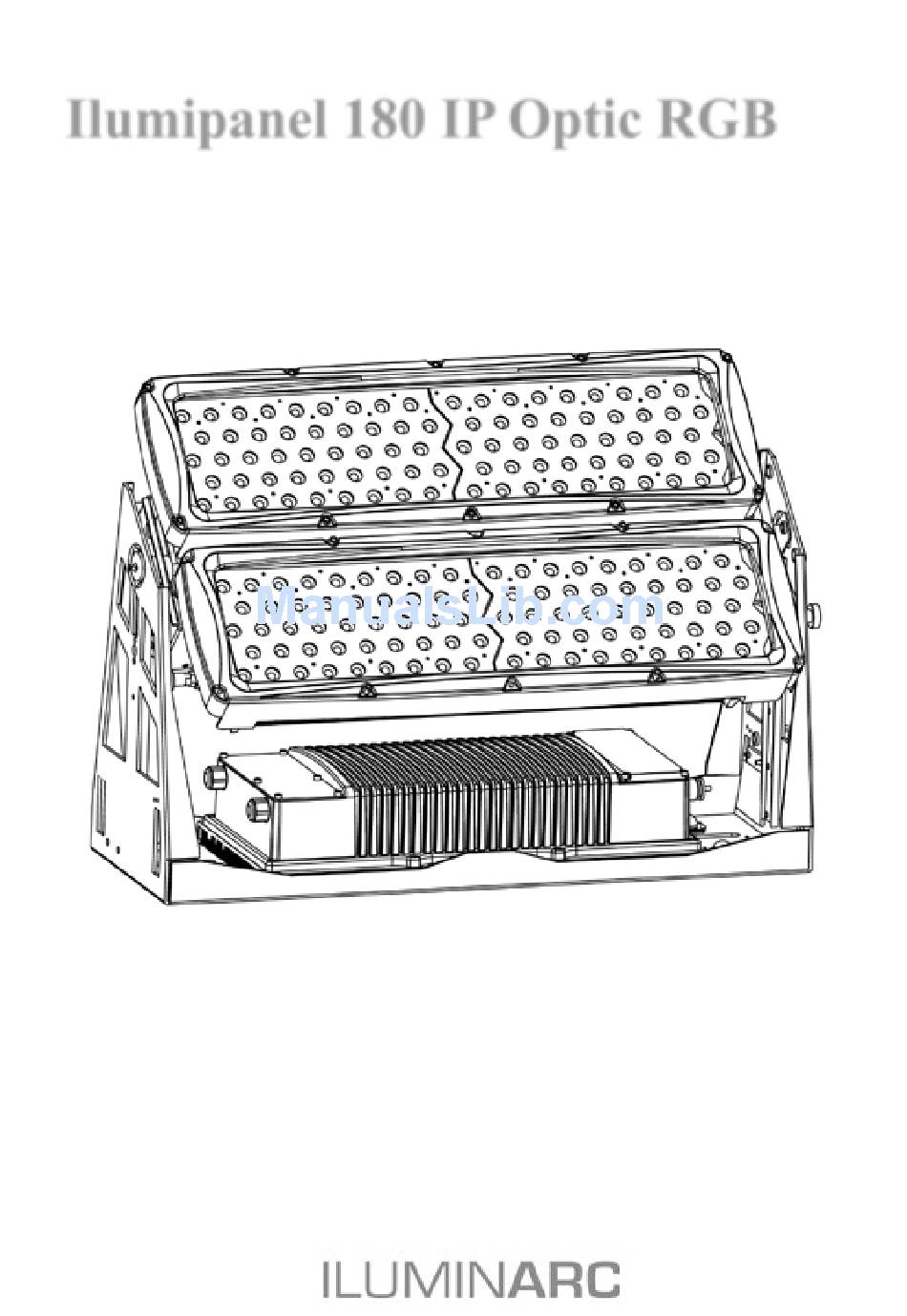

  • Page 1 Ilumipanel 180 IP Optic RGB Quick Reference Guide...
  • Page 2: White

    Ilumipanel 180 IP Optic RGB QRG About This The Ilumipanel 180 IP Optic RGB Quick Reference Guide (QRG) contains the product’s connection and mounting information, as well as the menu Guide options and DMX values. Refer to this product’s User Manual for detailed information and instructions.
  • Page 3: White

    Ilumipanel 180 IP Optic RGB QRG · Features 1, 3, 4, 6, or 7-channel DMX RGB LED wash product · Operating modes: 1-channel: Dimmer 3-channel: RGB control 4-channel: Dimmer, RGB control 6-channel: RGB control per module (two modules) 7-channel: Dimmer, RGB control, color macros, strobe, dimmer speed ·...
  • Page 4: White

    Connect the bare-ended, IP66-rated power cable from the product to an IP66-rated power connector. · Use an IP66- rated junction box. If so, make sure to use IP66-rated conduit. Iluminarc recommends always using conduit for underground wiring of any kind. Power Connection Wire (US)
  • Page 5: White

    Ilumipanel 180 IP Optic RGB QRG This product provides a DMX 512 connection by using bare-ended, IP66-rated signal cable. This cable comes connected to the product. Connection Signal Wiring To provide the signal, you have two options: · Connect the bare-ended, IP6- rated signal cable from the product to two IP66-rated signal connectors (DMX In and DMX Out).
  • Page 6: White

    Ilumipanel 180 IP Optic RGB QRG Ilumicon and To control/operate the Ilumipanel 180 IP Optic RGB, use either an Ilumicon or a DMX controller. Use the standard DMX connection as shown in the section, DMX Junction Box Wiring, to connect this product to any standard Controllers DMX controller.
  • Page 7: White

    Ilumipanel 180 IP Optic RGB QRG Mounting Before mounting this product, read the Safety Notes at the beginning of the Ilumipanel 180 IP Optic RGB User Manual and follow the mounting procedures. Mounting Diagram Mounting Points...
  • Page 8: White

    Ilumipanel 180 IP Optic RGB QRG Ilumicode Button Function Control Panel <POWER> Turns the Ilumicode unit on. Description <MENU> Scrolls through the main level or exits from the current menu or function. NOTE: Press and hold to turn the unit off.
  • Page 9: White

    Ilumipanel 180 IP Optic RGB QRG Menu Options Main Level Programming Levels Description 001~512 Sets the DMX starting address PERSON ARC 1 3-channel: RGB control 4-channel: RGB control + ARC 1 + D dimmer 7-channel: RGB control + ARC FULL...
  • Page 10: Table Of Contents

    Ilumipanel 180 IP Optic RGB QRG DMX Values ARC FULL Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% 000 ó 255 0~100% Green 000 ó 255 0~100% Blue 000 ó 010 No Function 011 ó 030...
  • Page 11: White

    Ilumipanel 180 IP Optic RGB QRG Special 1 Channel Function Value Percent/Setting 000 ó 255 0~100% Module 1 Red 000 ó 255 0~100% Module 1 Green 000 ó 255 0~100% Module 1 Blue 000 ó 255 0~100% Module 2 Red 000 ó...
  • Page 12: White

    Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Ilumipanel 180 IP Optic RGB QRG – Rev. 15 Copyright 2018 ILUMINARC All rights reserved.
