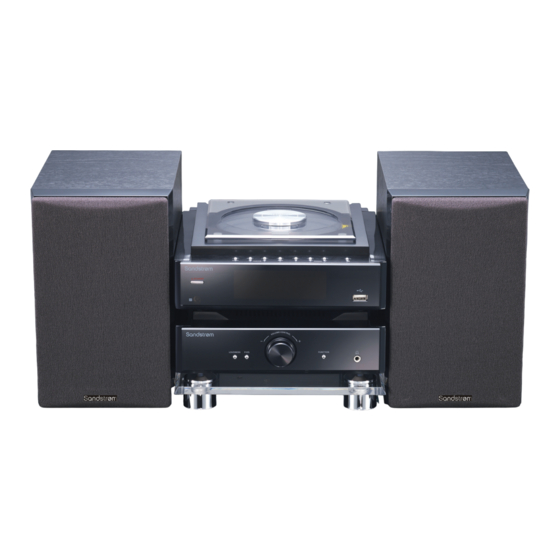

- Page 1 100 Watts Hi-Fi Component System SHFUSB10...
-
Page 3: Table Of Contents
Contents Unpacking ..........................5 Product Overview .........................6 CD Player .................................6 Front View ..............................6 Top View ..............................6 Control Panel .............................6 Rear View ..............................6 The Amplifier ..............................7 Front View ..............................7 Rear View ..............................7 Remote Control .............................8 Remove the Insulating Strip from the Remote Control ..............9 Battery Installation for the Remote Control..................9 Handling the Battery ..........................9 Handling the Remote Control ...................... - Page 4 CD Operation ........................16 Compatible Disc Types ..........................16 CD Playing ..............................16 To Skip Search or Search and Play ....................... 16 Program Play ............................... 17 Random Play (CD and MP3 discs) ......................17 Playing the Beginning (Intro) of each Track ..................17 Playing Repeatedly ...........................
-
Page 5: Unpacking
Congratulations on the purchase of your new Sandstrøm 100 Watts Hi-Fi Component System. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 6: Product Overview
Product Overview CD Player Front View Standby Button Remote Sensor Display USB Port Top View Disc Door MODE Button Control Panel Stereo / Mono Button Tuning Button Tuning Button Play/Pause Button 10. Stop Button 11. Preset Button 10 11 12 12. -
Page 7: The Amplifier
The Amplifier Front View LOUDNESS Button Preset Equalizer P-EQ Button – VOLUME + Control FUNCTION Button Headphone Socket Rear View Mains Cable Control Cable Connector Left & Right Speaker Output Terminals GB-7... -
Page 8: Remote Control
Remote Control Standby Button CD Function Button Tuner Function Button RANDOM Button INTRO Button Dimmer Button DIM Preset Equalizer Button P-EQ CLOCK Button Preset Button 10. Tuning Button 11. Preset Button 12. Play/Pause Button 13. Album Up Button ALB+ 14. Album Down Button ALB- 15. -
Page 9: Remove The Insulating Strip From The Remote Control
Remove the Insulating Strip from the Remote Control Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control. Battery Installation for the Remote Control Unwind the screw and slide open the battery compartment of the remote control. -
Page 10: Handling The Remote Control
Handling the Remote Control • Take care of your fingernails when you press and hold the battery release tab. • Do not drop or cause impact to the remote control. • Do not spill water or any liquid on the remote control. • Do not place the remote control on a wet object. -
Page 11: Connections
Connections 1. Connecting the FM Aerial Connect the FM wire aerial provided to the FM Aerial socket as illustrated below. FM Aerial Connect the FM wire aerial to the FM aerial socket on the rear of the CD player. FM Aerial If reception is poor, connect the unit to an outdoor aerial. -
Page 12: Connecting Control Cable
Connect the LINE OUT sockets at the rear of the CD player on this unit to the auxiliary input sockets on the auxiliary equipment as illustrated below. The CD Player Auxiliary equipment 4. Connecting Control Cable Connect the control cable between the CD player and the amplifier. The CD Player Control Cable... -
Page 13: Eco-Power/Standby Features
ECO-Power/Standby Features This unit features an ECO-Power/Standby mode. Press the STANDBY button on the remote control or on the unit to enter standby mode. To save energy consumption, the clock will not be displayed. If you want to display the clock during standby mode, you can press the CLOCK button. The clock display will disappear after 90 seconds. -
Page 14: Listening To Radio Broadcasts
Listening to Radio Broadcasts You can listen to FM stations. Stations can be tuned in manually, automatically, or from preset memory storage. Before listening to the radio, please check that the FM antenna is correctly connected and adjusted for length and direction or that the unit is connected to an external FM antenna. Tuning in a Station Press the FUNCTION button repeatedly on the front of the amplifIer or press the on the remote control to select tuner function. -
Page 15: To Change The Fm Reception Mode
Press the PROG button on the remote control to store the station. After 1 second, the display returns to the broadcast frequency display. Repeat above steps 1 to 3 for each station you want to store in the memory with a preset number. -
Page 16: Cd Operation
CD Operation Compatible Disc Types Disc Types Disc Logo Recorded Content CD-R (CD Recordable - Audio/MP3/WMA) AUDIO / MP3 / WMA CD-RW (CD-Rewritable - Audio/MP3/WMA) AUDIO / MP3 / WMA AUDIO-CD (Compact Disc Digital Audio) AUDIO Some recorded files may not be able to be played due to the type and format of disc or condition of the recording. -
Page 17: Program Play
Program Play Insert a disc and press the button when it starts playing. Press the PROG button on the remote control. Press the PRESET buttons or 0-9, 10+, buttons on the remote control to select the desired track number and then press the PROG button to confirm your program. Repeat the above step 3 to enter more tracks. -
Page 18: Mp3 Disc Playing
MP3 Disc Playing When selecting tracks the player will automatically display the album and track number. For example: track number 21 may be from album 3, track 7. Press the button to open the disc door and place the MP3 disc on the disc tray. Press the DISPLAY button on the remote control, ID3 information (song title and artist) will be displayed or “NO ID3”... -
Page 19: Using The Usb
Using the USB By connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to this unit, you can enjoy the device’s stored music through the powerful speakers of this unit. Insert the USB device’s USB plug into the port on the front of the CD player Press the FUNCTION button Repeatedly upon the front of the amplifier or press the button on remote control to select the USB function until “USB DIR“... -
Page 20: Setting The Sleep Timer
Setting the Sleep Timer Use the sleep timer to turn the system off after a certain number of minutes when in play mode. By setting the sleep timer, you can fall asleep to music and know that your system will turn off by itself rather than play all night. Play a CD or tune in to the desired station. -
Page 21: Aux Input
• You can set the daily timer only in standby mode. • The operating time of every step shouldn’t be longer than 10 seconds or it will return to the time display. • Please select the sound source before turning into standby mode. e.g. CD, Radio. To cancel the daily timer setting In standby mode, press the SLEEP/TIMER button repeatedly until the “ON”... -
Page 22: Maintenance
Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. -
Page 23: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Problem Cause / Solution The unit does not power on • Make sure the mains plug is secure in the outlet, and the outlet has power. -
Page 24: Specifications
Specifications Model SHFUSB10 Power Supply 230V ~50Hz Output Power 50 Watts x 2 Unit Dimension 192 (W) x 250 (D) x 130 (H) mm Speaker Box Dimension 127 (W) x 195 (D) x 200 (H) mm N.W.: 6 kg Radio Section Frequency Range FM 87.5 –... -
Page 25: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 26 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. • Keep loose batteries away from young The lightning flash with arrowhead symbol, within an equilateral children and make sure that the battery holder tray is secure in the remote control.
- Page 27 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control SHFUSB10P0001 FM Aerial SHFUSB10P0002 Control Cable SHFUSB10P0003 Speaker Cable SHFUSB10P0004 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
