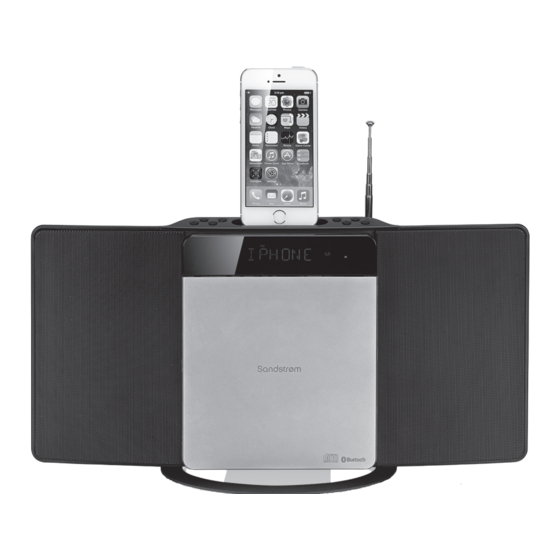

- Page 1 Instruction Manual Micro System CD with docking SHLIDAB14 (iPod and iPhone are not included)
-
Page 3: Table Of Contents
Contents Safety Warnings ........................5 Unpacking ..........................7 Product Overview .........................8 Front View ...............................8 Rear View .................................8 Top View ................................9 Remote Control ........................10 Operating Your Remote Control ..................12 Replace the Remote Control Battery ....................12 Remote Control Operation Range ..................13 Wall Mounting ........................13 Connections ........................14 Using the AUX Connection ........................ - Page 4 Presetting Stations ............................ 21 Recalling a Preset Station ........................22 Compatible Disc Types .......................23 CD/MP3 Operation ......................23 Playback ................................ 23 To Pause Playback ............................. 24 To Stop Playback ............................24 Skipping to Another Track ........................24 Random Playback ............................24 Repeat Playback ............................
-
Page 5: Safety Warnings
Safety Warnings • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 6 Class 1 Laser Product Service This unit utilises a laser. Use • To reduce the risk of electric shock, do not of controls, adjustments or remove screws. The unit does not contain CLASS 1 LASER PRODUCT performance of procedures any user-serviceable parts. Please leave all other than those specified maintenance work to qualified personnel.
-
Page 7: Unpacking
Thank you for purchasing your new Sandstrøm Micro System CD with docking. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features offered. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 8: Product Overview
Product Overview Front View Rear View R AUX 1. Display 2. Remote Sensor Receive signals from the remote control. 3. Speakers 4. CD Tray 5. AUX L/R Sockets 6. AC~ Socket Connect the mains cable to the mains socket. -
Page 9: Top View
Top View 3 4 5 6 8 9 11 1. NFC Sensor Button • Press to skip to the next track in CD, 2. FM aerial IPOD/IPHONE and BT mode. Button • Press and hold to fast forwards Switch the unit between the On and the current track in CD and IPOD/ Standby mode. -
Page 10: Remote Control
Remote Control Button Switch the unit between the ON and STANDBY mode. 2. SOURCE Buttons Switch between DISC (CD Button), DOCK IPOD/IPHONE (DOCK Button), FM/ SCAN DAB (FM/DAB Button), AUX/BT INFO INTRO REPEAT SHUFFLE MENU (AUX/BT Button) mode. ALBUM/PRESET 3. INFO Button Display radio station information. - Page 11 Button Open or close disc compartment. 10. SHUFFLE Button Randomly play back CD or music tracks. DOCK 11. REPEAT Button SCAN Repeats a track or a music file in CD INFO INTRO REPEAT SHUFFLE MENU or IPOD/IPHONE mode. ALBUM/PRESET Button Mute or resume the sound.
-
Page 12: Operating Your Remote Control
Operating Your Remote Control When you first time use remote control, remove the protective tab to activate the remote control battery. Replace the Remote Control Battery 1. Pull out the battery tray. 2. Remove the old battery 3. Replace new CR2025 battery into the battery tray with correct polarity as indicated. -
Page 13: Remote Control Operation Range
Remote Control Operation Range • The remote control sensor on the front unit is sensitive to the remote control’s commands up to a maximum of 5 metres away and within a maximum of a 40° arc. • Please note that the operating distance may vary depending on the brightness of the room. -
Page 14: Connections
3. Leave a 5 mm gap between the wall and the screw’s head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place. The wall where the unit is to be installed must be capable of long-term support of the total load of the unit. -
Page 15: Connecting To The Mains Supply
Connecting to the Mains Supply To the mains socket • This unit is designed to operate with an AC power supply. • Connecting the unit to any other power source R AUX may cause damage to the unit. Unwind the mains cable to its full length. -
Page 16: Adjusting The Sound Effect
Adjusting the Sound Effect Press the EQ button the remote control repeatedly to select POP, CLASSIC, JAZZ, ROCK or FLAT for your desired sound effect. Adjusting the Brightness Press the DIMMER buttons to select the brightness level. Setting of the Clock Manual Setting of the clock can only be done in STANDBY mode. -
Page 17: Activate And Deactivate The Alarm Timer
buttons on the remote control to select BUZZER, DISC, FM, DAB, or 4. Press the IPOD/IPHONE mode, and then press the TIMER/SLEEP button on the remote control to confirm, the display will show the volume level. 5. Press the buttons on the remote control to adjust the volume, and then press the TIMER/SLEEP button on the remote control to confirm, the display will show the selected timer and “... -
Page 18: Dab Operation
DAB Operation To listen to the tuned stations press the button. Each time you press the button, you will skip to the previous or next stored station (including primary and secondary station). The unit will display the station name. 1. Press button on the unit repeatedly or DAB/FM on the remote control to select DAB radio. -
Page 19: Recalling A Preset Station
Recalling a Preset Station 1. Once you have saved a station to one of the preset buttons, you can recall it by pressing buttons on the remote control to select your desired preset number. 2. Preset number and station name will show on the display to indicate the preset station you are listening to. -
Page 20: Dab Display Modes
DAB Display Modes Every time you press the RDS/INFO button, the display will cycle through the following display modes. DLS (Dynamic Label Segment) Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as programme details etc. -
Page 21: Fm Operation
FM Operation Scanning for Radio Stations The unit will automatically select a FM radio station with a good signal. button on the main unit or DAB/FM button on the remote control to select 1. Press the FM mode. 2. Press the INTRO/SCAN button on the remote control to activate automatic programming. -
Page 22: Recalling A Preset Station
You can auto store the first 20 DAB stations that found, press and hold the PROG button for 2 seconds to activate automatic programming. All available stations are programmed in according to waveband signal reception strength (from strongest to weakest). Recalling a Preset Station Once you have saved a station to one of the preset buttons, you can recall it by pressing the buttons on the remote control to select your desired preset number. -
Page 23: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content CD-R (CD Recordable) AUDIO CD-RW (CD-Rewritable) AUDIO AUDIO-CD (Compact Disc Digital Audio) AUDIO CD/MP3 Operation Tap the icon repeatedly on the unit or press the CD button on the remote control to select DISC mode. -
Page 24: To Pause Playback
To Pause Playback 1. Press the button on the unit or press the button on the remote control to pause the playback. 2. To resume playback, Press the button on the unit or press the button on the remote control again. To Stop Playback Tap the button on the unit or press the... -
Page 25: Ipod/Iphone Operation
iPod/iPhone Operation Using the iPod/iPhone dock you can use the unit to play music files stored on your iPod/ iPhone. This unit can support the following iPod/iPhone models. Type Support Model iPhone • iPhone 5/5S/5C iPod • iPod touch 5th Generation • iPod nano 7th Generation (with lightning dock connectors) -
Page 26: Charging Your Ipod/Iphone
Charging your iPod/iPhone 1. Your iPod/iPhone has an internal non-removable battery. The battery may need to be charged if it has not been used for a while. 2. In the STANDBY or ON mode, you can automatically charge the iPod/iPhone through the unit when it is docked. -
Page 27: Bluetooth Operation
2. Activate your Bluetooth device and select the search mode. 3. “SHLIDAB14” will appear on your Bluetooth device. 4. Select SHLIDAB14” and enter “0000” for the password if necessary. “PAIRED” will show on display. 6. To disconnect the Bluetooth function, switch to another function on the unit or disable the function from your Bluetooth device. -
Page 28: Aux Operation
AUX Operation There are AUX IN (L/R) sockets located at the rear of the unit. Analogue audio sound signals from other sources can be connected to the unit through these sockets. 1. Connect to another audio device using the AUX IN (L/R) sockets via a RCA stereo audio cable (not included). -
Page 29: Maintenance
Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •... -
Page 30: Hints And Tips
Hints and Tips If a problem occurs, it may often be due to something very minor. The following table contains various tips: Menu Description No power • Ensure the mains cable is connected securely at both ends. • Make sure that the ON mode is selected. The remote control • Use the remote control near the unit. -
Page 31: Specifications
• Reinsert iPod/iPhone. Bluetooth I cannot find • Ensure the bluetooth function is activated on your bluetooth “SHLIDAB14” on my device. bluetooth device If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again. - Page 32 Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, , HP2 7TG, UK Herts. IB-SHLIDAB14-140514V1...
