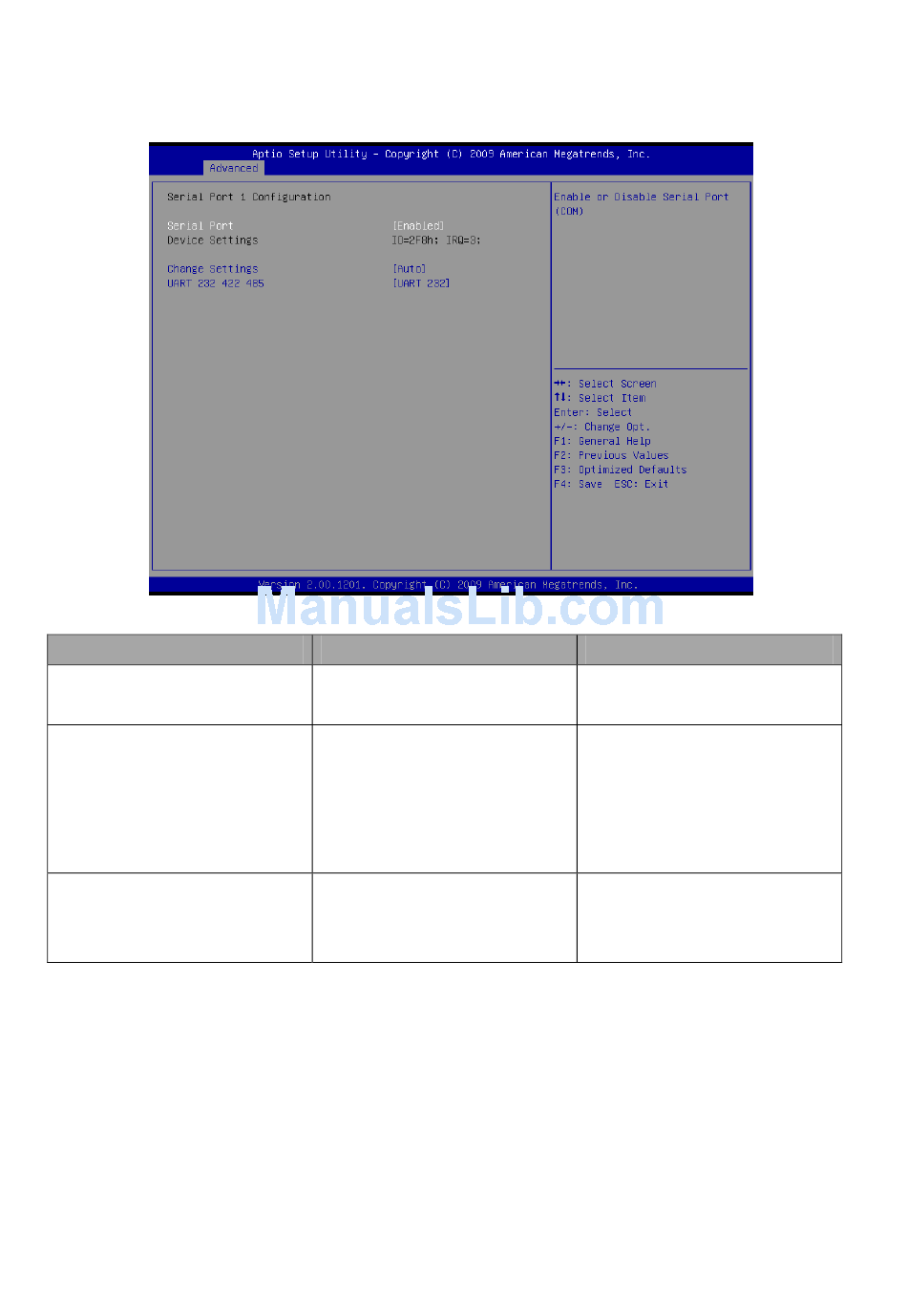

3.6.2.10.2 Serial Port 1 Configuration

Item
Serial Port
Change Settings
UART 232 422 485
56 ECM-QM57 User's Manual
Option
Enabled,
Disabled
IO=3F8h; IRQ=4,
IO=3F8h; IRQ=3,4,5,6,7,10,11,12
IO=2F8h; IRQ=3,4,5,6,7,10,11,12
IO=3E8h; IRQ=3,4,5,6,7,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,10,11,12
UART 232,
UART 422,
UART485
Data Modul AG - www.data-modul.com
Description
Use the Serial port option to
enable or disable the serial port.
Use the change Settings option to
change the serial port IO port
address and interrupt address.
Change the Serial Port as RS232/
422/ 485.
