Features
Two 8-lead SOIC sockets
Supports the Atmel ATSHA204 CryptoAuthentication IC
Supports communication protocols
2
- I
C
- SWI (Single wire interface)
Power LEDs
1.
Introduction
®
Atmel
AT88CK101BK8 is a daughterboard that interfaces with a mcu board via a 10-pin header. The
daughterboard has two 8-pin SOIC sockets which can support HOST and CLIENT development with an
Atmel ATSHA204 device. This kit uses a modular approach, enabling the daughterboard to connect
directly to an STK series AVR development platform to easily add security to applications. An optional
adapter kit is also available when the 10-pin header on the daughterboard requires a different pinout. The
AT88CK109BK8 is sold with the Atmel AT88Microbase to form the Atmel AT88CK109STK8 starter kit. The
AT88Microbase AVR base board comes with a USB interface that lets designers learn and experiment on
their PCs.

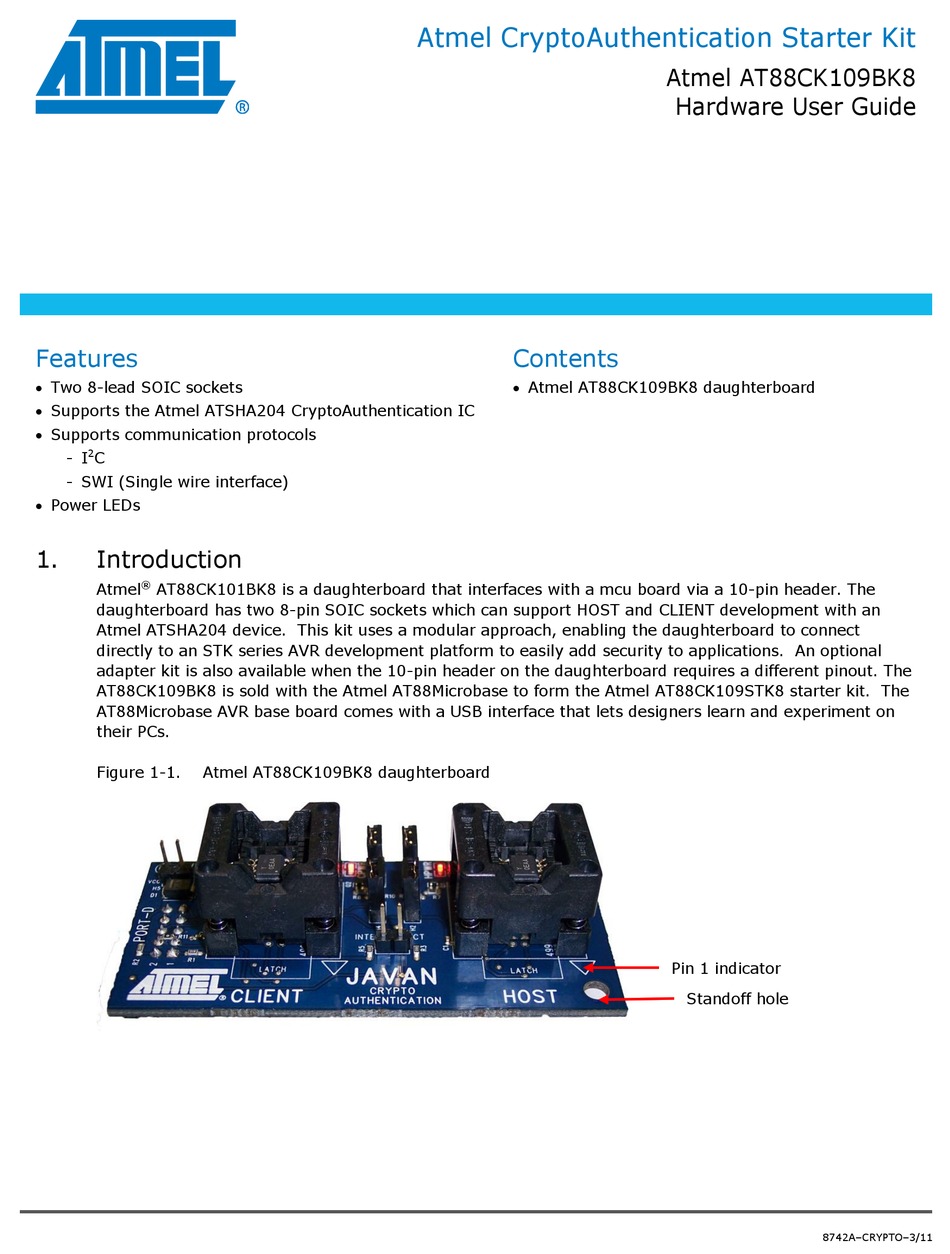

Figure 1-1.
Atmel AT88CK109BK8 daughterboard
Atmel CryptoAuthentication Starter Kit
Contents
Atmel AT88CK109BK8 daughterboard
Atmel AT88CK109BK8
Hardware User Guide
Pin 1 indicator
Standoff hole
8742A–CRYPTO–3/11
Advertisement
Related Manuals for Atmel AT88CK109BK8
Summary of Contents for Atmel AT88CK109BK8
- Page 1 10-pin header on the daughterboard requires a different pinout. The AT88CK109BK8 is sold with the Atmel AT88Microbase to form the Atmel AT88CK109STK8 starter kit. The AT88Microbase AVR base board comes with a USB interface that lets designers learn and experiment on their PCs.
-
Page 2: Board Configuration
1.2. Atmel AT88CK109STK8 starter kit The AT88CK109BK8 is sold with the AT88Microbase to form the AT88CK109STK8 starter kit. For additional information on the AT88Microbase, see Atmel doc8723A, AT88Microbase Hardware User Guide. Figure 1-2. The AT88CK109BK8 adaptor board with the Atmel AT88Microbase Board configuration 2.1. - Page 3 An optional adapter kit is also available when the 10-pin header on the daughterboard requires a different pinout. Figure 2-2. Atmel AT88CK301ADP adapter kit Table 2-2. 10-pin squid cable 10-pin squid cable black white gray purple blue green yellow orange brown Atmel AT88CK109BK8 Hardware User Guide 8742A–CRYPTO–3/11...
-
Page 4: Evaluation Board/Kit Important Notice
LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. No license is granted under any patent right or other intellectual property right of Atmel covering or relating to any machine, process, or combination in which such Atmel product or services might be or are used. - Page 5 Disclaimer: The information in this document is provided in connection with Atmel products. No lic ense, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
- Page 6 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Atmel AT88CK301ADP...
