Setting Up the AT91SAM7L-STK Rev. A Board

2.3

Layout

Figure 2-1.

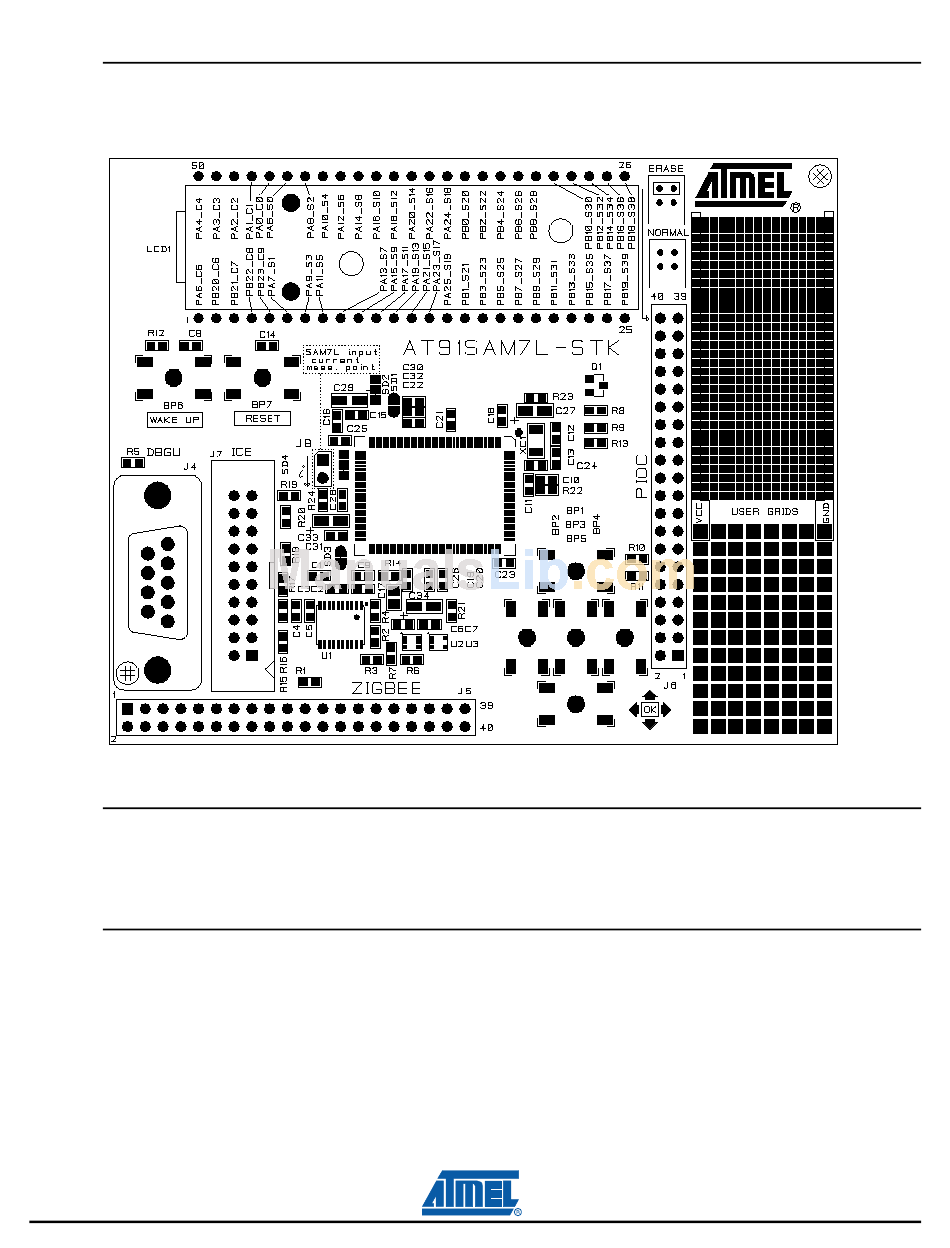

AT91SAM7L-STK Rev. A Board Layout

2.4

The AT91SAM7L-STK rev.A requires 3.0V (2.2V-3.6V) DC input. The power is supplied to the board via

2 AAA batteries or 3.0V VCC pads.

2.5

Please refer to the

on getting started with the AT91SAM7L-STK rev.A.

2-2

6409A–ATARM–30-Jun-08

AT91SAM product pages on the Atmel web

site, for the most up-to-date information

AT91SAM7L-STK Rev. A Starter Kit User Guide
