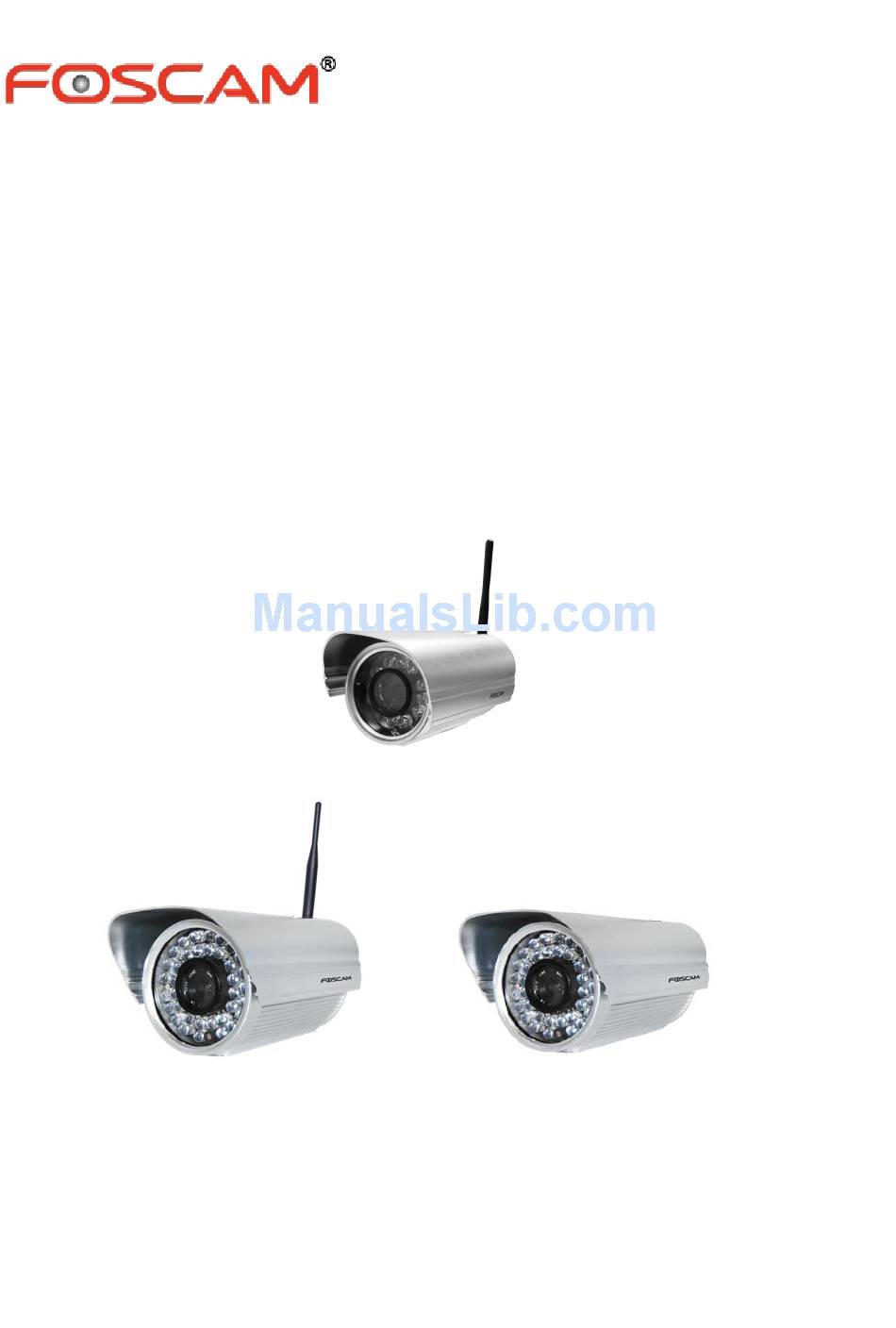

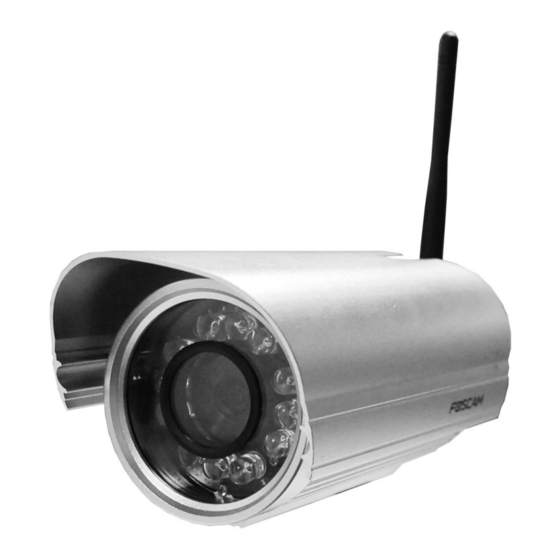

  • Page 1 User Manual User Manual Outdoor HD IP Camera Model: FI9804W Model: FI9805W Model: FI9805E...
  • Page 2 .foscam.co .foscam.co Model: FI9803EP Model: FI9803P Model: FI9903P Model: FI9900P/FI9800P Model: FI9900EP V3.2...

  • Page 3: Table Of Contents

    4.2.4 Log................................32 4.3 Basic Settings............................... 33 4.3.1 Camera Name............................33 4.3.2 Camera Time............................. 33 4.3.3 User Accounts............................34 4.3.4 Multi-Camera............................. 36 4.4 Network.................................. 40 4.4.1 IP Configuration............................40 4.4.2 Wireless Settings( FI9803P/FI9804W/FI9805W/FI9900P/FI9800P)..........42 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam...
  • Page 4 .foscam.co .foscam.co 4.4.3 PPPoE................................ 44 4.4.4 DDNS................................44 4.4.5 UPnP................................48 4.4.6 Port................................48 4.4.7 Mail Settings.............................. 50 4.4.8 FTP Settings.............................. 52 4.4.9 P2P (FI9803P/FI9803EP/FI9903P/FI9900P/FI9900EP/FI9800P)............53 4.5 Video..................................53 4.5.1 Video Settings............................53 4.5.2 On Screen Display............................55 4.5.3 Privacy Zone..............................55 4.5.4 Snapshot Settings.............................56 4.5.5 IR LED Schedule............................
  • Page 5 .foscam.co .foscam.co 6.3 Specification................................82 6.4 CE & FCC................................93 6.5 WARRANTY................................94 7 Obtaining Technical Support..............................97 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168 Tel: 2674 5668 Fax: 2674...

  • Page 6: Security Warning

    FOSCAM provides Phone APPs for Android and iPhone users, please search and install App on App Store and Google Play for iOS and Android devices, then you can view your camera anywhere, anytime on your smart mobile devices.

  • Page 7: Poe (Power Over Ethernet-Fi9805E/Fi9803Ep/Fi9900Ep)

    .foscam.co .foscam.co  PoE compliant with PoE standards IEEE 802.3af (FI9805E,FI9803EP,FI9900EP)  IR night vision, Range:20m (FI9803P, FI9800P, FI9900P, FI9900EP, FI9803EP, FI9804W)/ 30m (FI9805W, FI9805E,FI9903P)  Supports image snapshot  Supports dual-stream  Supports IR-Cut and the filter change automatically ...

  • Page 8: Packing Contents

    Front Panel for FI9804W/FI9805W/FI9805E Figure 1.1 1 WIFI Antenna: Wireless Antenna (FI9804W, FI9805W) 2 Infrared LED: 12 IR LEDs (FI9804W), 36 IR LEDs (FI9805W, FI9805E) 3 LENS: CMOS sensor with fixed focus lens 4 Induction IC Front Panel for FI9803EP/FI9803P...
  • Page 9 .foscam.co .foscam.co Figure 1.2 1 WIFI Antenna: Wireless Antenna (FI9803P) 2 Infrared Lamp Array 3 LENS: CMOS sensor with fixed focus lens 4 Induction IC Front Panel for FI9903P Figure 1.3 1 LENS: CMOS sensor with fixed focus lens 2 Infrared Lamp Array...

  • Page 10: Interface

    .foscam.co .foscam.co 1 WIFI Antenna: Wireless Antenna(FI9900P/ FI9800P) 2 Infrared LED: 30 IR LEDs 3 LENS: CMOS sensor 4 Induction IC 1.5.2 Interface Figure 1.4 alarm terminal block This network camera provides a I/O alarm terminal block which is used to connect to external input / output device.
  • Page 11 .foscam.co .foscam.co 1– input 2- input 3- output 4- output Figure 1.5 This camera supports I/O alarm, you can go to Settings-Alarm - I/O page to configure it. NOTE: Only FI9805E has this section. 2 LAN 10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected with various network devices, such as hub, router, etc.

  • Page 12: Bottom View

    1.5.3 Bottom View There are up to two labels located at the bottom of the camera, this is an important feature of original Foscam cameras. If your camera does not have labels, it may be a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services.

  • Page 13: Wall Installation

    Ensure that the rain or water will not reach the connector ports at the end of the pig tail wiring. These connectors are not weather-resistant. 1.8 The different features between the models involved Differences Model Wireless PoE (Power over Alarm in / out Audio input /output RS 485 Ethernet) FI9804W √ × × √ × × FI9805W √ × ×...

  • Page 14: Access The Ip Camera

    .foscam.co .foscam.co 2 Access the IP Camera 2.1 Hardware Connection & Software Installation Figure 2.1 1. Mount the antenna and make it stand vertically(Only for the device with external antenna). 2. Connect the camera to the LAN network (Router or Switch) via network cable.

  • Page 15: Access The Camera In Lan

    .foscam.co .foscam.co 2.2 Access the Camera in LAN 2.2.1 Wired connection The camera supports HTTP and HTTPS protocols, you can access the camera in two ways. (1) Http:// LAN IP + Http Port No. The default HTTP port NO. is 88. Double click the Search Tool icon to run, and it should find the camera’s IP address automatically after you plug in the network cable.

  • Page 16: Wireless Connection

    .foscam.co .foscam.co Figure 2.4 2.2.2 Wireless connection Some models support EZLink wireless connection , please refer to the Quick Installation Guide. 2.3 Access the Camera in WAN 2.3.1 Static IP Addresses Users who have static IP addresses do not need to set DDNS service settings for remote access. When you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from the Internet using the WAN IP address and port number.

  • Page 17: Remote Access

    .foscam.co .foscam.co Figure 2.5 Access your IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in your standard browser. For example, you would enter http:// 183.37.28.254:88 2.3.2 Remote Access...
  • Page 18 .foscam.co .foscam.co Select Yes and click Save. Figure 2.7 Click Enable DDNS and click Save. The content in the Manufacture’s DDNS column is the domain name of your camera. Figure 2.8 You can see the port of your camera here. If you want to set Remote Access for several cameras on the same network, you will need to change the HTTPS port for each camera.
  • Page 19 .foscam.co .foscam.co Figure 2.10  If there is no UPnP function in your router： You need to manually add port(HTTPS port) forwarding, refer to the following steps. You need go to the “Forwarding > Virtual Servers” panel for setup. Click Add New.

  • Page 20: Using The Vlc Player

    .foscam.co .foscam.co Here you have finished the Port Forwarding setup. Figure 2.13 5. Now you can access your IP camera by https://domain name: HTTPS port via the Internet. 2.4 Using the VLC player This camera supports RTSP streaming, here you can view the camera using VLC player.
  • Page 21 .foscam.co .foscam.co Figure 2.14 Figure 2.15 Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview. Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel:...

  • Page 22: Ip Camera Connection To The Server

    .foscam.co .foscam.co Figure 2.16 Figure 2.17 If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding. NOTE If you modify the camera’s username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC.

  • Page 23: Surveillance Software Gui

    .foscam.co .foscam.co 3 Surveillance Software GUI Please refer to the section 2.1 if you install the camera for the first time. You can start to learn about software operation after finish quick installation. 3.1 Login Window Figure 3.1 Section1 Enter the Username and password The default administrator username is admin with no password, please change the password at first using and prevent unauthorized users login the camera.
  • Page 24 .foscam.co .foscam.co modification. You will now use the new username and password to login the camera in the future. Figure 3.2 After logging in for the first time, you will go to “Setup Wizard”automatically. Here you can set the basic parameters of camera, such as camera name, camera time, wireless settings, IP configuration.
  • Page 25 .foscam.co .foscam.co System Time: Select the time zone you need to set the date, time,format, etc. Figure 3.5 Wireless networks: Click “Scan”, find the SSID of your wireless router, select and enter the password. Figure 3.6 IP: Set IP address of the camera. You could choose to obtain an IP automatically or set the IP address according to your needs.

  • Page 26: Surveillance Window

    .foscam.co .foscam.co Figure 3.7 NOTE: It needs about 1 minute to connect the camera to your router. 3.2 Surveillance Window Figure 3.8 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168...
  • Page 27 .foscam.co .foscam.co Section1 FOSCAM Logo/ LiveVideo / Settings buttons : FOSCAM LOGO : Path to surveillance window. Click this button and back to the surveillance window : Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel and do advanced settings.
  • Page 28 .foscam.co .foscam.co Figure 3.10 HDR(Only FI9900P,FI9900EP): HDR stands for High Dynamic Range. It usually refers to the method of capturing images having “greater dynamic range between the lightest and darkest areas of an image than current standard digital imaging methods or photographic methods”. You can select “on” from the dropdown list under sunlight or with bright background.
  • Page 29 .foscam.co .foscam.co 1------Up control button, 2------Down control button, 3------Left control button, 4------Right control button, Click this button and go to center Section5 Cruise settings ( only F9805E) If via RS485 interface to connect an external PT device, you can use this feature.
  • Page 30 .foscam.co .foscam.co Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule. Auto: Select it and the camera will adjust the infra led (on or off) automatically. Manual: Select it and turn off the infra led manually.
  • Page 31 .foscam.co .foscam.co Go to Settings- >Record-> Storage Location panel. 7------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen. Double click again and exit full-screen. Onscreen Mouse Control Right click the mouse and you can adjust the screen ration, full screen and Zoom up.
  • Page 32 .foscam.co .foscam.co Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen. Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size.

  • Page 33: Advanced Camera Settings

    .foscam.co .foscam.co 4 Advanced Camera Settings Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings. 4.1 Setup Wizard The way to set it,you could refer to section 3.1. Figure 4.1 4.2 Device Status Device Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera.

  • Page 34: Device Status

    .foscam.co .foscam.co MAC ID sticker is found at the bottom of the camera. Camera Time: The system time of the device. Click Basic Settings and go to Camera Time panel and adjust the time. System Firmware Version: Display the System Firmware version of your camera.

  • Page 35: Basic Settings

    .foscam.co .foscam.co Click the page number and go to the corresponding page to see more logs . Fill in one page number, click Go button and go to the corresponding page . Figure 4.5 Reboot the camera and clear the log records.

  • Page 36: User Accounts

    .foscam.co .foscam.co Figure 4.7 Time Zone: Select the time zone for your region from the drop-down menu. Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server. Choose the one that is closest to your camera.
  • Page 37 .foscam.co .foscam.co old password and the new password, lastly click modify to take effect. Figure 4.9 How to add account ? Select one blank column, then enter the new user name, password and privilege, last click Add to take effect.

  • Page 38: Multi-Camera

    The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window.
  • Page 39 .foscam.co .foscam.co 1 Click it, camera model, alias, host and HTTP Port will be filled in the following boxes automatically . 3 Click Add to take effect . 2 Enter the User name and password of the 2nd camera .
  • Page 40 .foscam.co .foscam.co Figure 4.14 Figure 4.15 Add cameras in WAN If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 4.4.4)
  • Page 41 .foscam.co .foscam.co Use DDNS domain name and port to login . Make sure each camera you need add could login with DDNS name and port . Figure 4.16 Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name, port number.

  • Page 42: Network

    .foscam.co .foscam.co 3----- Fill in the 2nd camera’s DDNS host not LAN IP 4 ---- Enter the 2nd camera’s user name and password 5---- Click Add button and to take effect NOTE : Here the Host must be entered as the second camera’s DDNS domain name, not its LAN IP.
  • Page 43 .foscam.co .foscam.co Figure 4.19 Changing settings here is the same as using the Equipment Search Tool. It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area connection as follows: Control Panel--Network Connections--Local Area Connections --Choose Support--Details.

  • Page 44: Wireless Settings( Fi9803P/Fi9804W/Fi9805W/Fi9900P/Fi9800P)

    If you don’t know the DNS server, you can use the same settings as the Default Gateway. 4.4.2 Wireless Settings( FI9803P/FI9804W/FI9805W/FI9900P/FI9800P) Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left side of the screen, then click “Wireless Settings.”...
  • Page 45 .foscam.co .foscam.co Click the Scan button to search for wireless networks. Click the Page number to see other wireless networks devices if there are more than 10. Figure 4.22 Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network, such as the name and the encryption, will be filled into the relevant fields automatically.

  • Page 46: Pppoe

    Figure 4.24 4.4.4 DDNS FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. FOSCAM domain name Here take cp4911.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you can see the domain name.
  • Page 47 .foscam.co .foscam.co Figure 4.25 Now you can use http:// Domain name + HTTP Port to access the camera via internet. Take hostname cp4911.myfoscam.org and HTTP Port no. 8000 for example, the accessing link of the camera via internet would be http://cp4911.myfoscam.org:8000 Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.
  • Page 48 .foscam.co .foscam.co Please register an account step by step according to instructions on www.no-ip.com After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email.
  • Page 49 NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.

  • Page 50: Upnp

    .foscam.co .foscam.co ③ Use domain name to access the camera via internet After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000for example, the accessing link of the camera via internet would be http:// ycxgwp.no-ip.info:2000...
  • Page 51 .foscam.co .foscam.co Figure 4.32 Another way to change the HTTP port no. Step 1: Open the Equipment Search Tool, select the camera you would like to change the port of, right click on the IP address, and click on ”Network Configuration”, this brings up the network configuration box .

  • Page 52: Mail Settings

    .foscam.co .foscam.co Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it was changed to 2000, so we see http://192.168.1.105:2000 in Equipment Search Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.1.105:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address.
  • Page 53 .foscam.co .foscam.co 1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.

  • Page 54: Ftp Settings

    .foscam.co .foscam.co 4.4.8 FTP Settings If you want to upload record images to your FTP server，you can set FTP Settings. Figure 4.38 Figure 4.39 FTP server: If your FTP server is located on the LAN, you can set as Figure 4.38.

  • Page 55: P2P (Fi9803P/Fi9803Ep/Fi9903P/Fi9900P/Fi9900Ep/Fi9800P)

    .foscam.co .foscam.co Click Save to take effect. Click Test to see if FTP has been successfully configured. 4.4.9 P2P (FI9803P/FI9803EP/FI9903P/FI9900P/FI9900EP/FI9800P) Access the camera by smart phone (Android or iOS operating system),please refer to the Quick Installation Guide. First of all, you need to open the P2P function of the camera at “Settings-->Network-->P2P.”...
  • Page 56 .foscam.co .foscam.co Figure 4.41 Enhanced Night video Definition: The camera will automatically drop the frame to extend the recording time in the night. Stream Type: There are four types to identify different streams you have set. If select the HD Mode, the clearer video will become, and it will take up more bandwidth;...

  • Page 57: On Screen Display

    .foscam.co .foscam.co VBR: Variable Bit Rate, the camera will change the video bit rate according to the situation, but will not more than the maximum parameter "Bit Rate". LBR: Low Bit Rate. If you can select the LBR, then you can slide the scroll bar to choose percentage of the bit rate.

  • Page 58: Snapshot Settings

    .foscam.co .foscam.co The privacy zone Figure 4.44 Click OK button and return to the Privacy Zone page, click Save to take effect. Back to the surveillance window, you can see the privacy area as the following picture: Figure 4.45 4.5.4 Snapshot Settings On this page you can set the snapshot pictures’...
  • Page 59 .foscam.co .foscam.co Figure 4.46 Manual snap Quality: Low, Middle and High. The higher the quality, the picture will be clearer. Pictures Save To: FTP or SD card. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the FTP or SD card automatically.

  • Page 60: Ir Led Schedule

    .foscam.co .foscam.co 4.5.5 IR LED Schedule On this page you can set the schedule time for switching IR LED lights. When parameter Mode is set to the Schedule on the Live Video window, At these schedule time, the IR LED lights will be turned off.
  • Page 61 .foscam.co .foscam.co To enable motion detection, follow the steps below: 1 Enable Motion detection 2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity. 3 Trigger interval--- The interval time between two motion detections. Here supports 5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s.

  • Page 62: Alarm Schedule

    .foscam.co .foscam.co Figure 4.49 6 Alarm Schedule ① Alarm anytime when motion is detected Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will alarm.

  • Page 63: Sound Detection

    .foscam.co .foscam.co Figure 4.51 ③ Press the left mouse and drag it on the time boxes, you can select the serial area, Figure 4.52 7 Click Save button to take effect. When the motion is detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators.

  • Page 64: Io Alarm(Only Fi9805E)

    .foscam.co .foscam.co Figure 4.53 If the Sensitivity is set to “High”, the camera will detect the sound whose more than 55db. If the Sensitivity is set to “Medium”, the camera will detect the sound whose more than 65db. If the Sensitivity is set to “Low”, the camera will detect the sound whose more than 75db.
  • Page 65 .foscam.co alarm,etc. Figure 4.54 There is an IO alarm input/output lines in the FOSCAM camera tails. Enable IO alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector, etc.). I/O Alarm has four ports: ...

  • Page 66: Record

    .foscam.co .foscam.co Setting IO alarm On the IO page, Enable the I/O alarm, select the “Send E-mail”and ”Snapshot” before you have configured the mail and FTP. If an IO alarm is triggered and IO alarm output device will always alarm (sound alarm is issued a warning sound, alarm lights in flash etc.).

  • Page 67: Alarm Record

    .foscam.co .foscam.co 4.7.2 Alarm Record Figure 4.57 4.7.3 Local Alarm Location On this page you can enable local alarm record, and select the local alarm record time. Figure 4.58 4.7.4 Schedule Recording When the video is selected as FTP, the device supports scheduled recording.
  • Page 68 .foscam.co .foscam.co Figure 4.60 When the video is selected as SD card, the device supports pumping frame recording.(FI9803EP, FI9900P,FI9900EP support SD card). Figure 4.61 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax:...

  • Page 69: Sd Card Management(Fi9803Ep/Fi9900P/Fi9900Ep)

    .foscam.co .foscam.co Figure 4.62 Record frame: There are six frame selections, such as 1/30, 4/30, 8/30, 15/30, 24/30, 30/30. Recommended default is 4/30. The greater the Frame rate is, the sharper picture quality is, and the greater of storage space is, the shorter the storage time is.

  • Page 70: Ptz(Only Fi9805E)

    .foscam.co .foscam.co Figure 4.63 The default storage path of alarm record files is SD card, when the available size of SD card is less than 256M, the old record files will be deleted automatically. 4.8 PTZ(only FI9805E) This page will allow you to change the pan/tilt speed and do RS485 settings.（Only FI9805E have this feature）...

  • Page 71: Firewall

    .foscam.co .foscam.co Figure 4.65 4.9 Firewall This section explains how to control the access permission by checking the client PC’s IP addresses. It is composed of the following columns: Block access from these IP addresses and Only allow access from these IP addresses.

  • Page 72: Back-Up& Restore

    .foscam.co .foscam.co the camera to default settings and reboot the device. 4.10.1 Back-up& Restore Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future use. Click Browse and select the parameters file you have stored, then click Submit to restore the restore the parameters.
  • Page 73 .foscam.co .foscam.co Figure 4.68 Upgrade Firmware by Equipment Search Tool Double click the Equipment Search Tool shot icon , select the Camera IP that you want to upgrade the firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade.

  • Page 74: Patch Installation

    .foscam.co .foscam.co Figure 4.70 CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don’t upgrade the firmware unnecessarily. Your camera may be damaged if mis-configured during an upgrade. NOTE: 1) Don’t upgrade the firmware through the web UI in WAN, or else the upgrade may be failed.

  • Page 75: Factory Reset

    .foscam.co .foscam.co Figure 4.71 4.10.4 Factory Reset Click Factory Reset button and all parameters will return to factory settings if selected. The default administrator username is admin with a blank password. Figure 4.72 4.10.5 Reboot Click Reboot to reboot the camera. This is similar to unplugging the power to the camera.

  • Page 76: Playback(Fi9803Ep/Fi9900P/Fi9900Ep)

    .foscam.co .foscam.co 5 Playback(FI9803EP/FI9900P/FI9900EP) On this page you can view the record files stored in the SD card. Section 1 Define the Record files time and Type : The storage path of record files : Here supports three types: current day, current month and All records. Another way, select the time on the time&date manually.

  • Page 77: Appendix

    .foscam.co .foscam.co Section 2 Search record files On this panel you can see all record files satisfy the conditions you set. Section 3 Play/Stop/Audio/Full screen buttons Please select one record file before use these buttons. Click this button to play the record files...
  • Page 78 .foscam.co .foscam.co Figure 6.2 Figure 6.3 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168 Tel: 2674 5668 Fax: 2674 5168...
  • Page 79 .foscam.co .foscam.co Figure 6.4 Figure 6.5 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168 Tel: 2674 5668 Fax: 2674 5168...

  • Page 80: Uninstall The Activex Of Firefox Browser, Google Chrome And Ie Chrome

    .foscam.co .foscam.co Figure 6.6 6.1.2 Uninstall the ActiveX of Firefox browser, Google Chrome and IE Chrome. Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168 Tel: 2674 5668 Fax: 2674 5168...
  • Page 81 .foscam.co .foscam.co Figure 6.7 Figure 6.8 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168 Tel: 2674 5668 Fax: 2674 5168...

  • Page 82: I Have Forgotten The Administrator Password

    .foscam.co .foscam.co Figure 6.9 6.1.3 I have forgotten the administrator password To reset the administrator password, you had better unplug the network cable firstly. After that, press and hold down the RESET BUTTON about 5 seconds. Releasing the reset button, the password will turn to the factory default.

  • Page 83: Can't Access Ip Camera In Internet

    .foscam.co .foscam.co browser--Tool--Internet Proper--Security--Custom Level--ActiveX control and Plug-ins. Three options of front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. As follows: Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plug-ins Figure 6.10...

  • Page 84: Upnp Always Failed

    Make sure broadcast your SSID; use the same encryption for router and camera. 6.2 Default Parameters Default network Parameters IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically DDNS: Embedded FOSCAM DDNS Service Username and password Default admin username: admin with a blank password 6.3 Specification ITEMS FI9803P...
  • Page 85 .foscam.co .foscam.co Flip image flip and mirror Infrared mode Automatic or manual Night visibility With 1 Infrared Lamp Array, Night Vision Range up to Ethernet One 10/100Mbps RJ45 port Wireless Standard IEEE 802.11b/g/n IEEE802.11b: 11Mbps(Max.); Network Data Rate IEEE802.11g: 54Mbps(Max.);...
  • Page 86 .foscam.co .foscam.co Diagonal :75° Image Compression H.264 Image Frame Rate 30fps(60Hz), 25fps(50Hz), downward adjustable Resolution 720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) Stream dual stream Video Image adjustment The hue, brightness, contrast, saturation, sharpness are adjustable Flip image...
  • Page 87 .foscam.co .foscam.co Lens Type Glass Lens focal length f:4mm，6mm/8mm/12mm Opention Lens Aperture F1.2 Angle of View Horizontal:70° Diagonal :75° Image Compression H.264 Image Frame Rate 30fps(60Hz), 25fps(50Hz), downward adjustable Resolution 1080P(1920x1080),720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) Video...
  • Page 88 .foscam.co .foscam.co ITEMS FI9804W Image Sensor Sensor High Definition Color CMOS Sensor Display Resolution 1.0 Megapixels Min. Illumination 0 Lux (With IR Illuminator) Lens Type Glass Lens focal length f:2.8mm Lens Aperture F1.2 Angle of View Horizontal:70° Diagonal :75° Image Compression H.264...
  • Page 89 .foscam.co .foscam.co Physical Gross Weight 1186.8g Net Weight 870g Operating -20°C~ 60°C (-4°F ~ 140°F) Temperature Operating Humidity 10% ~ 80% non-condensing Environment Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Certification CE, FCC, RoHS...
  • Page 90 .foscam.co .foscam.co 2.0GHZ or above (suggested 3.0GHz) Memory Size 256MB or above (suggested 1.0GHz) Display Card 64M or above Microsoft Windows 2000/XP, Vista, 7; Supported OS Mac OS Requirements iOS, Android IE8 and above version or compatible browser, Firefox, Browser...
  • Page 91 .foscam.co .foscam.co I/O alarm interface External Input / output terminal block one RS - 485 port, support of transparent channel Control Interface transmission PoE Standard IEEE 802.3af Input Voltage DC 36V~DC 57V Output Voltage DC 12V/2.0A Output Power 15.4W (Max.)

  • Page 92: System Requirements

    .foscam.co .foscam.co The hue, brightness, contrast, saturation, sharpness are Image adjustment adjustable Flip image flip and mirror Infrared mode Automatic or manual Night visibility With 30pcs IR-LED, Night Vision Range up to 20m Input/Output External RCA interface for two-way audio...
  • Page 93 .foscam.co .foscam.co ITEMS FI9900EP Sensor High Definition Color CMOS Sensor Image Sensor Display Resolution 1920 x 1080 (2.0M Pixels) Min. Illumination 0 Lux (With IR Illuminator) Lens Type Glass Lens focal length f:2.8mm Lens Aperture F1.2 Angle of view Horizontal:96°, Diagonal :102°...
  • Page 94 .foscam.co .foscam.co Operating Temperature -10°C~ 60°C (14°F ~ 140°F) Operating Humidity 10% ~ 80% non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Certification FCC、IC、CE、WEEE、IP66 Warranty Limited 2-year warranty ITEMS FI9800P Image Sensor Sensor...

  • Page 95: Ce & Fcc

    .foscam.co .foscam.co Apple Safari. Motion Detection Alarm via E-Mail, upload alarm snapshot to FTP Other Features Privacy Block Set privacy area manually User Accounts Three levels user role Firewall Supports IP Filtering Reset Reset button is available Power Supply DC 12V/1.0A...

  • Page 96: Warranty

    No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications.
  • Page 97 .foscam.co .foscam.co Return Procedures Please read FOSCAM warranty policy & policy of your reseller first before sending items back to  point-of-purchase.  Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA) number before returning the product. If the product you received is suspected to be defective and the product warranty has not expired, The RMA number will allow your reseller to track your return much easier and help them expedite processing your request.
  • Page 98 FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it without incurring any liability.

  • Page 99: Obtaining Technical Support

    User’s Guide has not answered. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, please contact our service department: tech@foscam.com...
